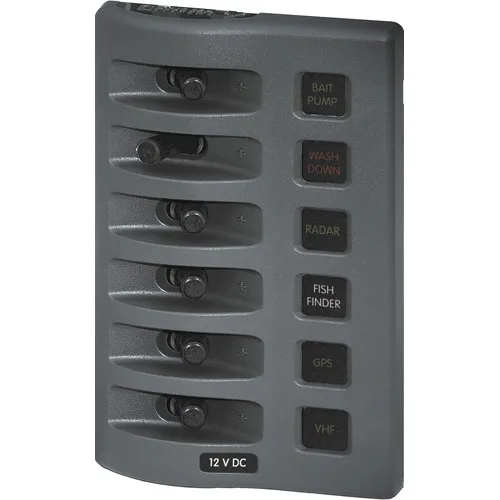

Name: WeatherDeck 12V DC Waterproof Fuse Panel - Gray 6 Positions
SKU: 1162059

Product Details ＋

Panel front rated IP67 when properly mounted with watertight mounting gasket

IP67 ñ protected against immersion up to 1 meter for 30 minutes

Designed for flybridge and open cockpit applications

Independent label backlighting circuit for remote switching and dimming

Available in 2, 4, 6, and 8 circuit models

Each panel can be mounted in four different orientations

Integrated ATO/ATC fuse based circuit protection

Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:
Weatherproof: Waterproof
Positions: 6
Nominal Voltage: 12V DC
Circuit Protection: Fuse
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 90A
Backlit Label: Bicolored LED
Backlighting Amperage: 10mA /Illuminated Circuit
Backlighting Voltage: 12V DC
Material: Reinforced Polycarbonate
Height: 6.00in (152.4 mm)
Width: 3.88in (98.55 mm)
Depth: 2.50in (63.5 mm)
Weight: 1.15lb (0.52 kg)
