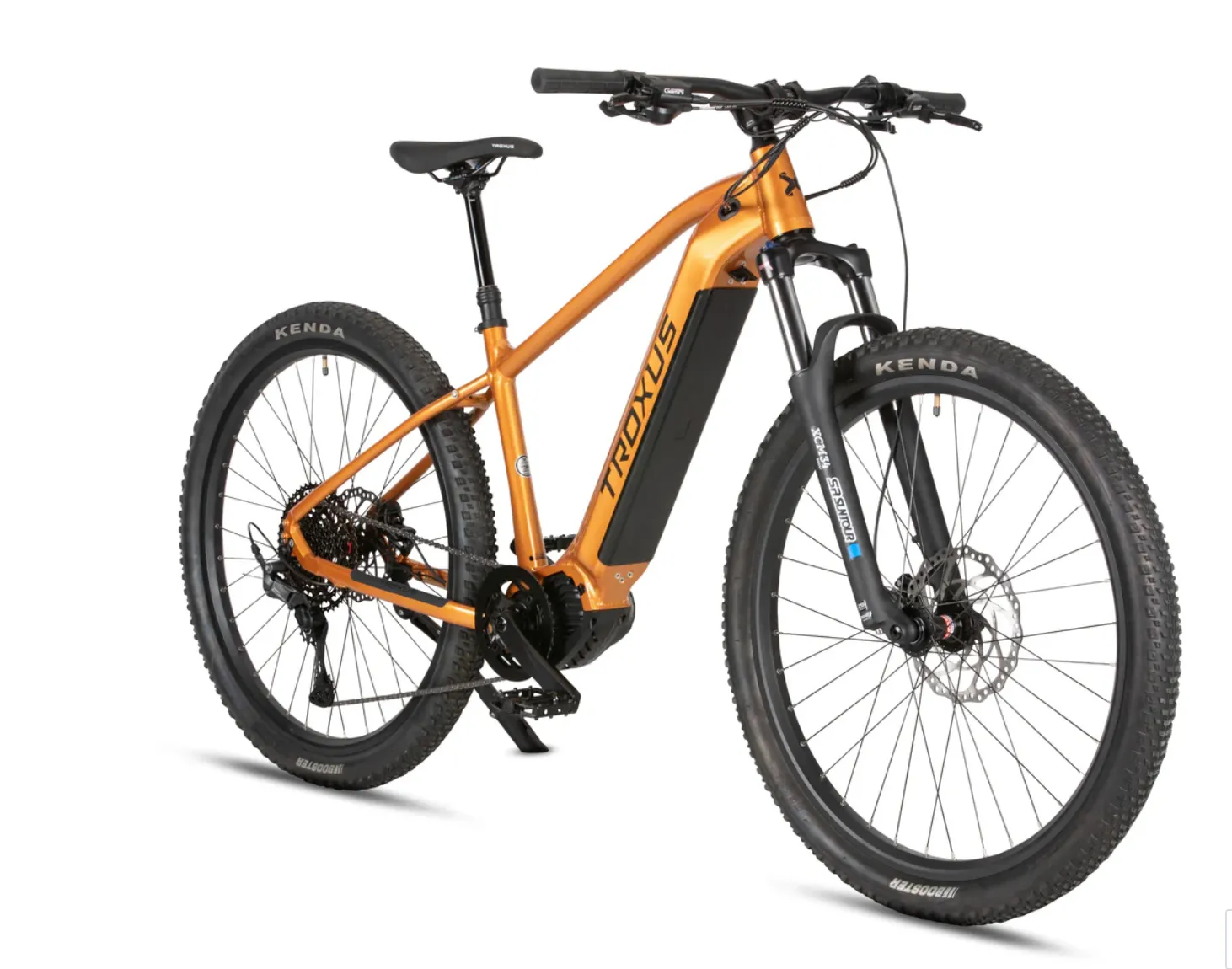

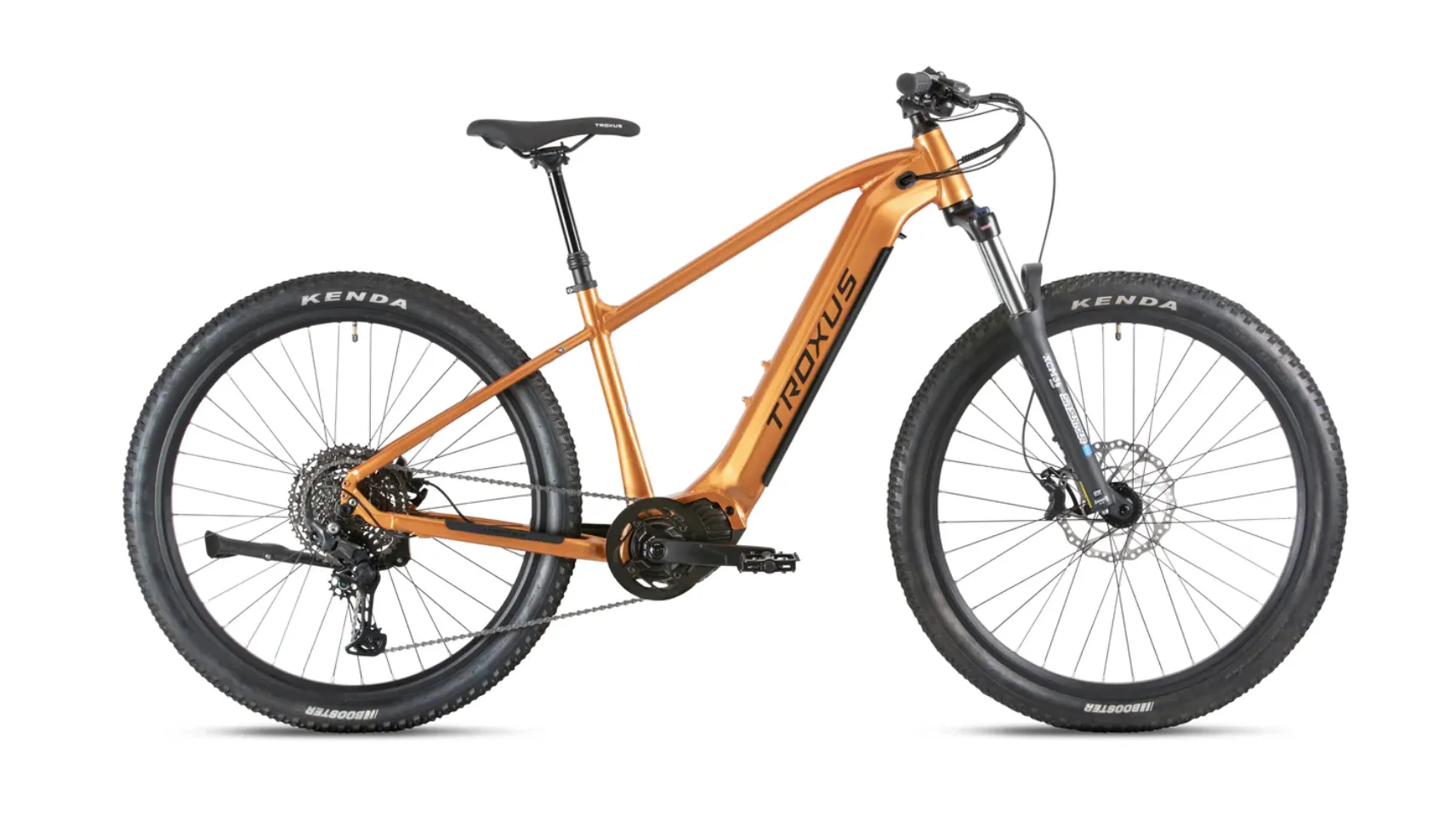

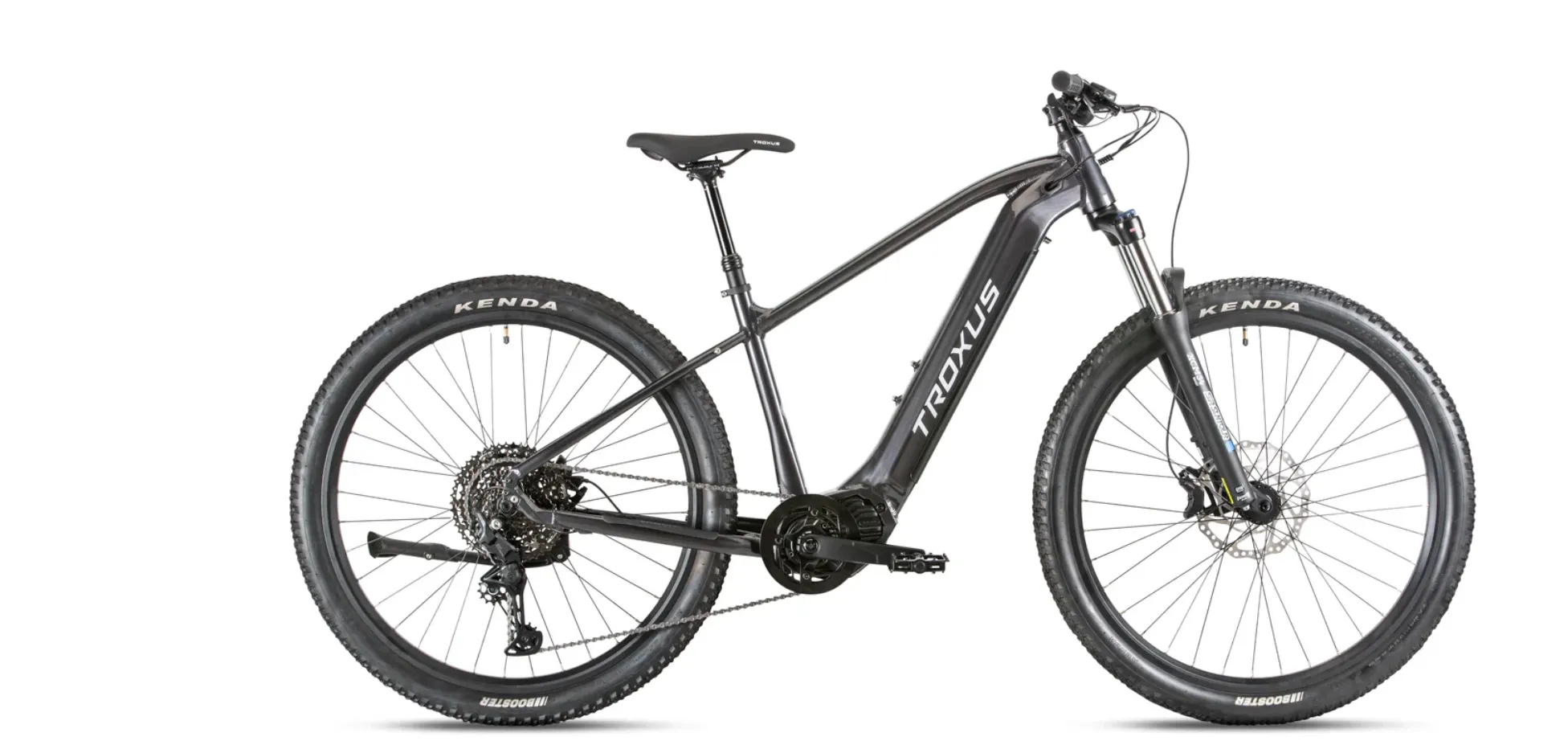

Troxus T-XC MidDrive All Terrain Mountain Electric Bike
Playful and capable trail geometry makes the T-XC the perfect companion for offroad adventures, and the Bafang® 500W mid-drive motor and 15Ah battery deliver an impressive range of up to 60 miles. Go farther and explore more of your favorite trails and outdoor playground.

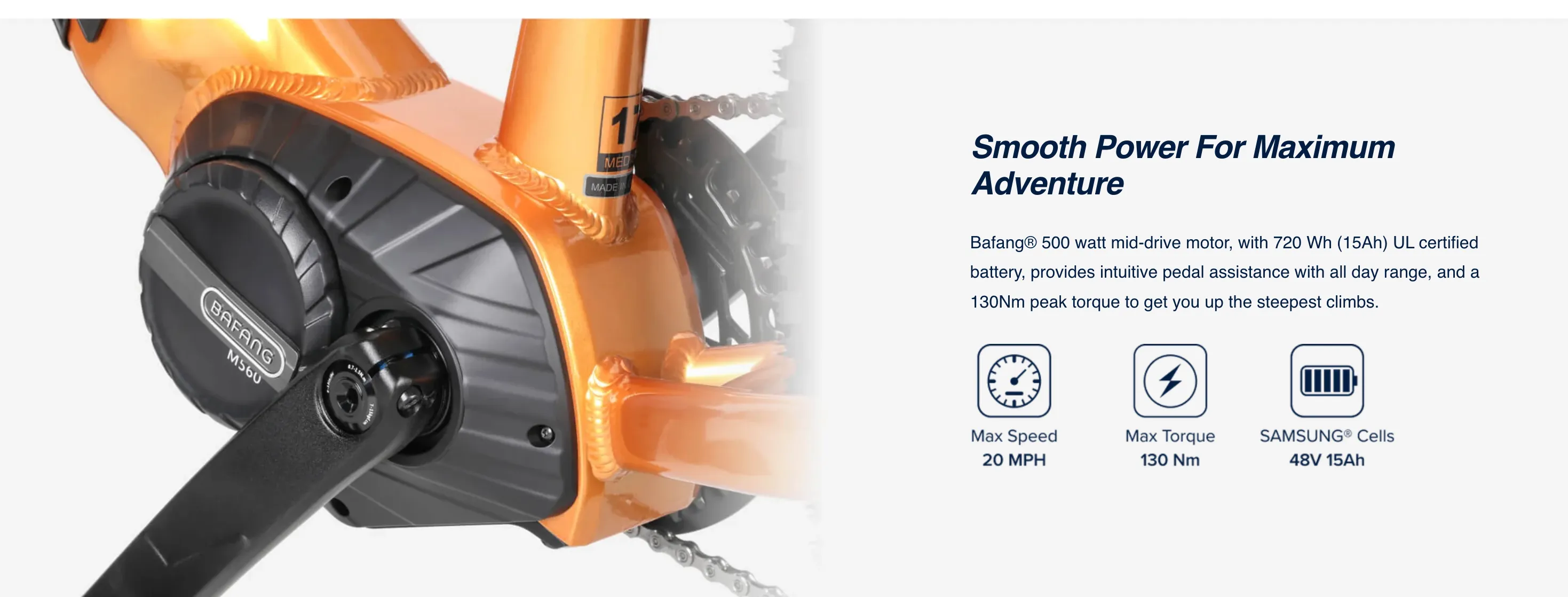

Motor
Bafang® 48V/500W Mid-Motor, 130Nm Max. Torque
Battery
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Display
Bafang® Color Display, Bluetooth, w/ Multi-Function Remote
Throttle
Optional Thumb Throttle on Handlebar
Sensor
Torque & Cadence Sensors included In Mid-Motor
Pedal Assist
5-Level Pedal Assist (Eco, Tour, Sport, Sport , Boost)
Charger
3A / 100-240V Input / 54.6V Output
Lights
N/A
Controller
Inside Motor
Components
Frame
Aluminum Frame
Fork
Suntour® XCM 34 Suspension Fork, 120mm Travel, 15mm Thru-Axle
Chain
Shimano® 11-Speed
Crankset
Aluminum, Bafang® 36T, w/ Single Alloy Chainguard, Square Taper, 170mm

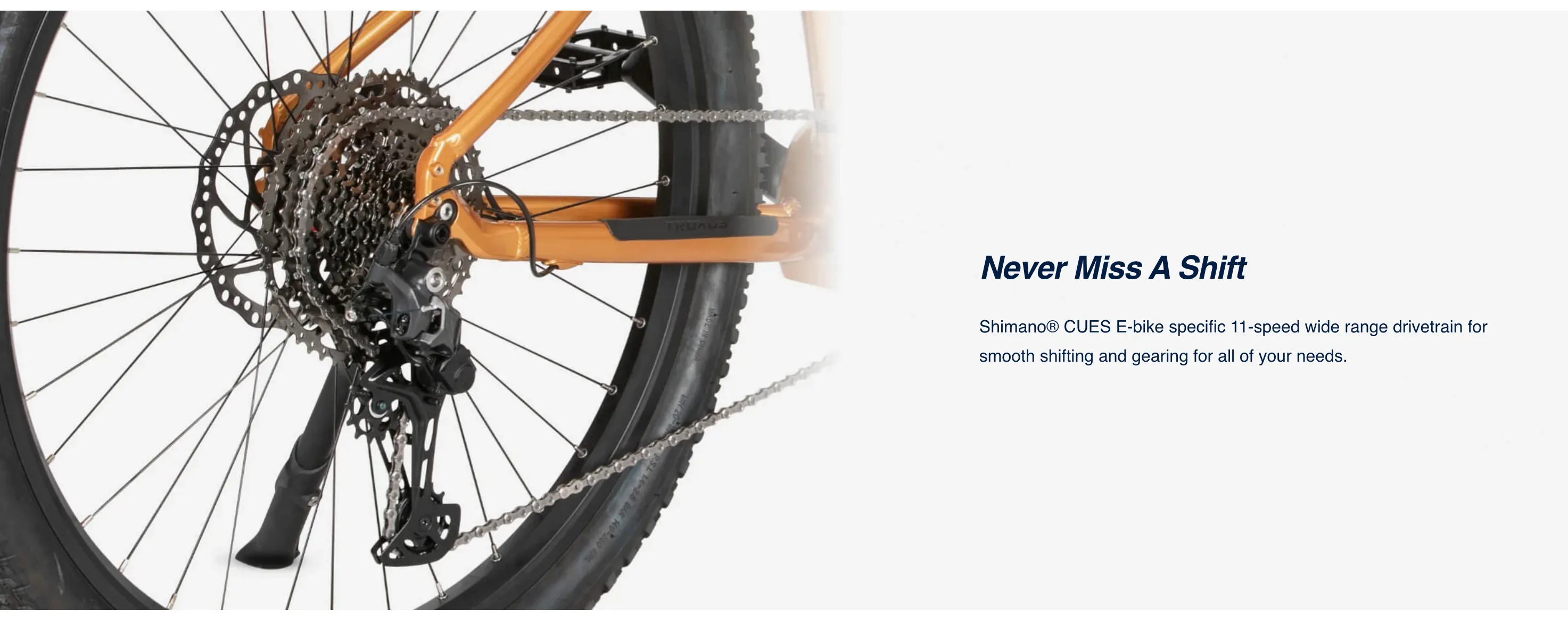

Rear Derailleur
Shimano® CUES, SGS, 11-Speed
Cassette
Shimano® 11-Speed,11-50T
Shifter
Shimano® CUES 11-Speed
Bottom Bracket Set
Included In Motor
Tires
KENDA® MTB Booster 29"x2.4"
Front Hub
Novatech, Sealed Bearing, Thru-Axle 15mm, 36H, Boost 110mm
Rear Hub
Novatech, Sealed Bearing, Thru-Axle 12mm, 36H, Boost 148mm, Cassette Body
Rims
Alloy, Double Wall, 30mm Inner Width, 36H
Spokes
Stainless 13G
Brakes
Tektro® Hydraulic, w/ Brake Sensors
Rotors
203mm / 180mm
Saddle
Troxus MTB
Seat Post
30.9mm, Zoom® Dropper Post 125/150mm Drop
Seat-Post Clamp
Alloy, 35mm
Stem
Alloy, 3D forged, 50mm
Handlebar
Alloy, 31.8mmx760mm, 25mm Rise
Grips
Velo Sport w/ Lock Ring
Pedals
Aluminum Platform
Headset
Threadless Internal, Tapered 1.5"
Speed & Range & Weight & Supports
Max Speed
Up To 20 MPH
Range
Up To 60 Miles Per Charge
Weight Limit
Maximum Load: 300 lbs
Net Weight
60.5 lbs
Rack
N/A
Fenders
N/A
Kickstand
Kickstand
Packaged
Above All Accessories Are Included.
