Product Details

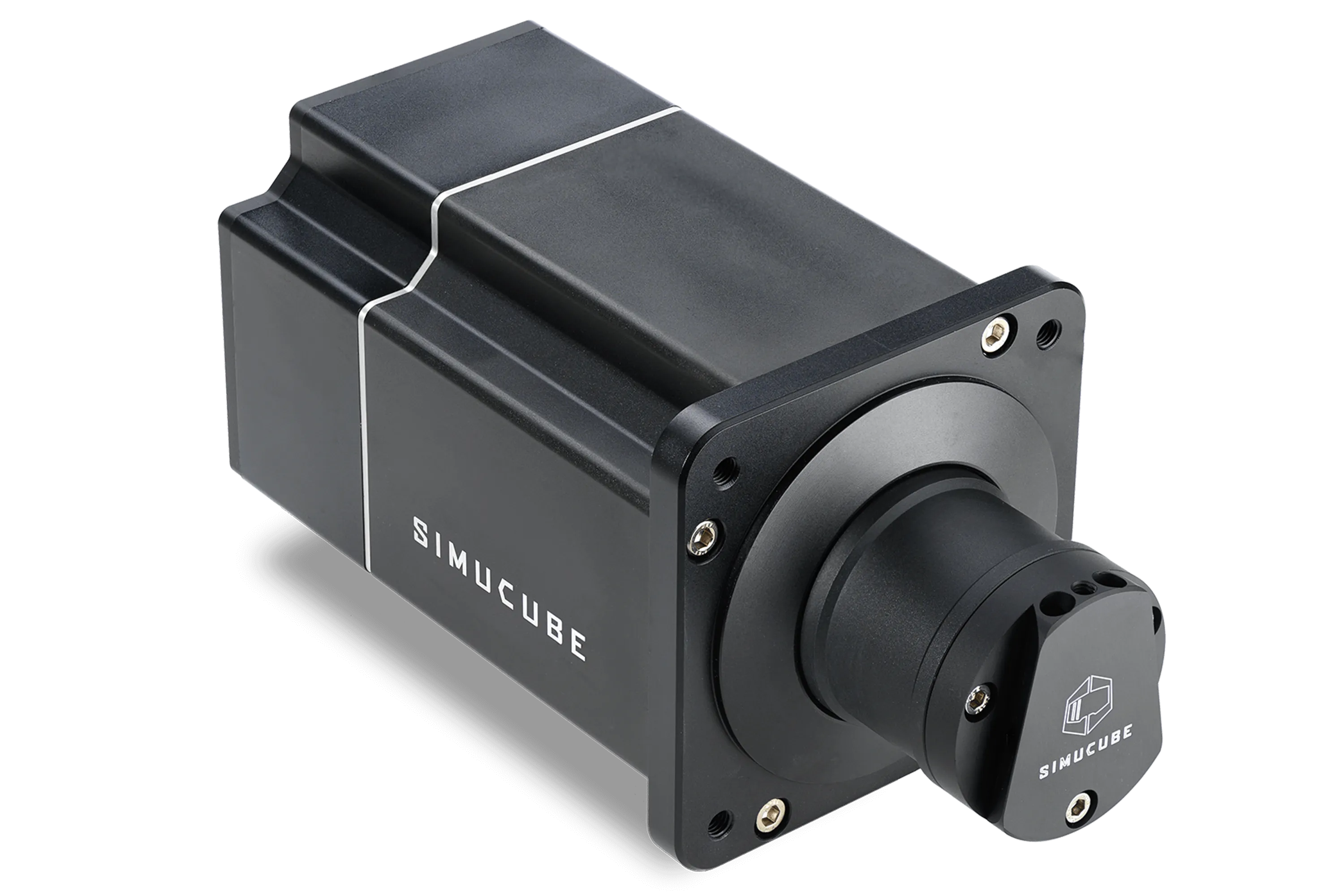

The Simucube 2 Pro Direct Drive System R2 raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. With 25Nm of torque available, the Pro is capable of providing a high level of immersion for any car or track combination. Ideal for professional sim racer and serious enthusiasts, the Pro offers an incredibly high torque response rate, which is also adjustable and amazing feedback clarity.

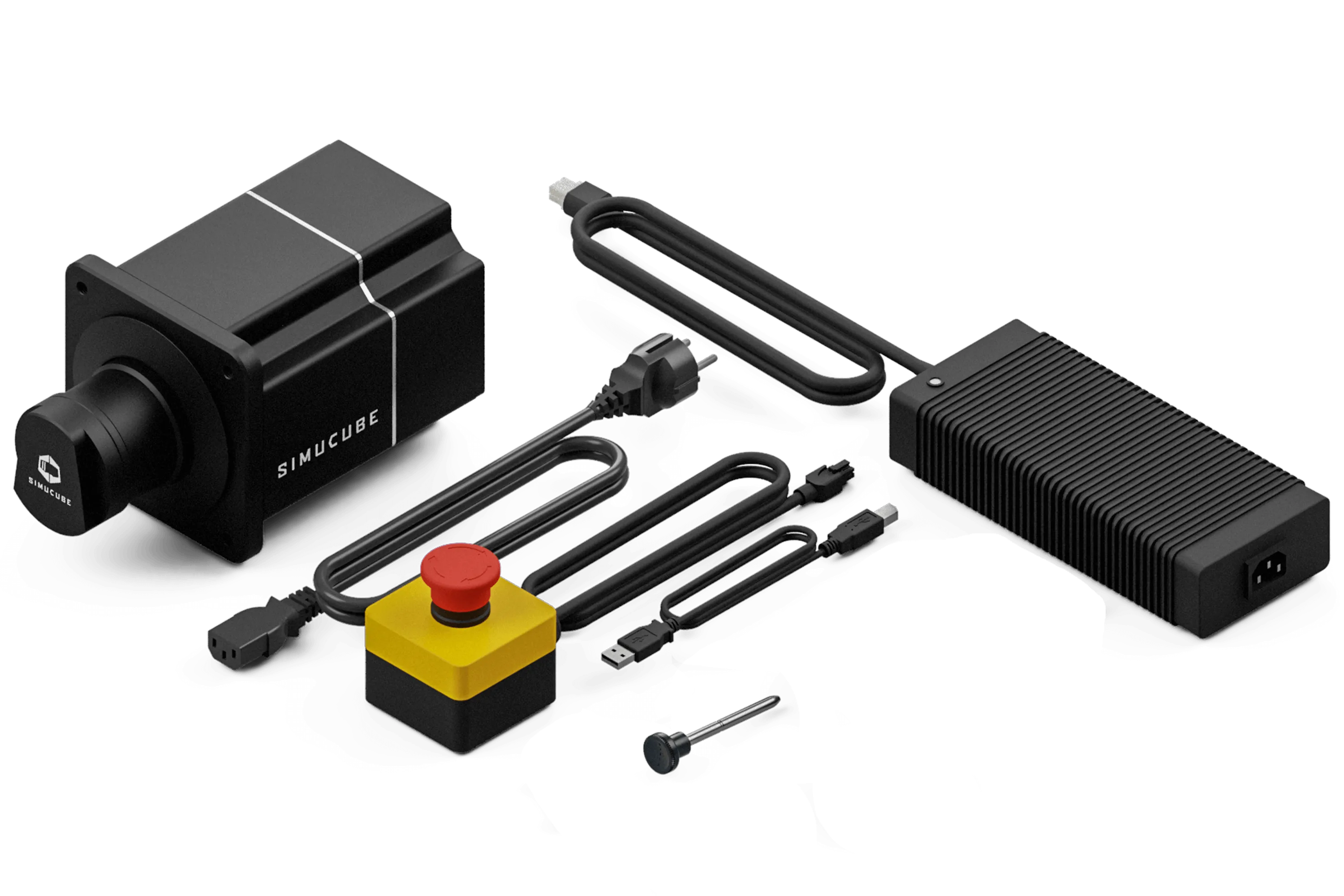

  • The Pro R2 comes with a single 450W power cable
  • The ultra low latency will give you incredible feel, you can feel and then correct those small slides sooner, putting you a step ahead of your opponents
  • A high efficiency direct drive motor and clever electronics heat guiding means the system produces less heat and doesn't require a noisy fan to keep it cool
  • Built in wireless receiver that will automatically connect to a wireless steering wheel and has an unbreakable millisecond range response time
  • 2 years manufacturers warranty

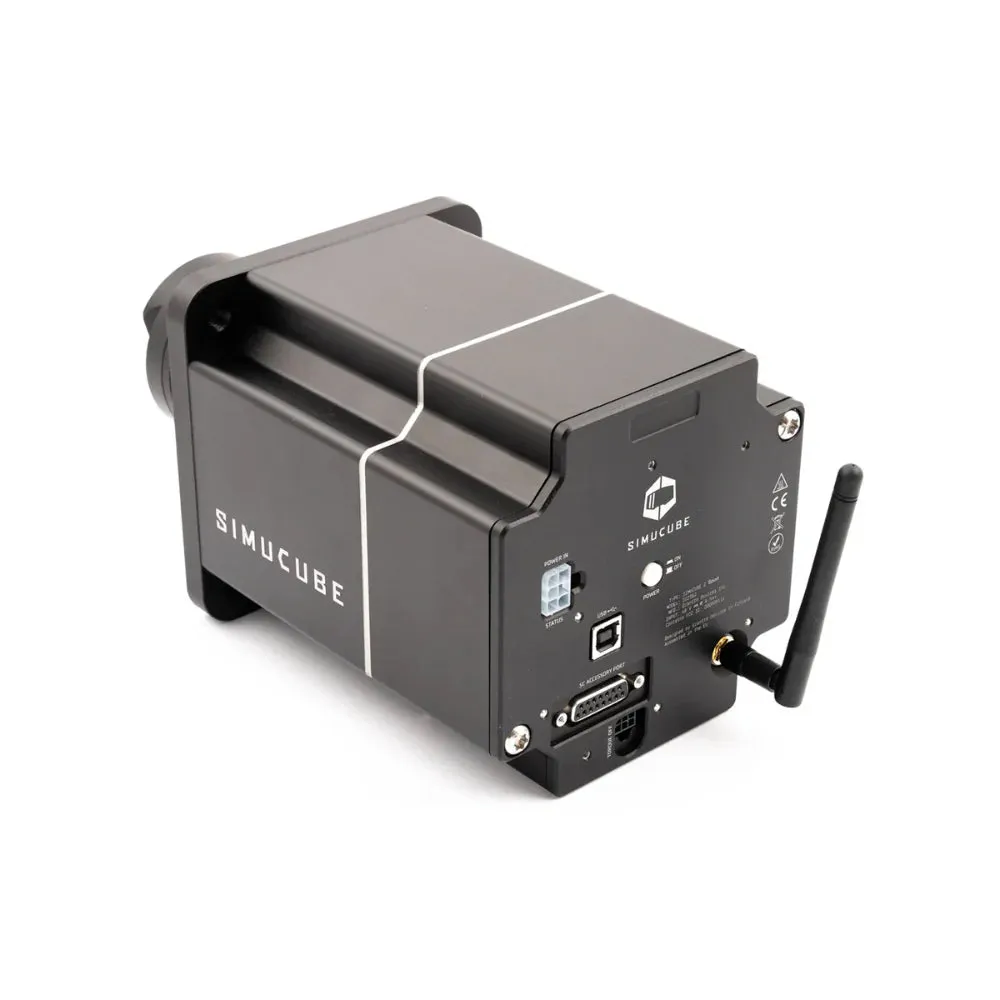

Not only can the Pro wheel base produce a huge amount of torque, it is also highly accurate with robotics grade angle sensors and high quality encoders. This combined with custom made electronics and all wrapped up inside a full metal CNC machined case means that the Pro is a solid unit that is capable of providing the very best in sim racing force feedback. The wheel base system works with the Simucube quick release wheel side kit which is available to purchase separately. The wheel side kit simply clips onto the wheel base and it locks in place with a safety pin. This system allows you to have multiple steering wheels where you can quickly change wheels with ease.



COMPARE MODELS





SIMUCUBE 2 SPORT





SIMUCUBE 2 PRO





SIMUCUBE 2 ULTIMATE





MOTOR





Direct Drive optimized ultra low torque ripple motor





High response speed Direct Drive optimized ultra low torque ripple motor





Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor





SIMUCUBE WIRELESS WHEEL™ SUPPORT





Included





Included





Included





SIMUCUBE QUICK RELEASE™





Not Included





Not Included





Included





MAX TORQUE *





17 Nm





25 Nm





32 Nm





MAX TORQUE SLEW RATE





4.8 Nm/ms





8.0 Nm/ms





9.5 Nm/ms





ANGLE SENSOR





22 bit absolute





22 bit absolute





24 bit Hiperface





TORQUE OFF BUTTON





Standard (Premium optional)





Standard (Premium optional)





Premium (with remote power switch)





POWER SUPPLY





280 W





R2 1 x 450 W Peak





1000 W





WHEEL BASE DIMENSIONS INCL. SQR™





130 x 130 x 250 mm





130 x 130 x 270 mm





115 x 115 x 310 mm





MOUNTING HOLES





M8 x 4 pcs threaded hole





M8 x 4 pcs threaded hole





9 mm dia x 4 pcs through hole





MOUNTING HOLE PATTERN DIA





145 mm





145 mm





130 mm





FLANGE CENTERING HOLE DIA





110 mm





110 mm





110 mm





WHEEL BASE WEIGHT





8.0 kg





11.1 kg





11.3 kg





STANDARD WARRANTY





24 months





24 months





60 months





*) Torque is continuous until motor gets very hot. In preliminary testing, no-one has managed to cause torque to start throttling.





SIMUCUBE 2 SPORT





SIMUCUBE 2 PRO





SIMUCUBE 2 ULTIMATE





TORQUE RECONSTRUCTION PROCESSING





Yes





Yes





Yes





STATIC FORCE REDUCTION





Yes





Yes





Yes, in detail adjustable





NATURAL DAMPING, INERTIA AND FRICTION FILTERS





Yes





Yes





Yes, in detail adjustable





ULTRA LOW LATENCY MODE





Yes





Yes





Yes





TORQUE SLEW RATE ADJUSTMENT





1 – 4.8 Nm/ms





1 – 8.0 Nm/ms





1 – 9.5 Nm/ms







Simucube 2 Pro Direct Drive System - R2
  • DefaultTitle

$ 89.48

$ 68.83

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
