Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Standard Quick Wire Plug |
| Alternate Mfr Part Number | XQ-056-RS |
| Color | Black |
| Connector Size | Standard |
| Connector Type | Quickwire |
| For Use With | Type J Thermocouple |
| Housing Color | Black |
| Maximum Operating Temperature | 220 °C |
| Minimum Operating Temperature | -35°C |
| Operating Temperature, Maximum | 220 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Thermocouple Type | J |
| UPC Code | 5056111991473 |
| Warranty | 3 Year Warranty |
Overview

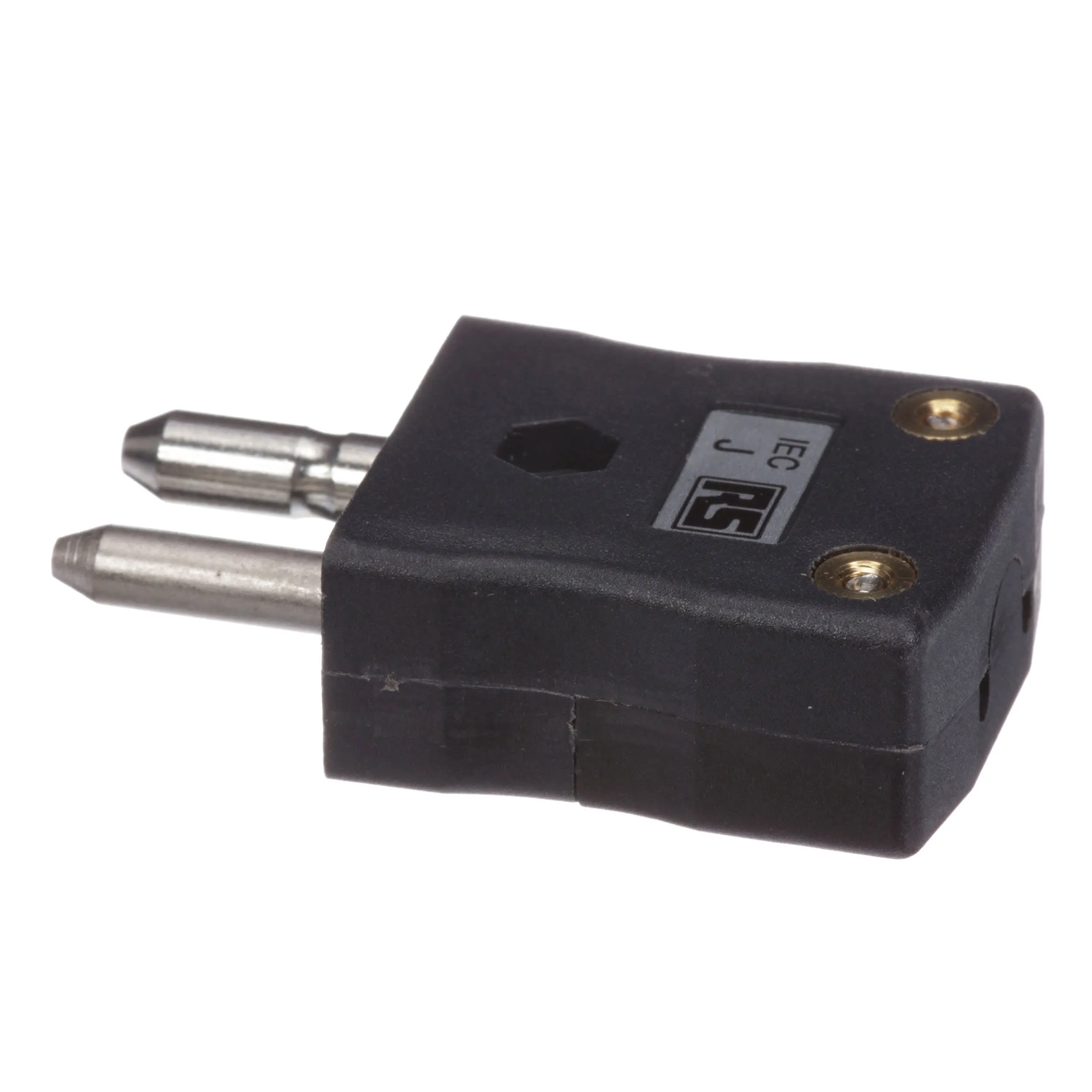

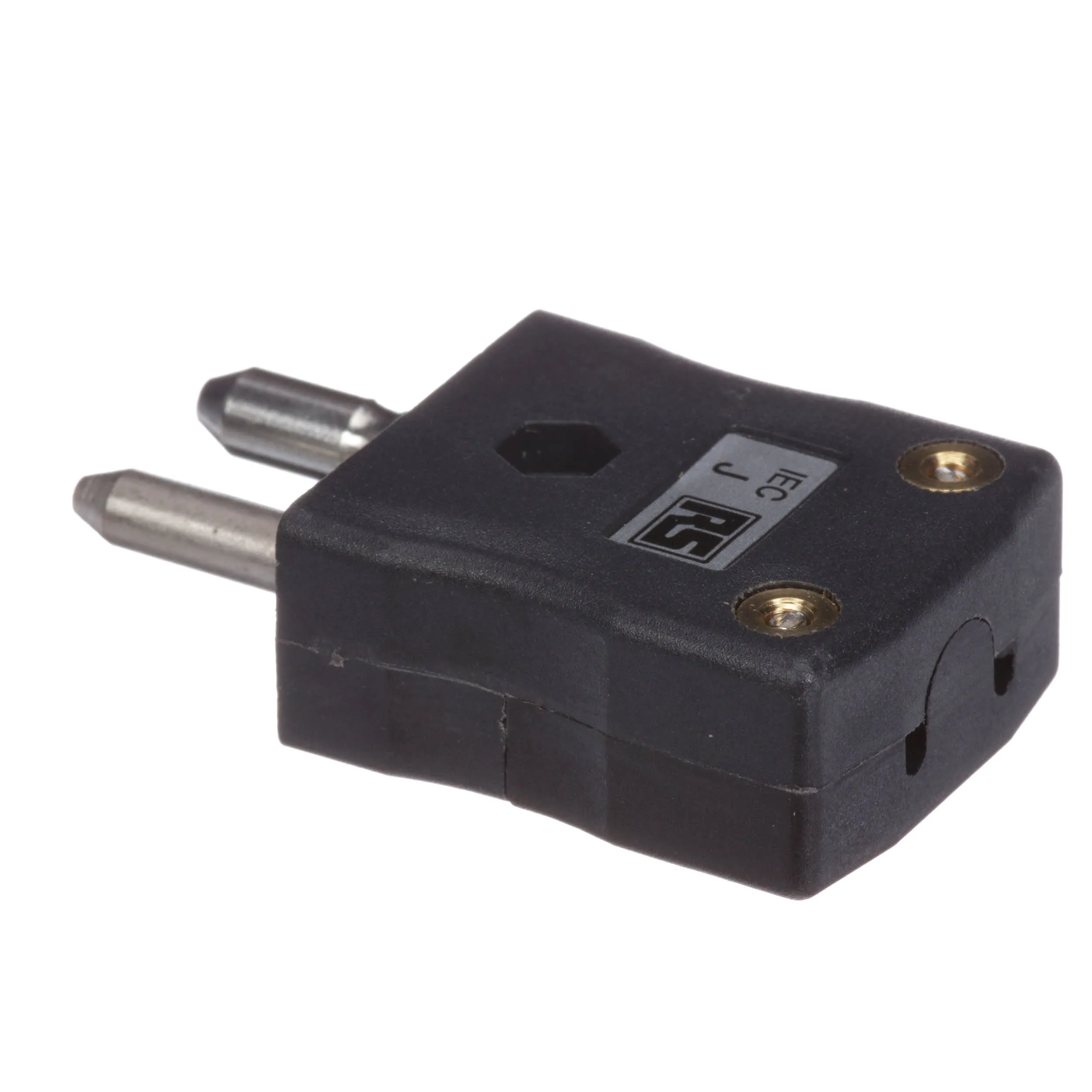

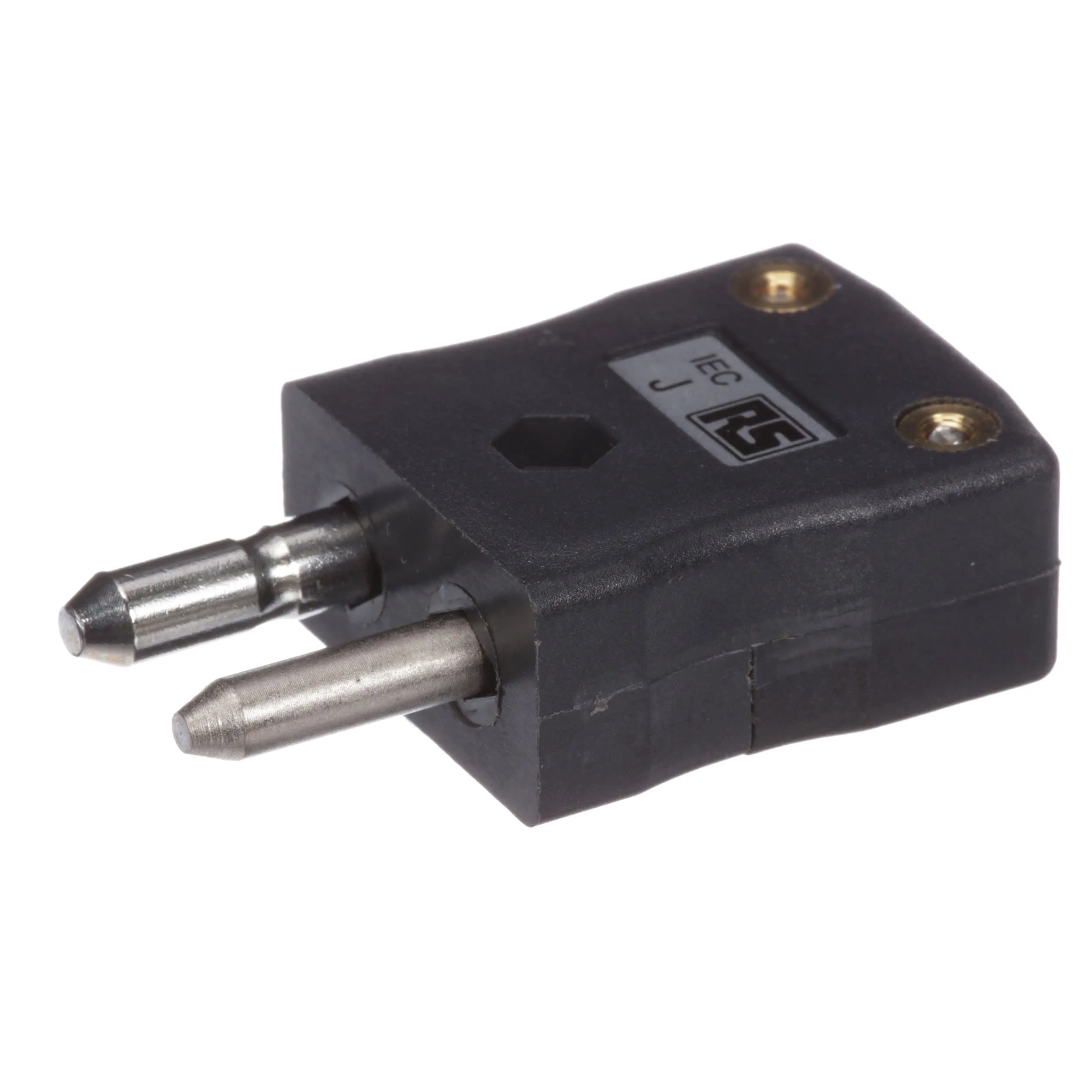

Quick-wire Connectors
Standard connector with solid round plug pins. Available in thermocouple types K, J, T, E, N, R/S, B and Copper. Their contacts are polarised to prevent incorrent connection.
Standard format In-Line Plugs and Sockets
Rapid termination, no terminal cover to remove, just push in wire and tighten screw
Operating temperature 220 °C max
Socket & plugs are sold separately
