Product Details
＋
Specifications

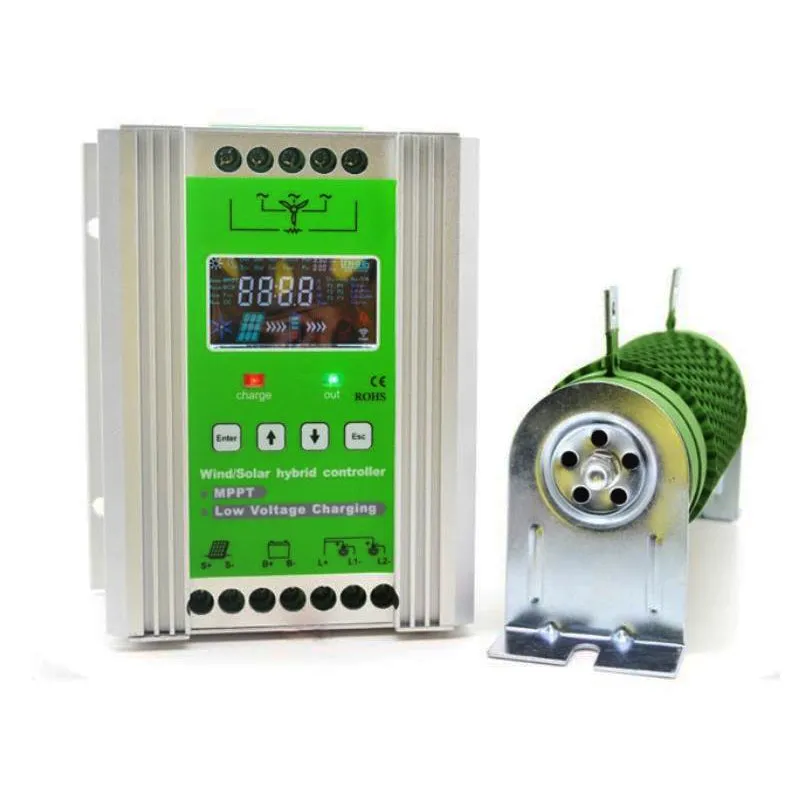

- Model: ReGen_NG-1000 Wind Controller.
- Rated Wind Input Power: 1000W.
- Rated Solar input power: 1000W.
- Rated Battery Voltage: 48V.
- PV Array Minimum Operating: Voltage >VBat 1V.
- PV Array Maximum Open Circuit: Voltage / V 105V.
- Recovery Voltage after PV array Maximum Open Circuit Voltage / V: 100V.
- PV Current Rating (A): 21A.
- Fan Rated Voltage Level / V: 48V.
- Fan Array Maximum Open Circuit Voltage / V: 102.4V.
- Fan Rated Current (A): 21A.
- DC Load Output Rated Current / A (Load 1 Load 2): 30A (Maximum one-way 15A).
- Nett Weight: 2.6 kg.
- Battery Support: Lithium, Deep Cycle, Lead Acid, Gel and AGM.
- Humidity: 10% ～90% ℃.
- Working Temperature: -20°C~55°C.
- Packaging Dimensions (L×W×H): 20cm x 19cm x 12cm.
