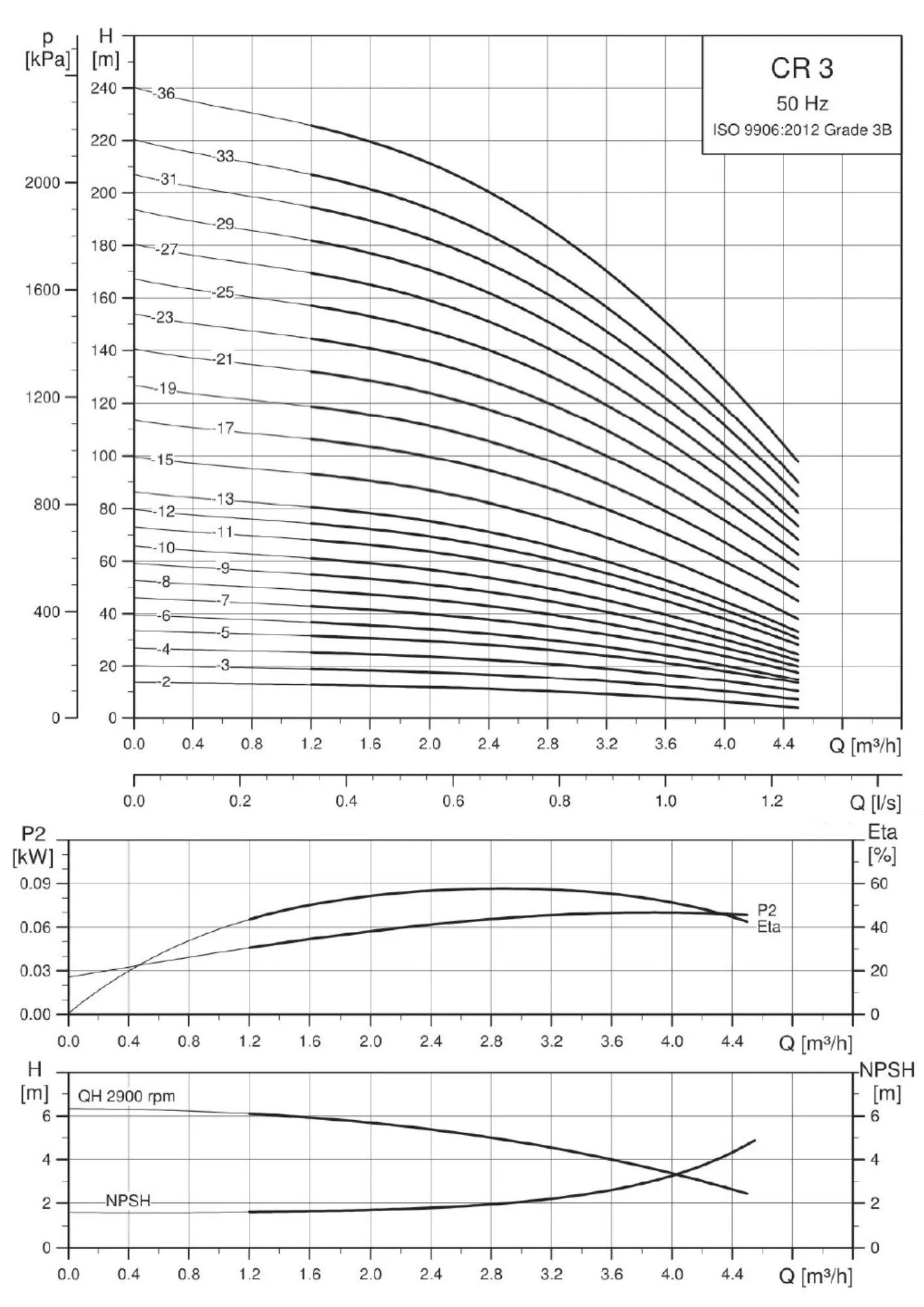

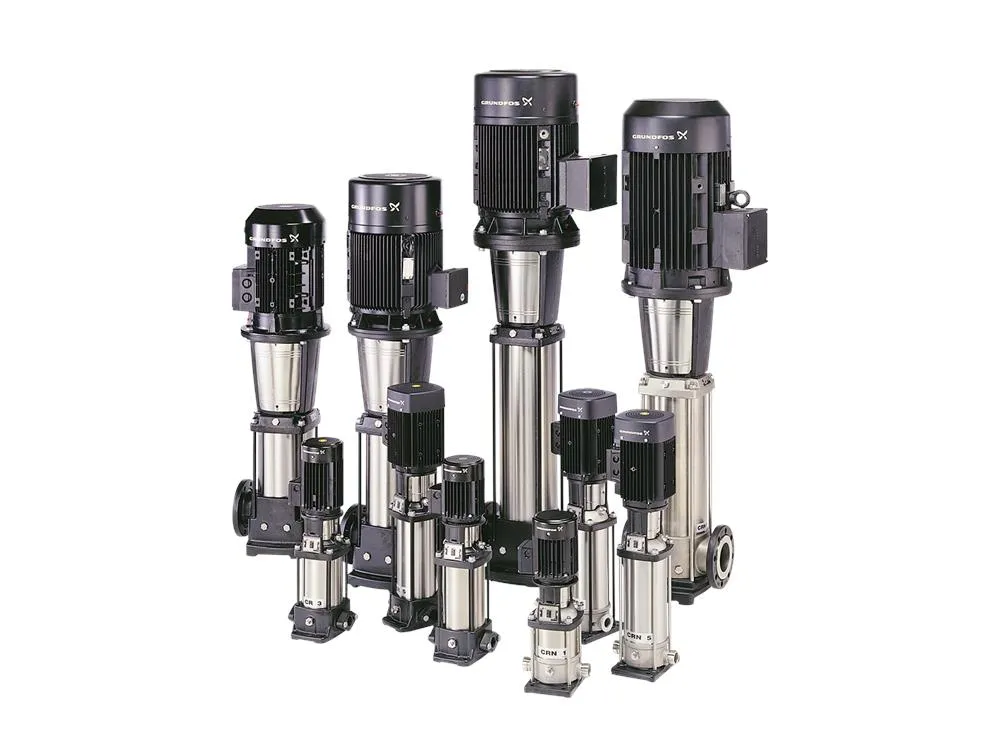

Grundfos CRI 3 304ss Vertical Multistage Pumps (Max 50 LPM)

The Grundfos CRI pump is an in-line, multi-stage pump available in a wide variety of flow and pressure sizes. Built from AISI 304 grade stainless steel, the CRI is ideally suited for water and other non-corrosive liquids. Use the CRI for liquid transfer, glycol, circulation systems and pressure boosting of cold or hot water and slightly aggressive liquids.

Good Corrosion Resistance - All CRI wetted parts are manufactured in AISI 304 stainless steel for good corrosion resistance in most environments.
High Hydraulic Efficiency - Performance is optimised from fluid mechanics insights provided by extensive simulation-driven design and verification.
Optimal Motor Utilisation - The standard product range is optimised for maximum utilisation of the motor’s power output.
Versatile Solution - For deep-well pumping, specialised pumps are available for small water supply systems where water is pumped from depths down to 90 metres.

SPECIFICATIONS

Impellers: 304 stainless steel
Intermediate casings: 304 stainless steel
Outer casing: 304 stainless steel
Bottom casing base: 316 stainless steel
Top casing: 304 stainless steel
Shaft: 304 stainless steel
Motor Bracket: Cast iron
Mechanical seal: HQQE
Liner Rings: 304 stainless steel

FEATURES

High efficiency
Connection Size: Flange DIN DN 25/32
Space-saving
Reliability
Service-friendly
Suitable for slightly aggressive liquids
High corrosion resistance
Single-pump solution making high pressures possible.
Vertical multi stage pump with 304 SS wetted construction.
Fitted with IP55 motor
Fitted with EPDM elastomers
Pumps certified to AS/NZS 4020 for use with potable water

OPTIONAL EXTRAS (ADD-ONS)

MODELS AVAILABLE

PART NUMBER	DESCRIPTION
92902145	Grundfos CRI 3-2 0.37kW - Single Phase
92902147	Grundfos CRI 3-3 0.37kW - Single Phase
92902148	Grundfos CRI 3-4 0.37kW - Single Phase
92902149	Grundfos CRI 3-5 0.37kW - Single Phase
92902150	Grundfos CRI 3-6 0.55kW - Single Phase
92902151	Grundfos CRI 3-7 0.55kW - Single Phase
92902152	Grundfos CRI 3-8 0.75kW - Single Phase
92902153	Grundfos CRI 3-9 0.75kW - Single Phase
92902154	Grundfos CRI 3-10 0.75kW - Single Phase
92902155	Grundfos CRI 3-11 1.10kW - Single Phase
92902156	Grundfos CRI 3-12 1.10kW - Single Phase
92902157	Grundfos CRI 3-13 1.10kW - Single Phase
92902158	Grundfos CRI 3-15 1.10kW - Single Phase
92902159	Grundfos CRI 3-17 1.50kW - Single Phase
92902160	Grundfos CRI 3-19 1.50kW - Single Phase
92902161	Grundfos CRI 3-21 2.20kW - Single Phase
92902162	Grundfos CRI 3-23 2.20kW - Single Phase
92902163	Grundfos CRI 3-25 2.20kW - Single Phase
92902164	Grundfos CRI 3-27 2.20kW - Single Phase
92902165	Grundfos CRI 3-29 2.20kW - Single Phase

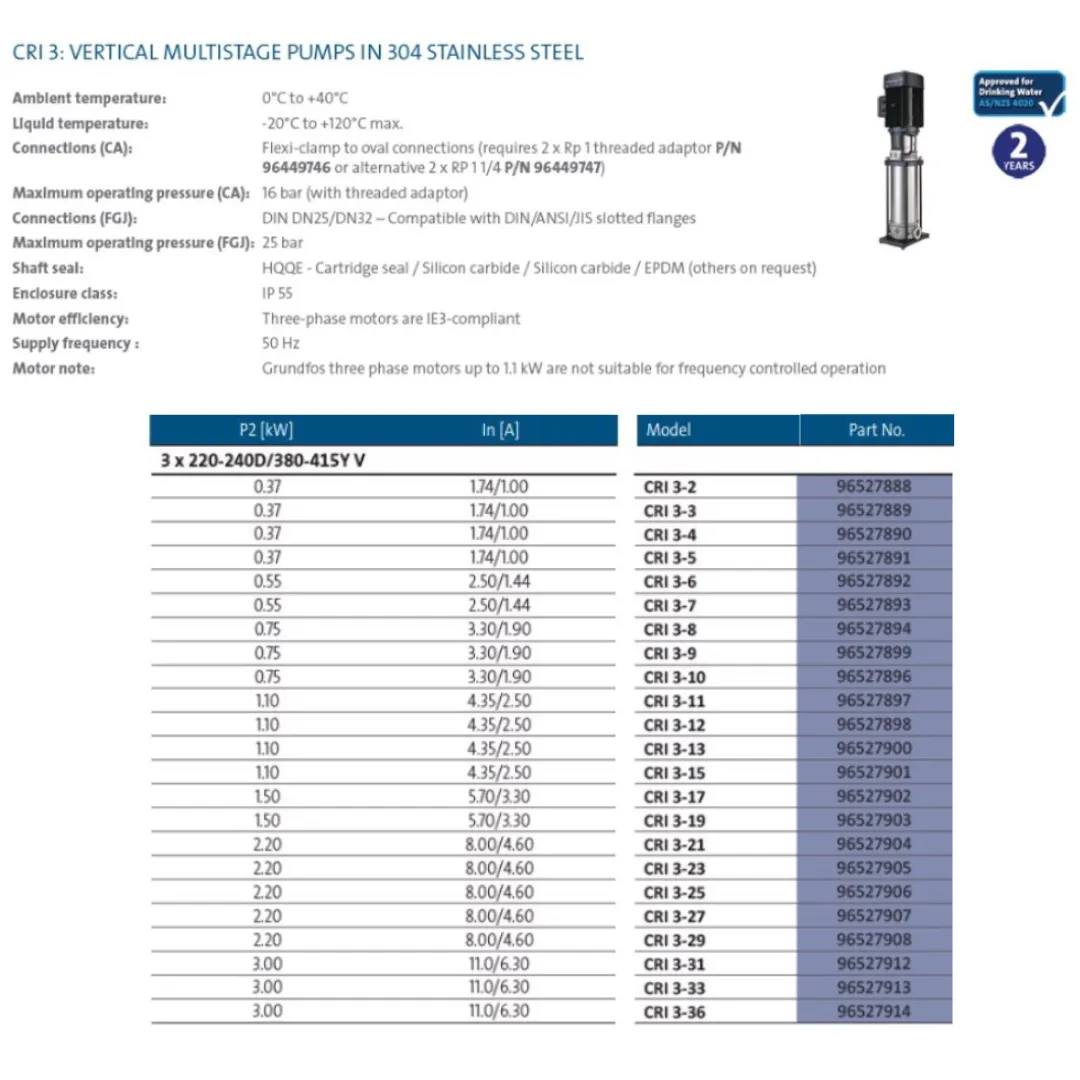

96527888	Grundfos CRI 3-2 0.37kW - Three Phase

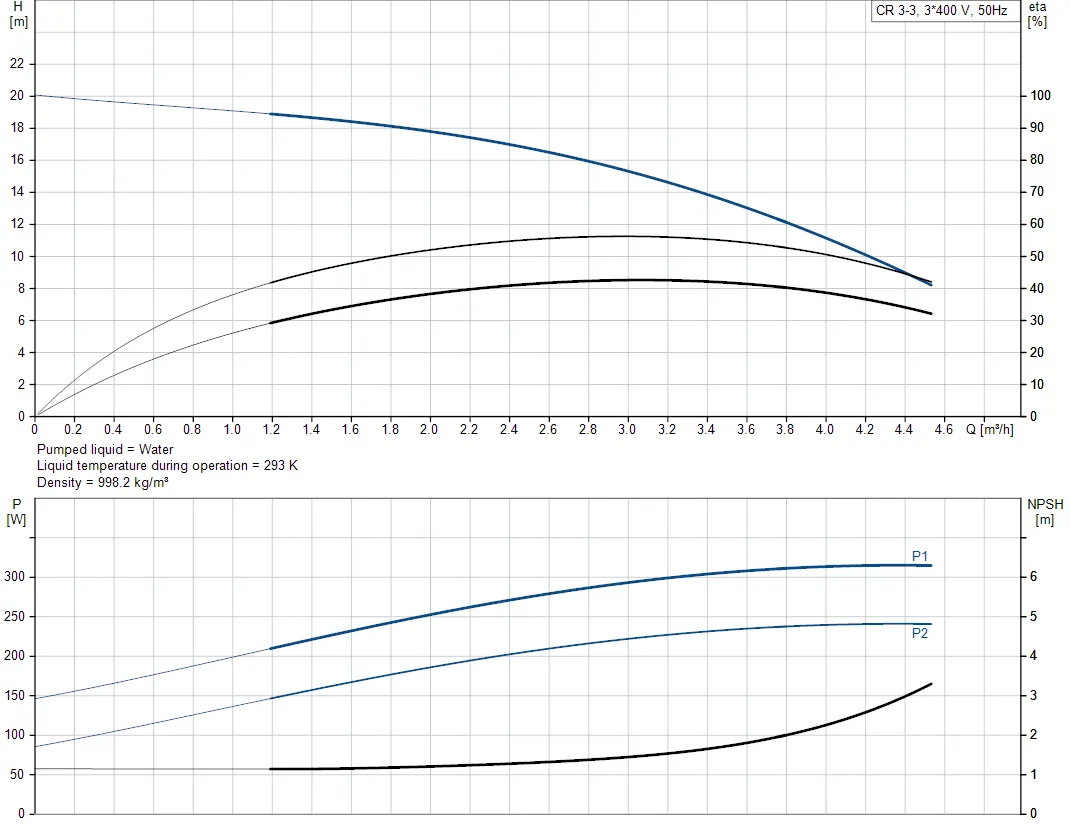

96527889	Grundfos CRI 3-3 0.37kW - Three Phase

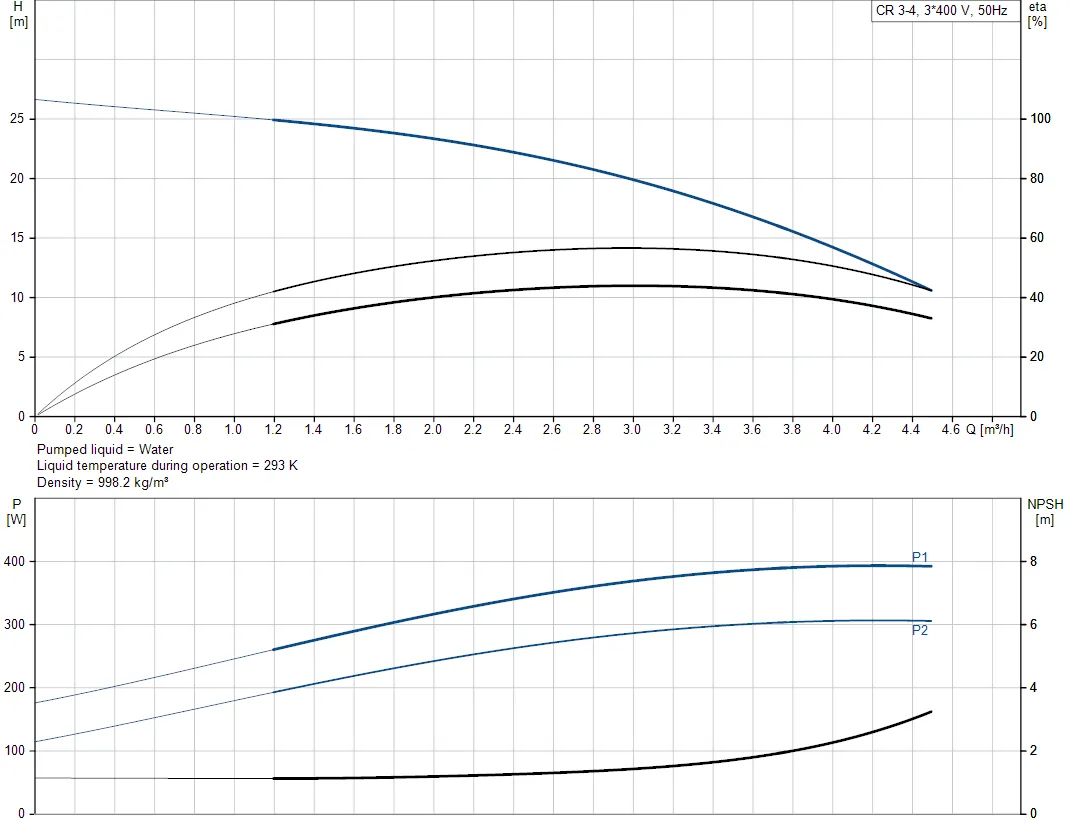

96527890	Grundfos CRI 3-4 0.37kW - Three Phase
96527891	Grundfos CRI 3-5 0.37kW - Three Phase

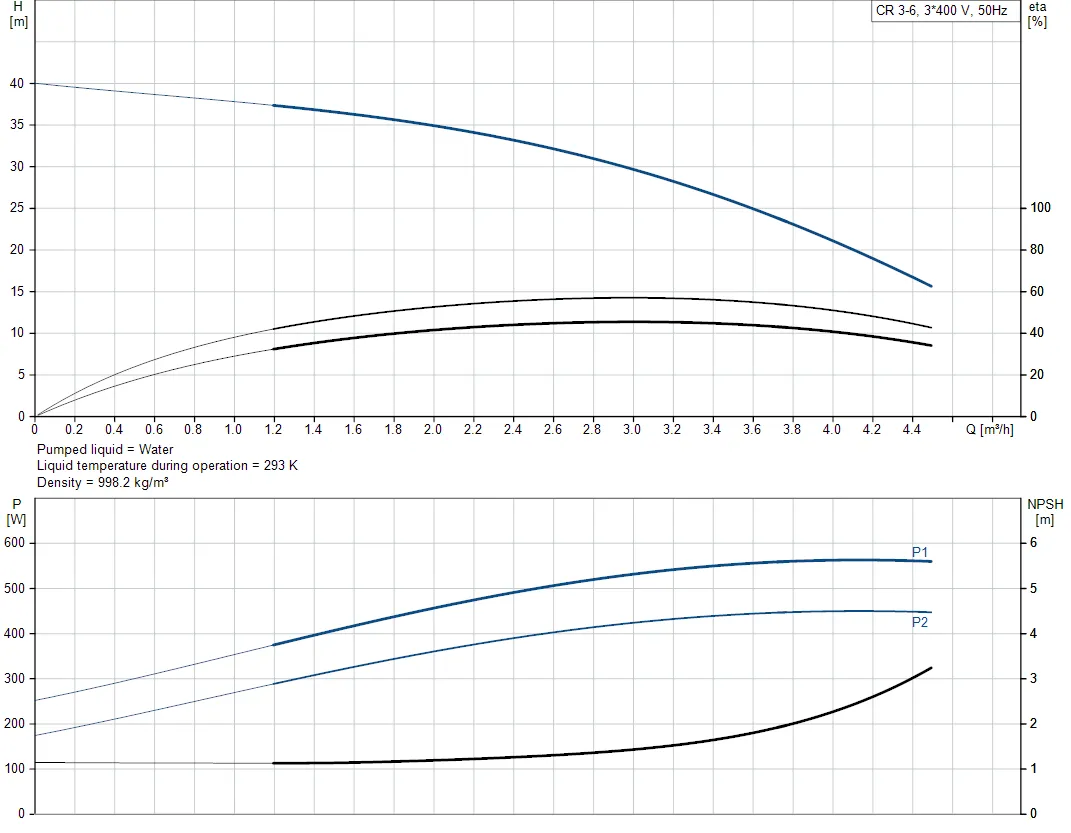

96527892	Grundfos CRI 3-6 0.55kW - Three Phase

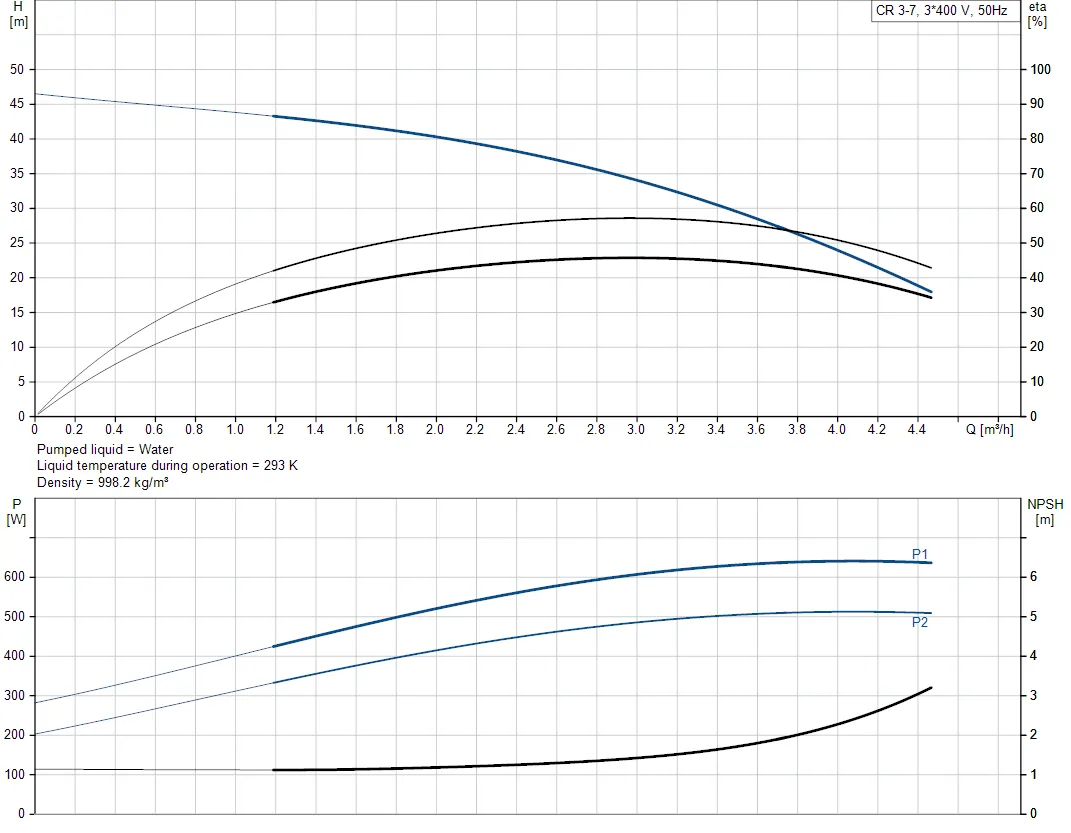

96527893	Grundfos CRI 3-7 0.55kW - Three Phase

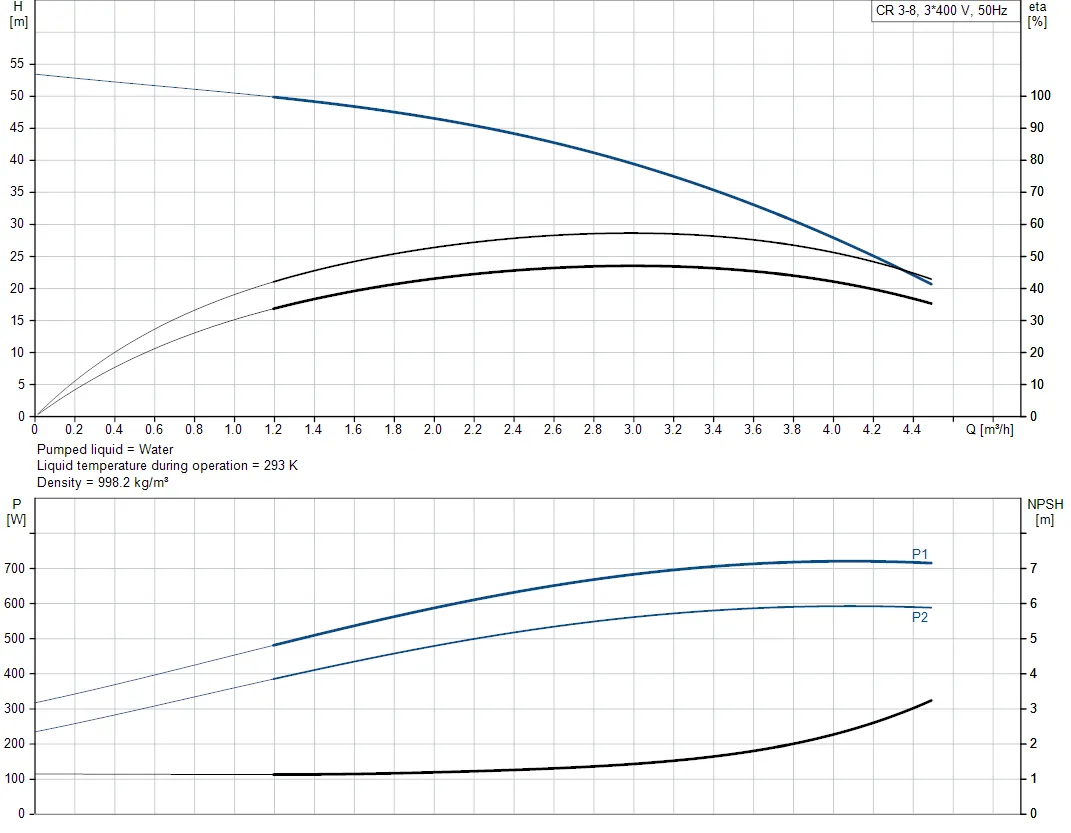

96527894	Grundfos CRI 3-8 0.75kW - Three Phase

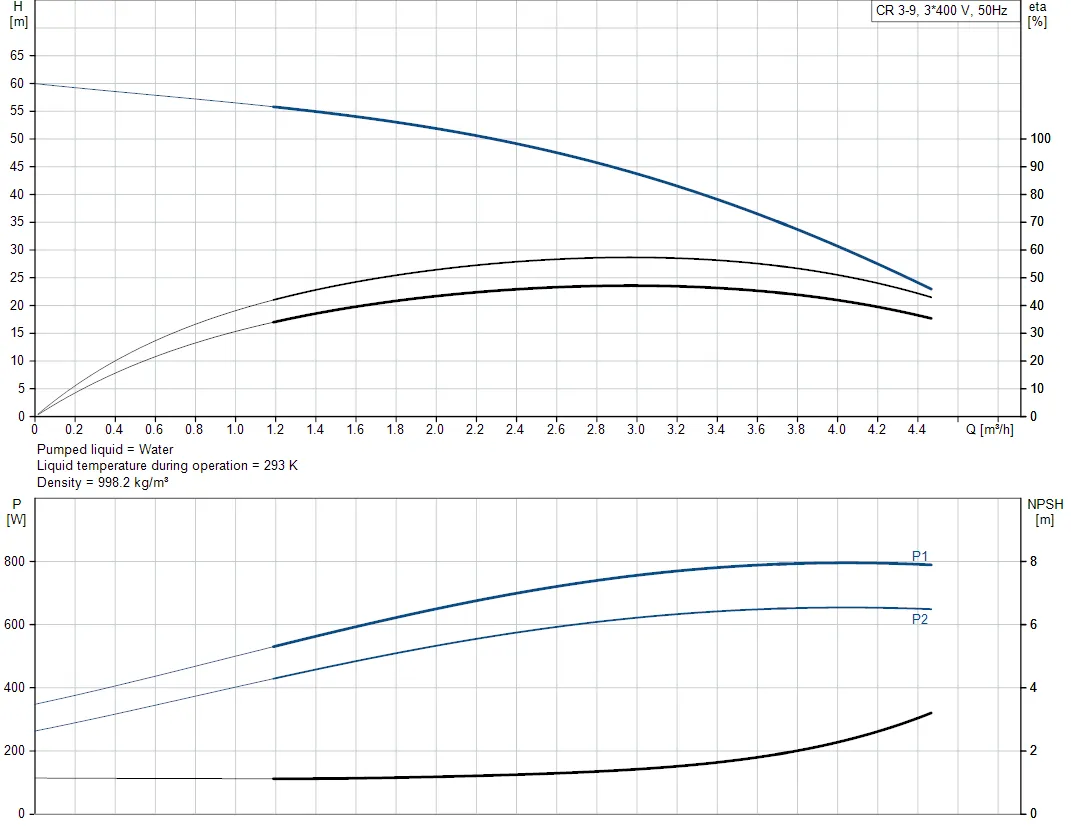

96527899	Grundfos CRI 3-9 0.75kW - Three Phase
96527896	Grundfos CRI 3-10 0.75kW - Three Phase

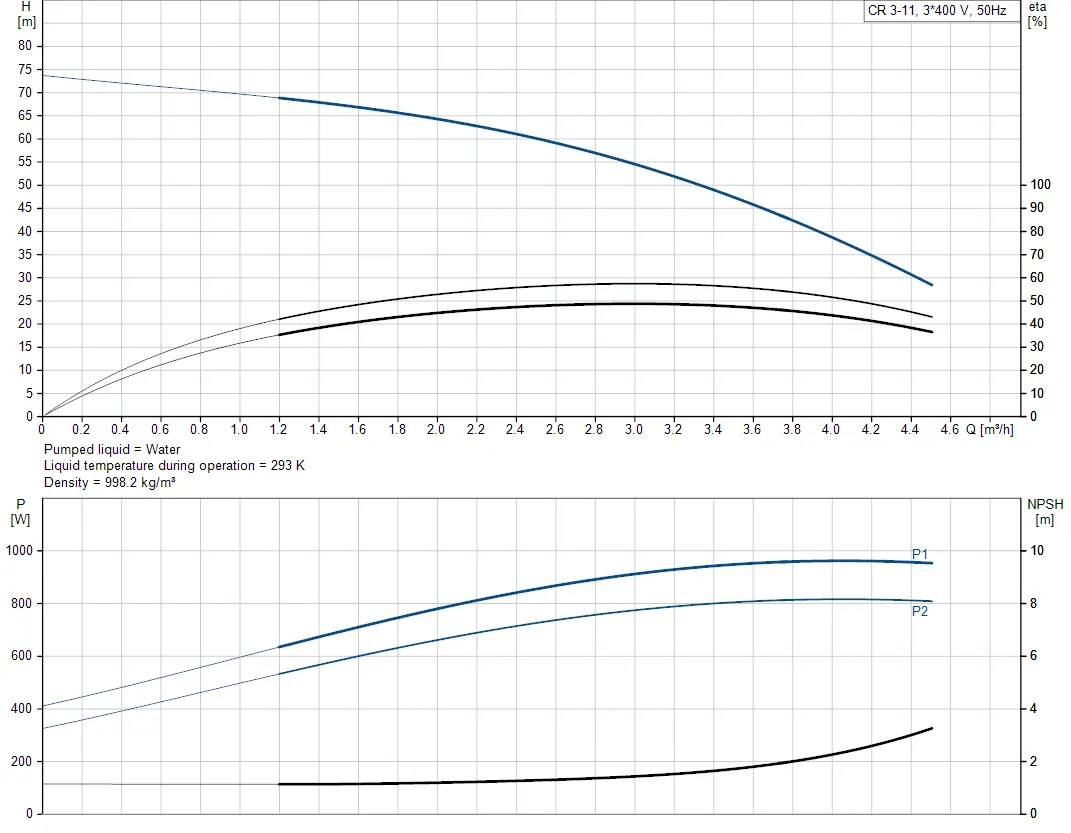

96527897	Grundfos CRI 3-11 0.75kW - Three Phase

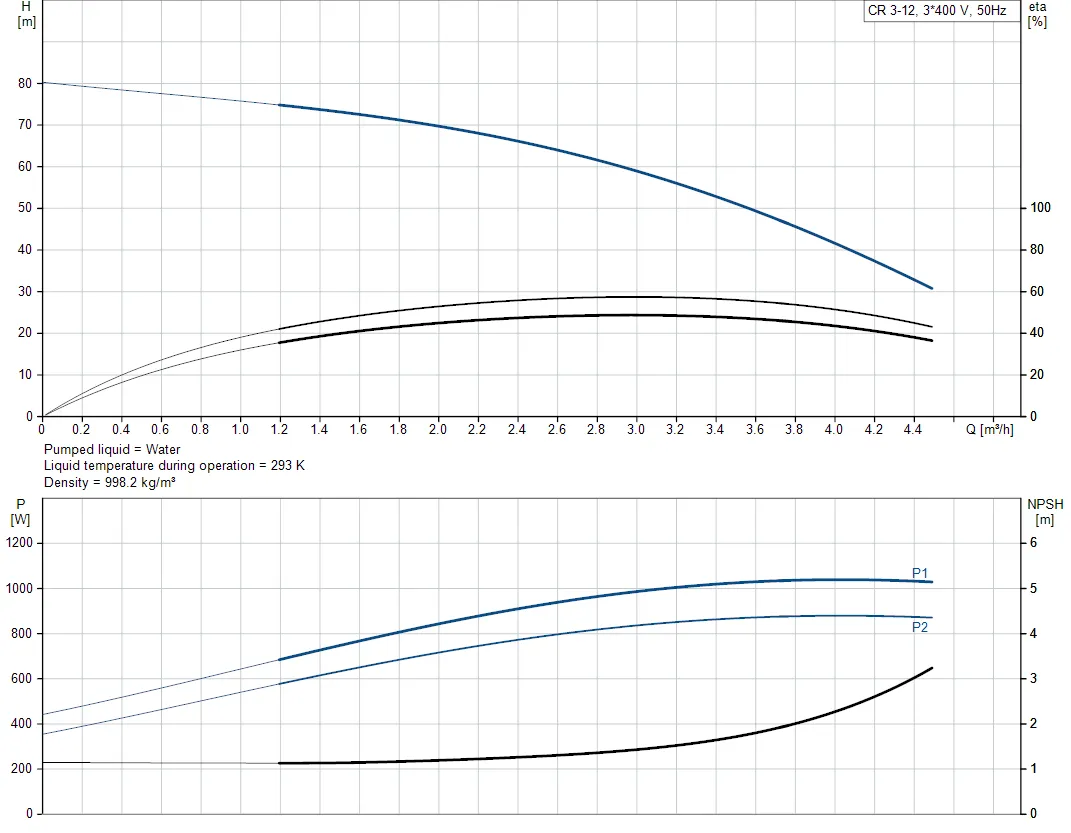

96527898	Grundfos CRI 3-12 1.10kW - Three Phase

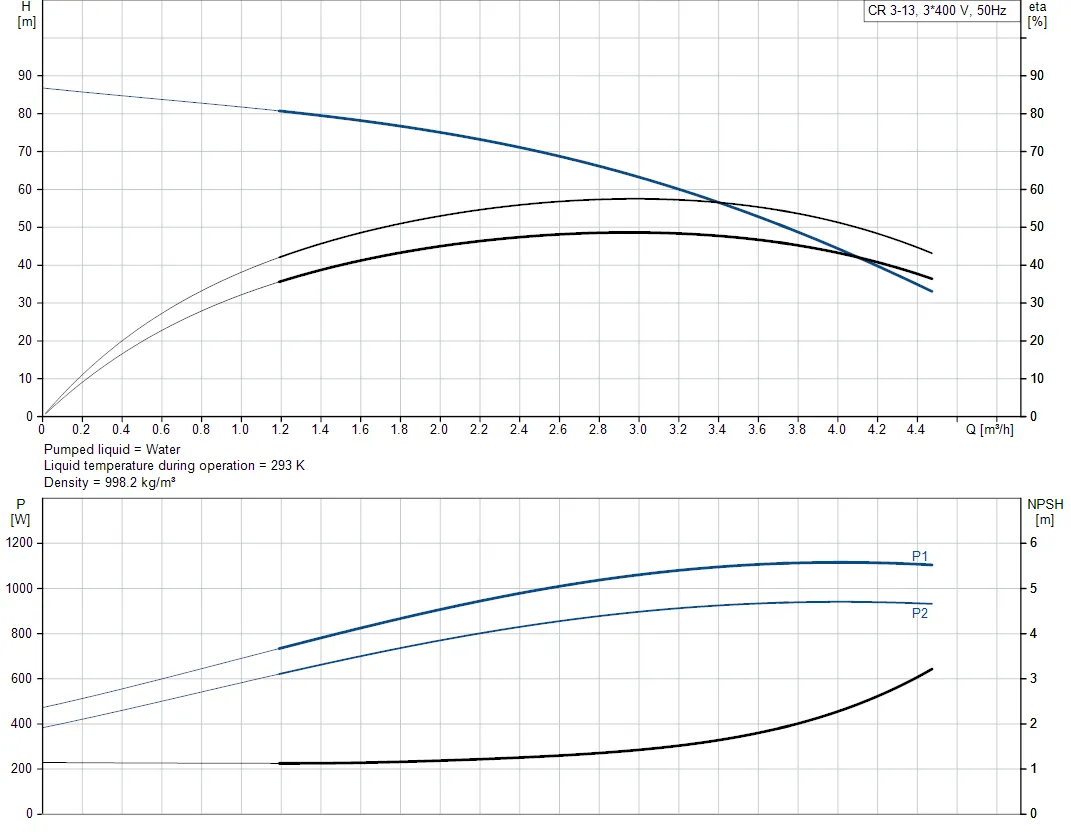

96527900	Grundfos CRI 3-13 1.10kW - Three Phase

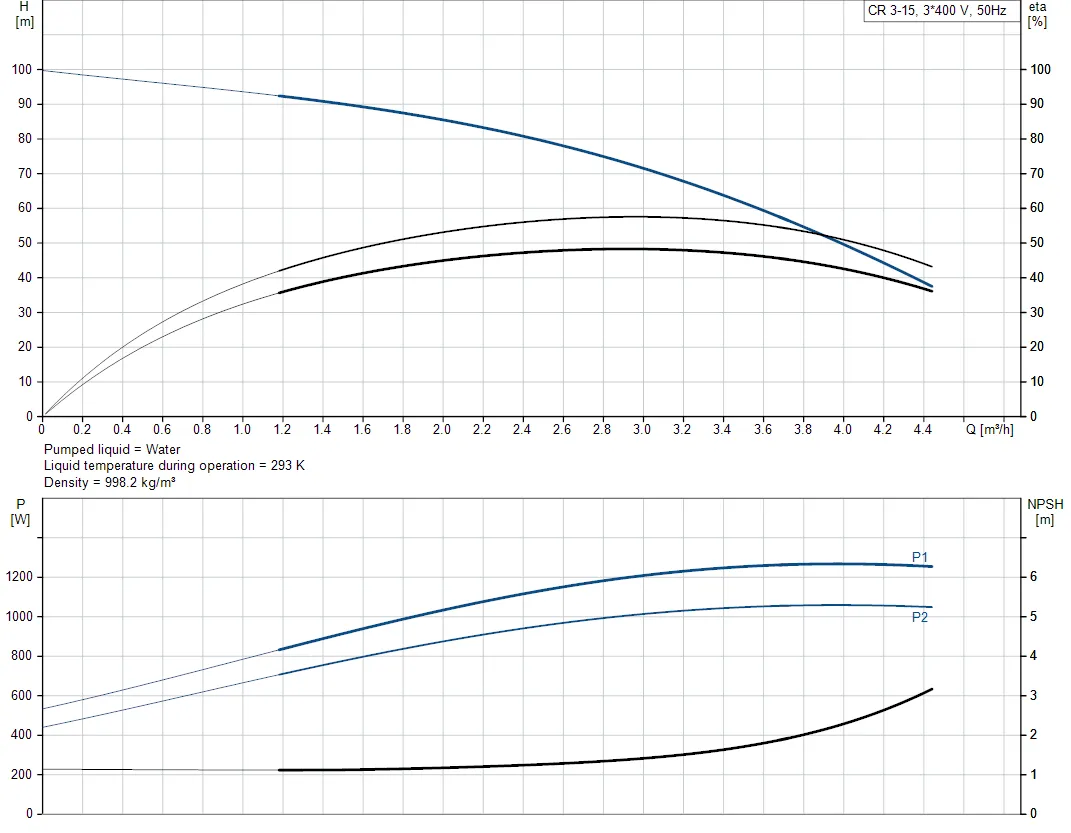

96527901	Grundfos CRI 3-15 1.10kW - Three Phase

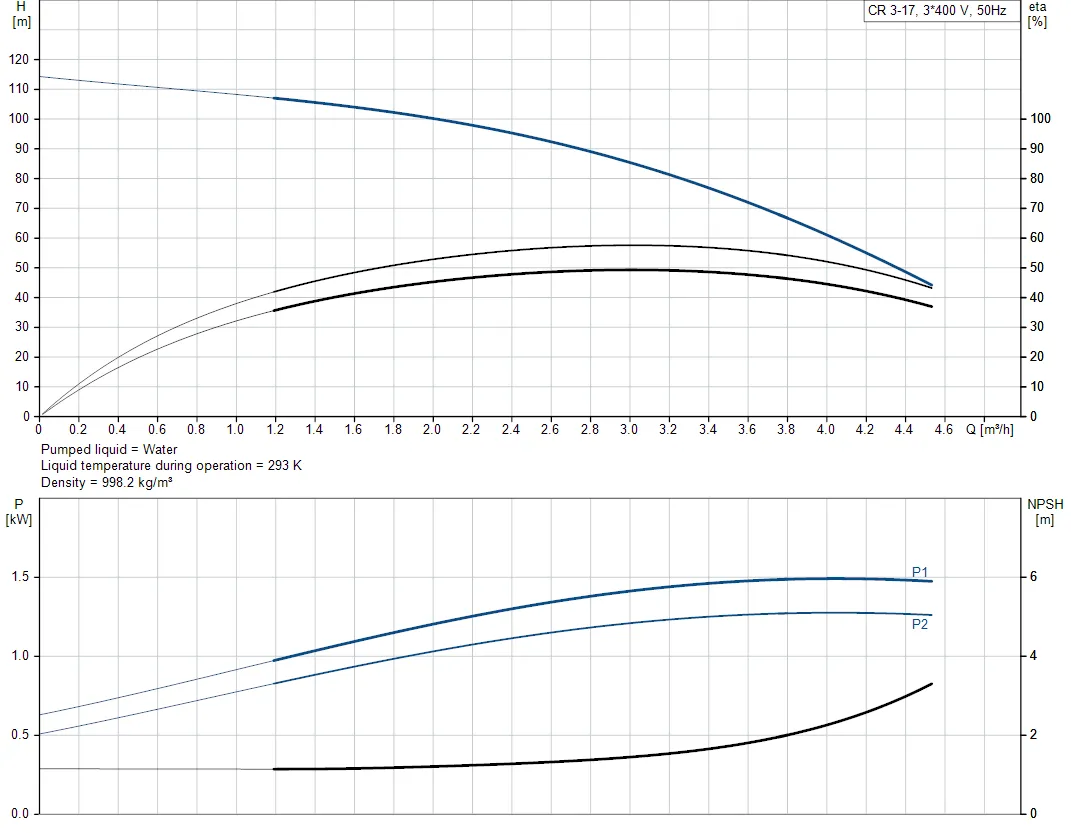

96527902	Grundfos CRI 3-17 1.50kW - Three Phase

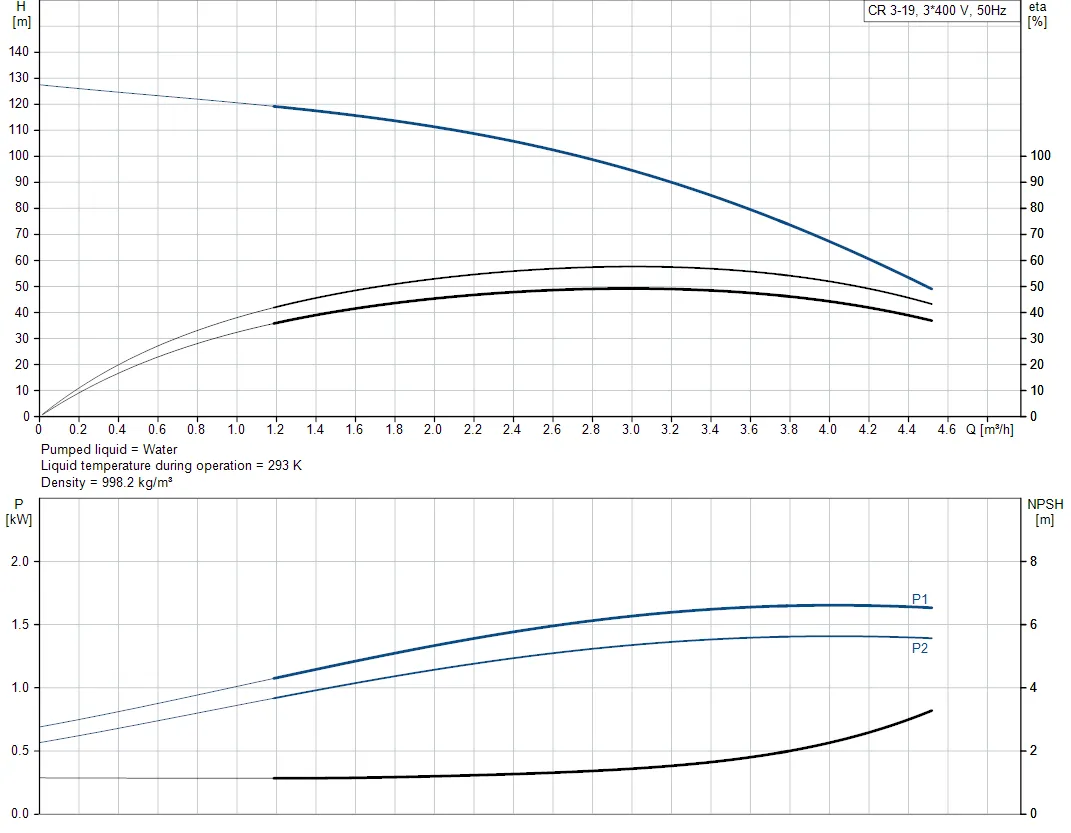

96527903	Grundfos CRI 3-19 1.50kW - Three Phase

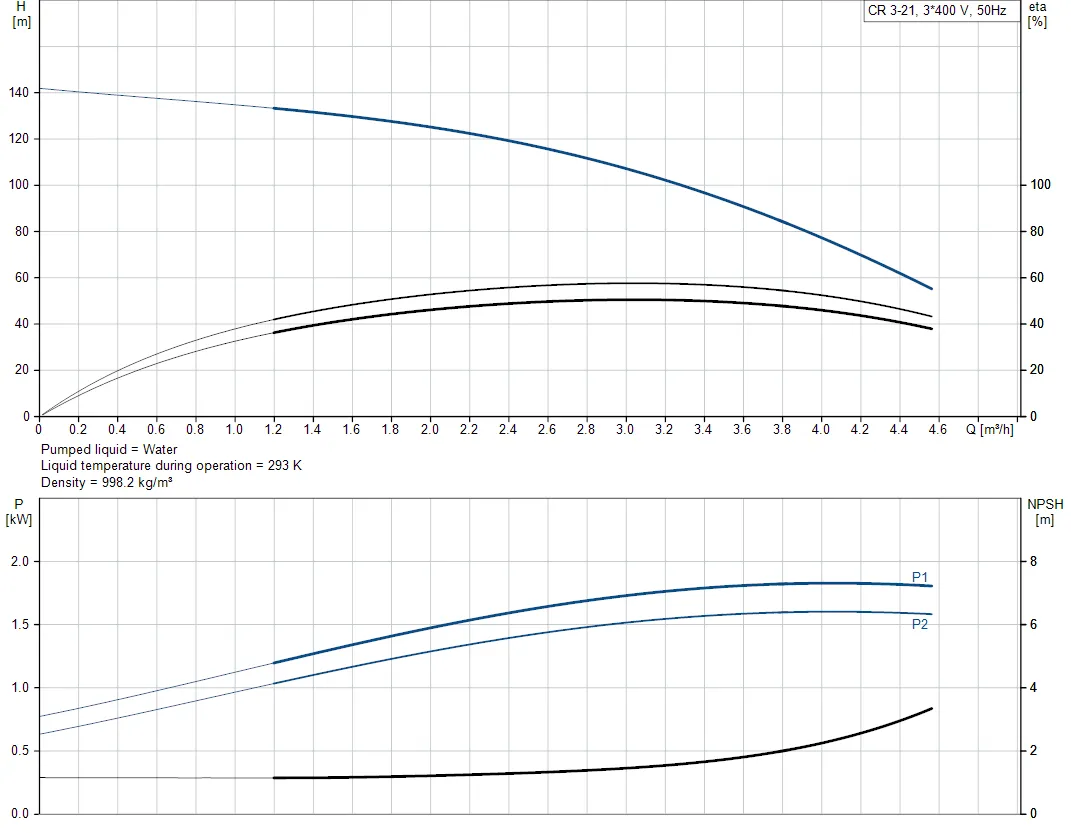

96527904	Grundfos CRI 3-21 2.20kW - Three Phase

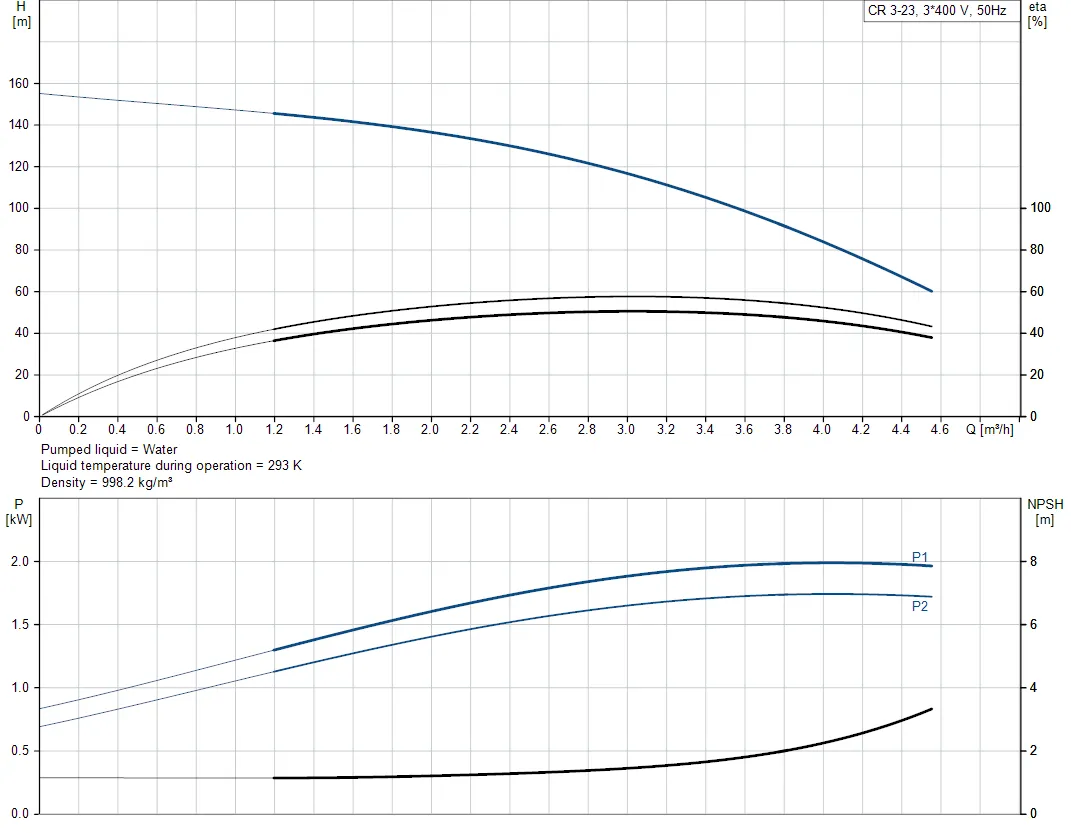

96527905	Grundfos CRI 3-23 2.20kW - Three Phase

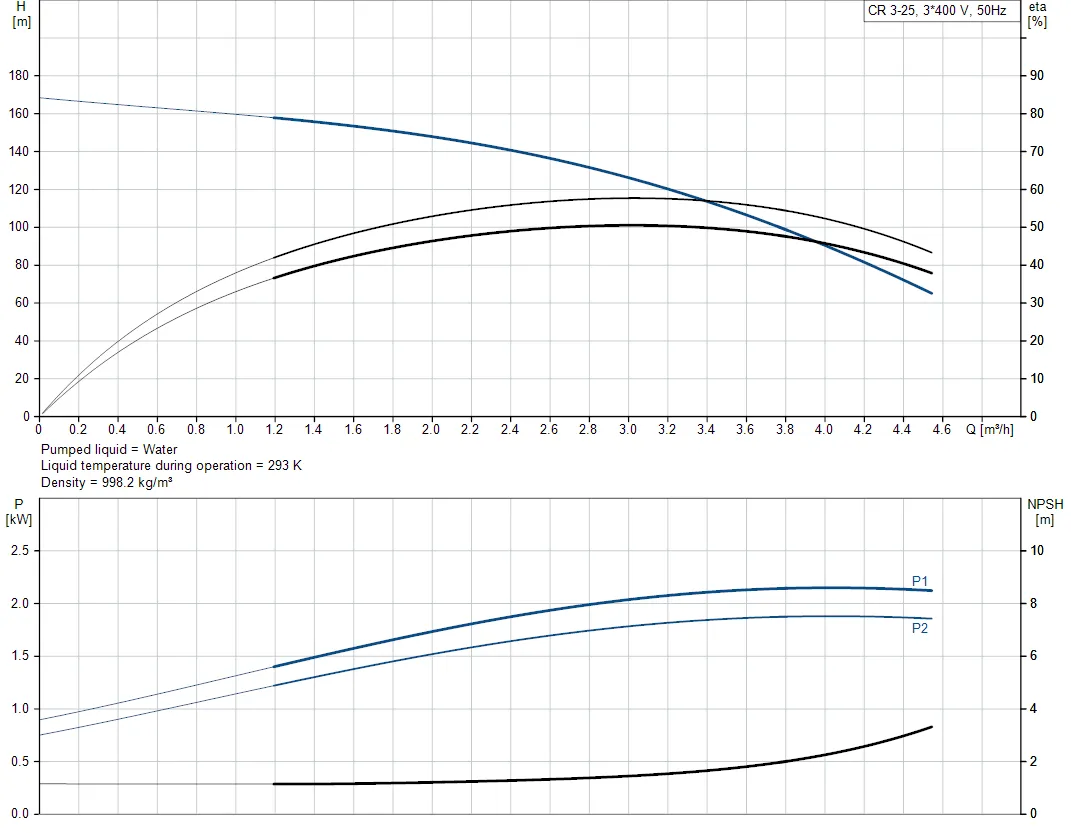

96527906	Grundfos CRI 3-25 2.20kW - Three Phase

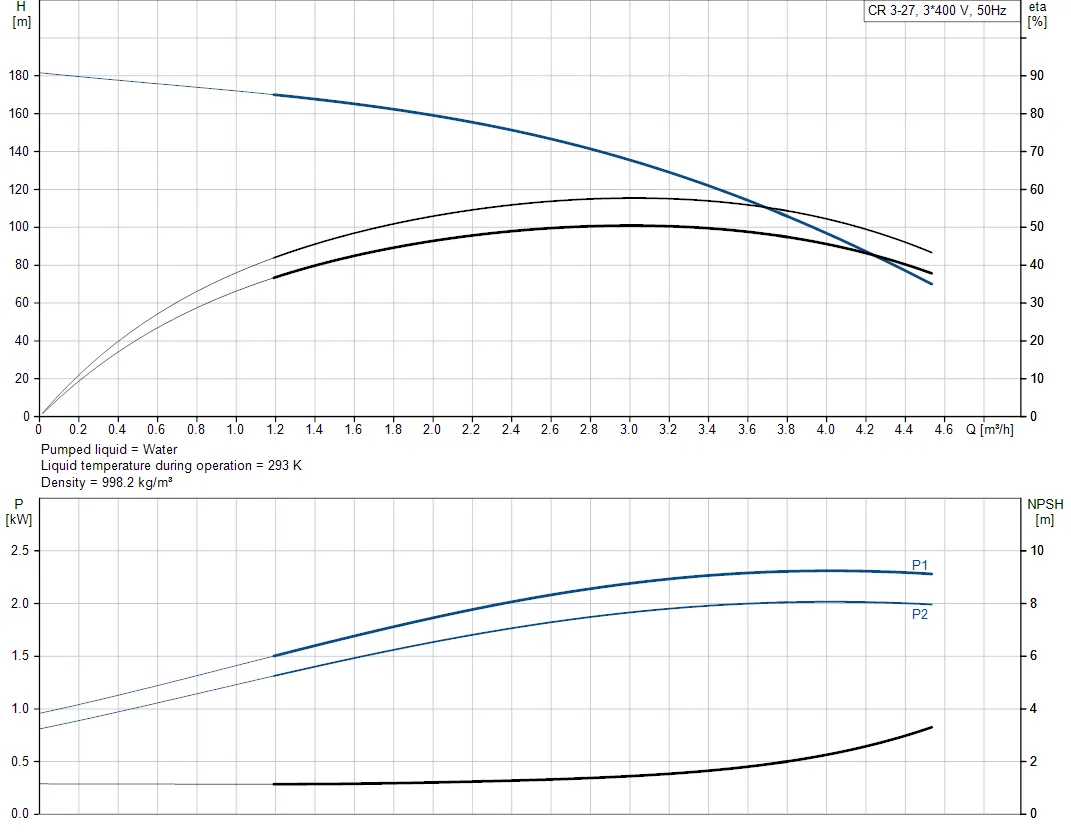

96527907	Grundfos CRI 3-27 2.20kW - Three Phase

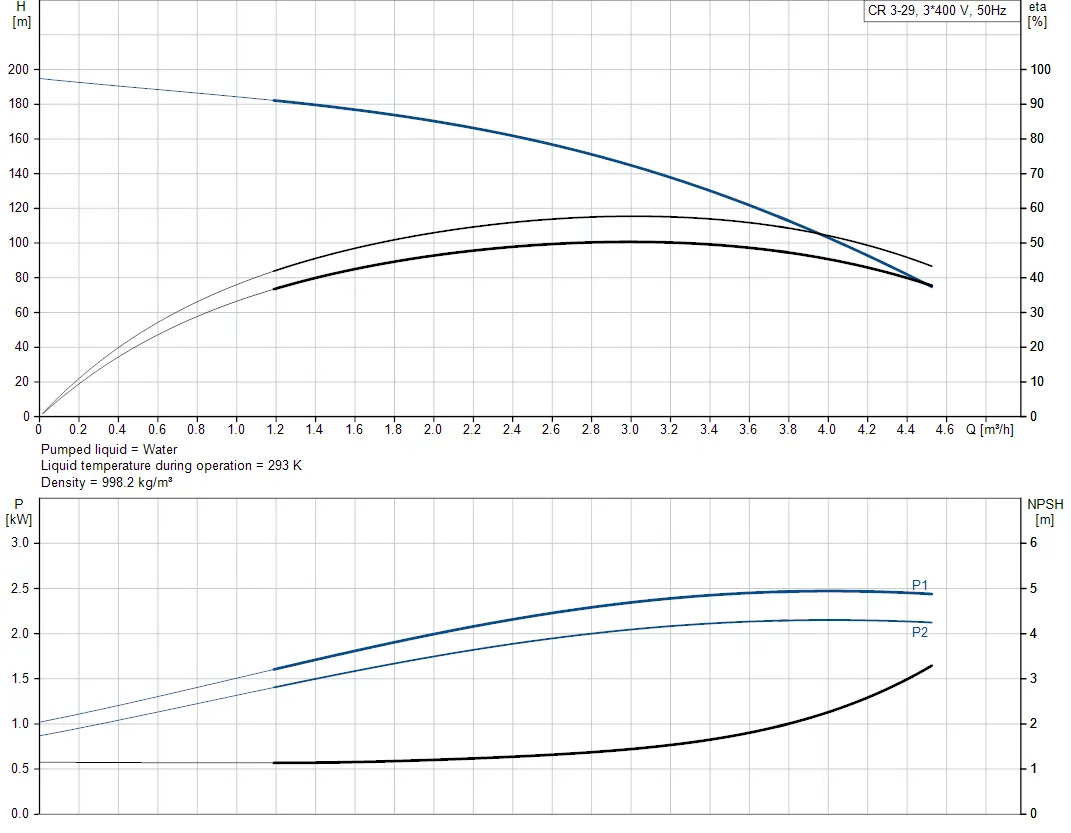

96527908	Grundfos CRI 3-29 2.20kW - Three Phase
96527912	Grundfos CRI 3-31 3.00kW - Three Phase

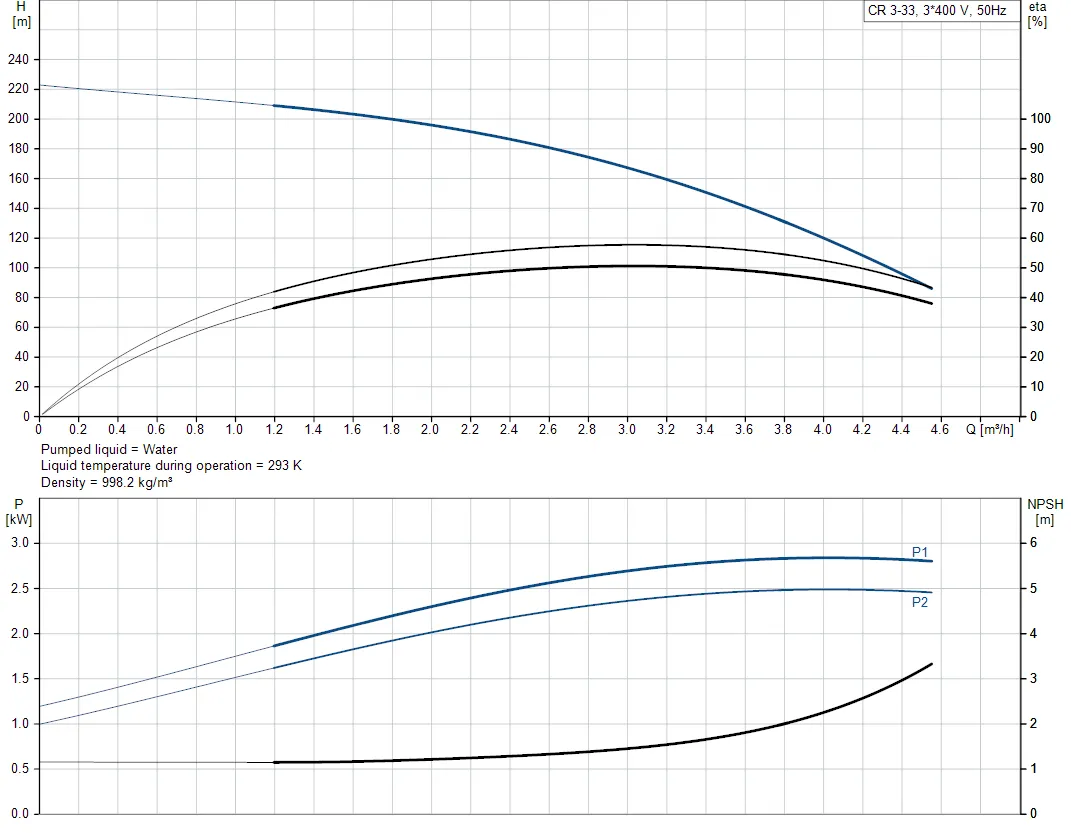

96527913	Grundfos CRI 3-33 3.00kW - Three Phase

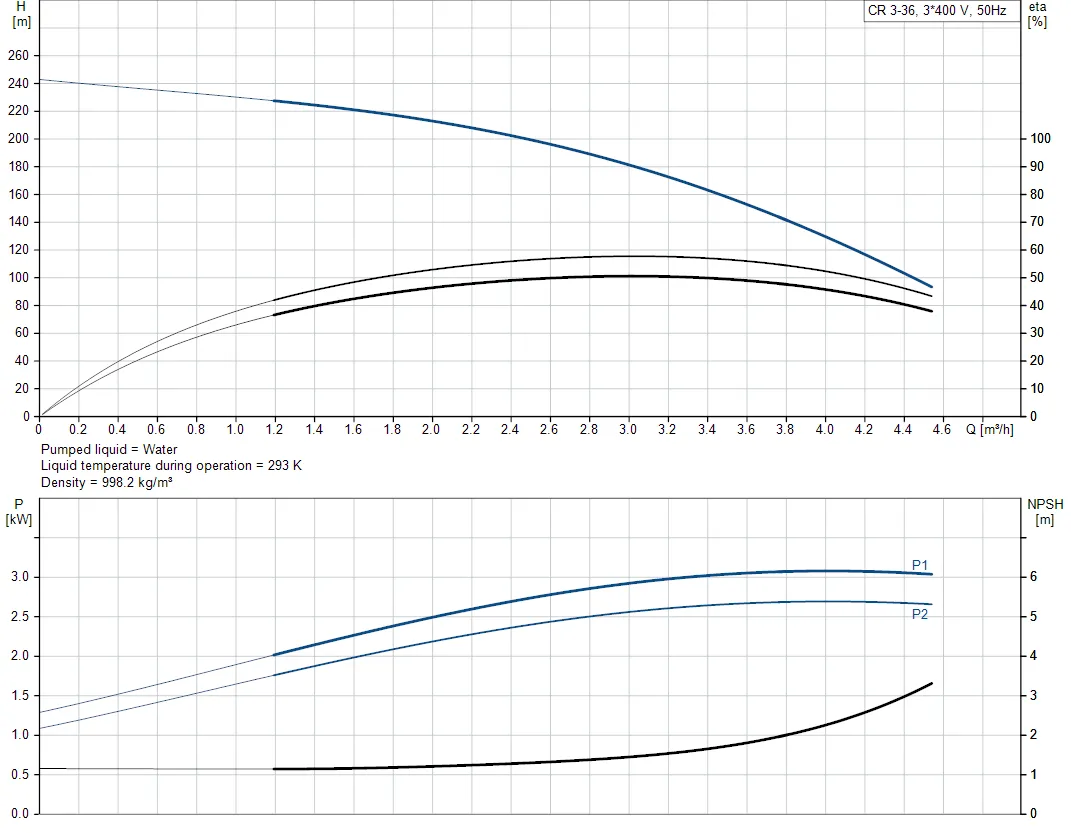

96527914	Grundfos CRI 3-36 3.00kW - Three Phase
