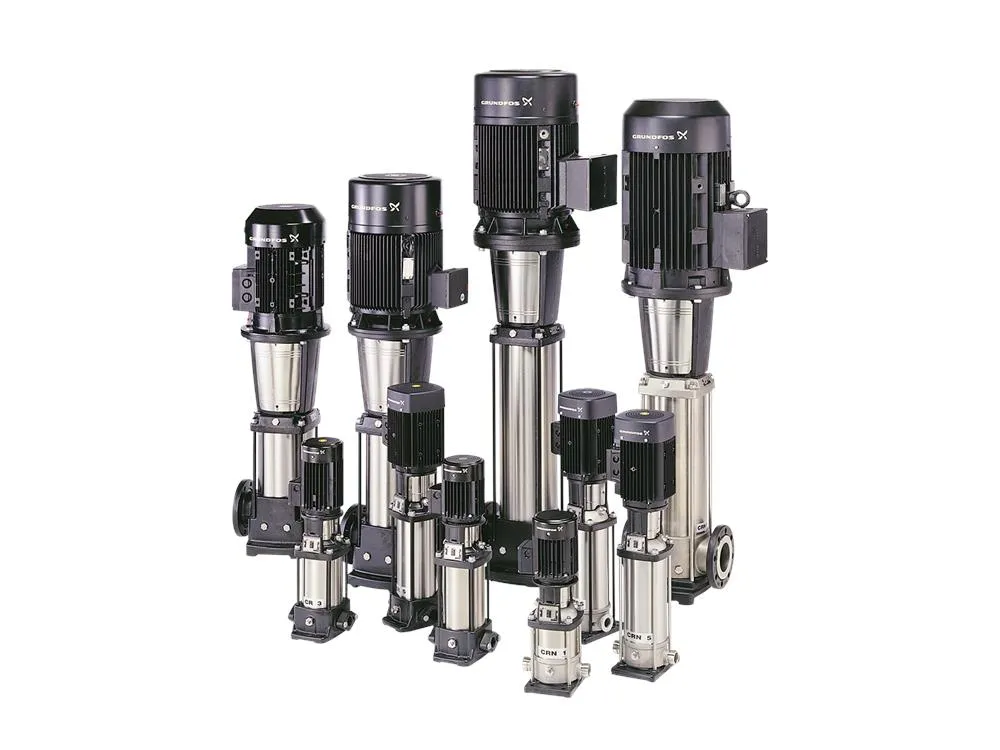

Grundfos CRI 20 304ss Vertical Multistage Pumps (Max 333 LPM)

The Grundfos CRI pump is an in-line, multi-stage pump available in a wide variety of flow and pressure sizes. Built from AISI 304 grade stainless steel, the CRI is ideally suited for water and other non-corrosive liquids. Use the CRI for liquid transfer, glycol, circulation systems and pressure boosting of cold or hot water and slightly aggressive liquids.

Good Corrosion Resistance - All CRI wetted parts are manufactured in AISI 304 stainless steel for good corrosion resistance in most environments.
High Hydraulic Efficiency - Performance is optimised from fluid mechanics insights provided by extensive simulation-driven design and verification.
Optimal Motor Utilisation - The standard product range is optimised for maximum utilisation of the motor’s power output.
Versatile Solution - For deep-well pumping, specialised pumps are available for small water supply systems where water is pumped from depths down to 90 metres.

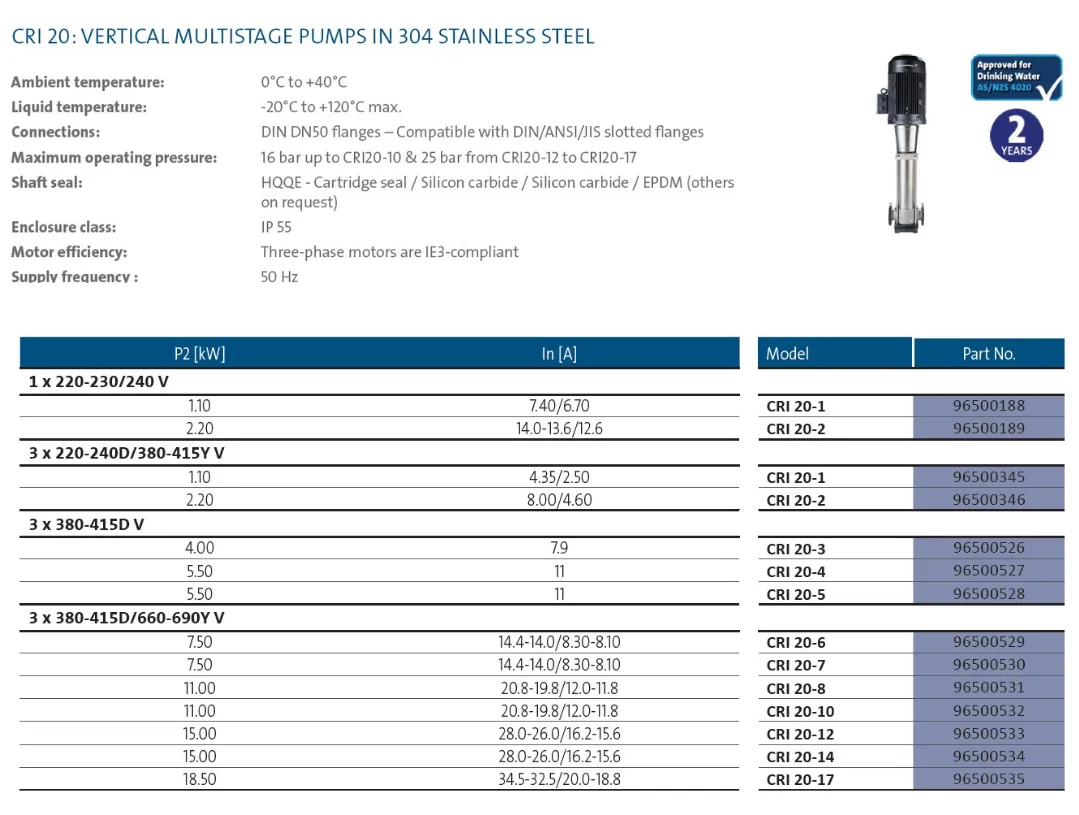

SPECIFICATIONS

Impellers: 304 stainless steel
Intermediate casings: 304 stainless steel
Outer casing: 304 stainless steel
Bottom casing base: 316 stainless steel
Top casing: 304 stainless steel
Shaft: 304 stainless steel
Motor Bracket: Cast iron
Mechanical seal: HQQE
Liner Rings: 304 stainless steel

FEATURES

High efficiency
Connection Size: Flange DIN DN 50
Space-saving
Reliability
Service-friendly
Suitable for slightly aggressive liquids
High corrosion resistance
Single-pump solution making high pressures possible.
Vertical multi stage pump with 304 SS wetted construction.
Fitted with IP55 motor
Fitted with EPDM elastomers
Pumps certified to AS/NZS 4020 for use with potable water

OPTIONAL EXTRAS (ADD-ONS)

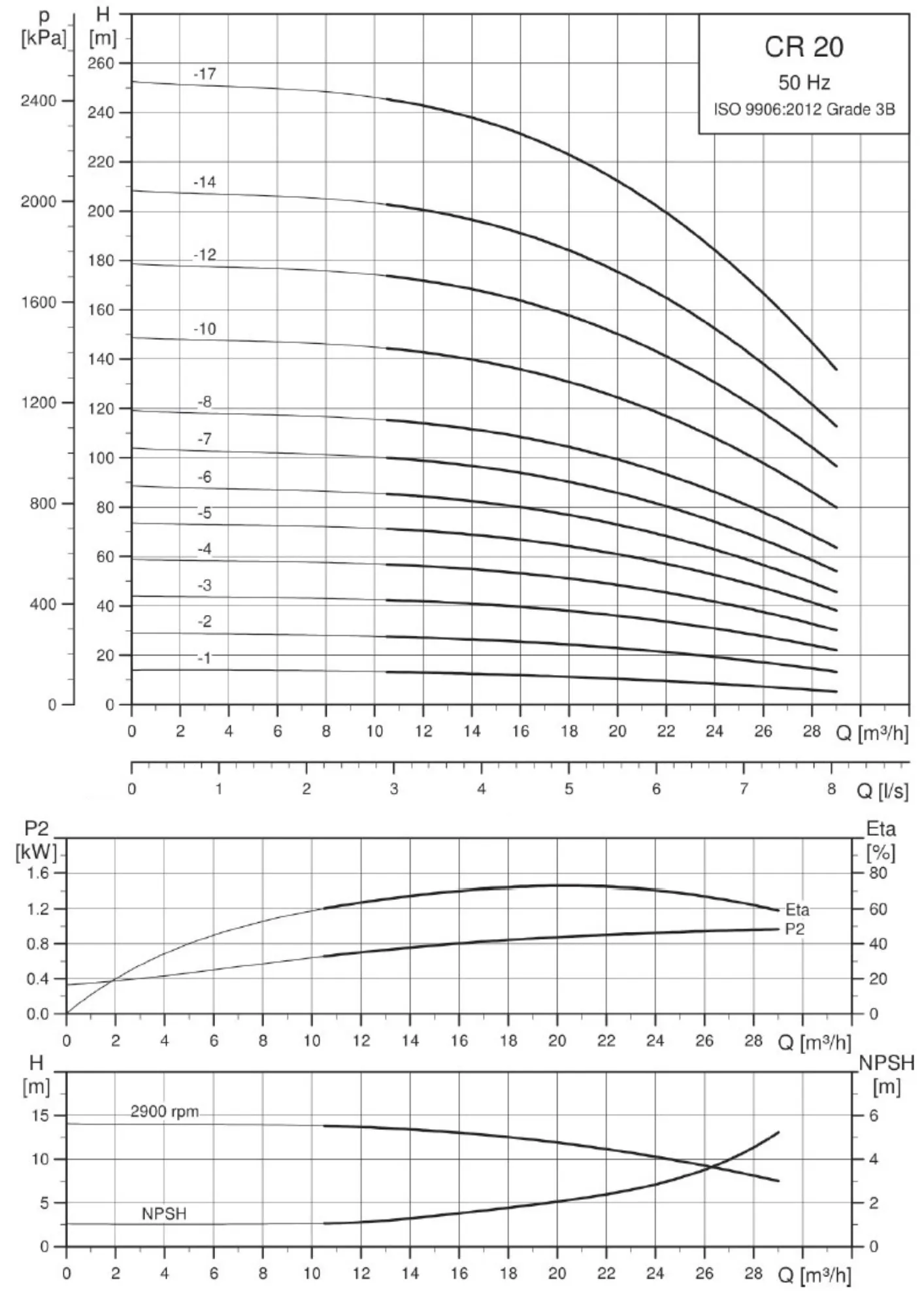

MODELS AVAILABLE

PART NUMBER	DESCRIPTION
92983569	Grundfos CRI 20-01 1.10kW - Single Phase
92982745	Grundfos CRI 20-02 2.20kW - Single Phase

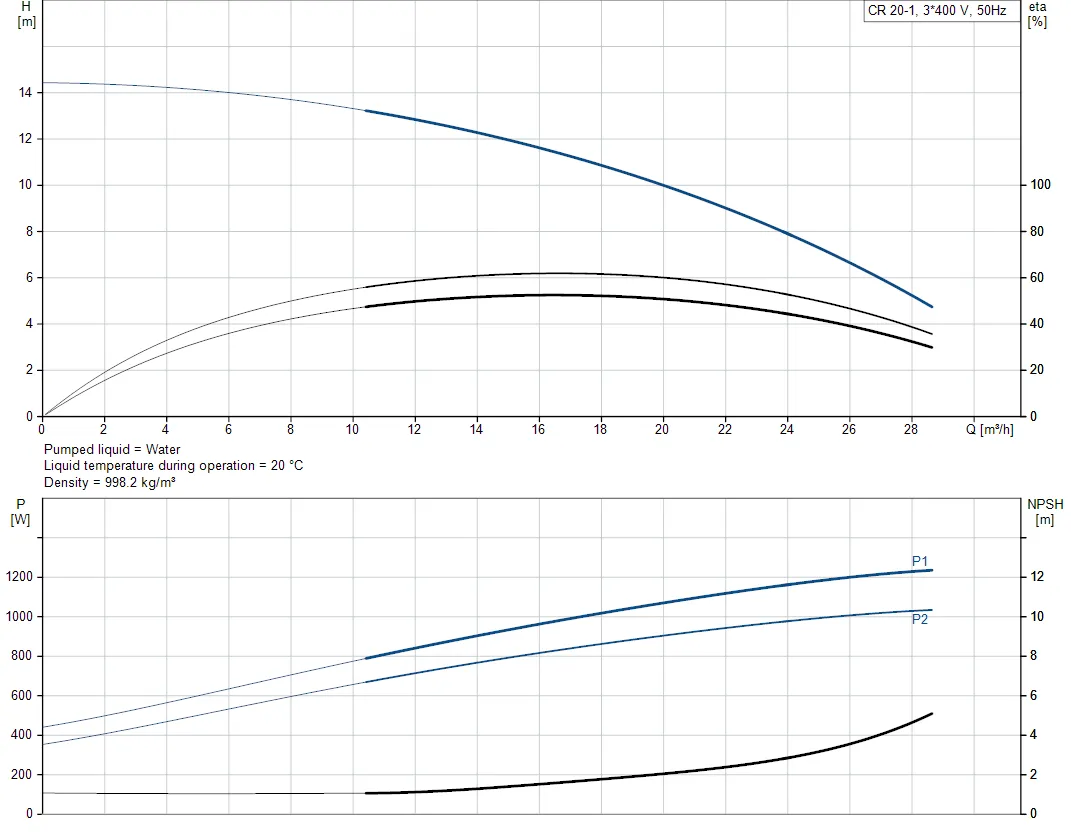

96500345	Grundfos CRI 20-01 1.10kW - Three Phase

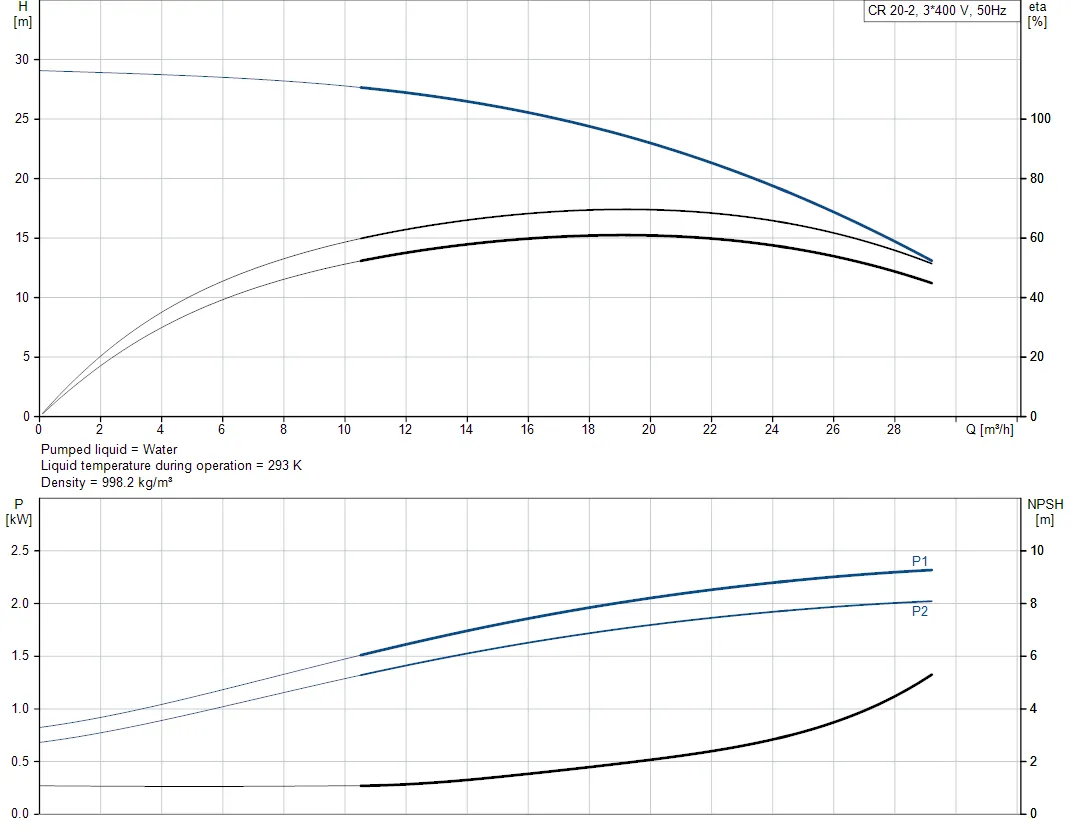

96500346	Grundfos CRI 20-02 2.20kW - Three Phase

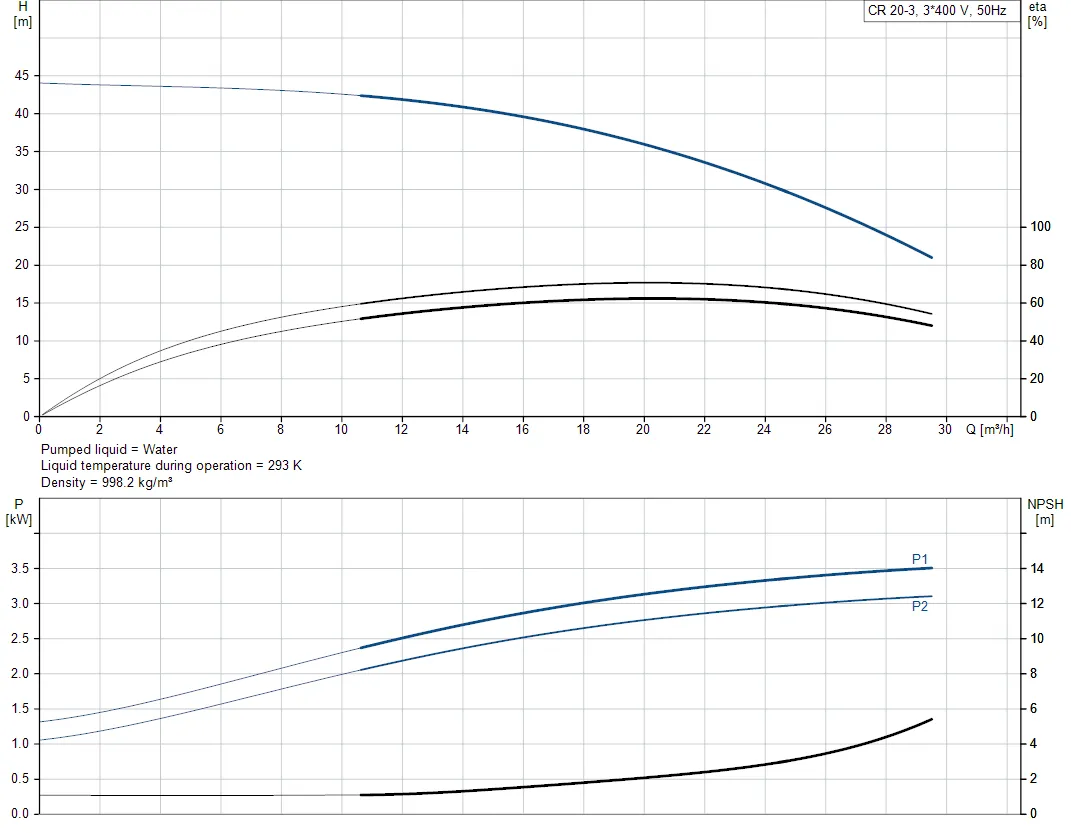

96500526	Grundfos CRI 20-03 4.00kW - Three Phase

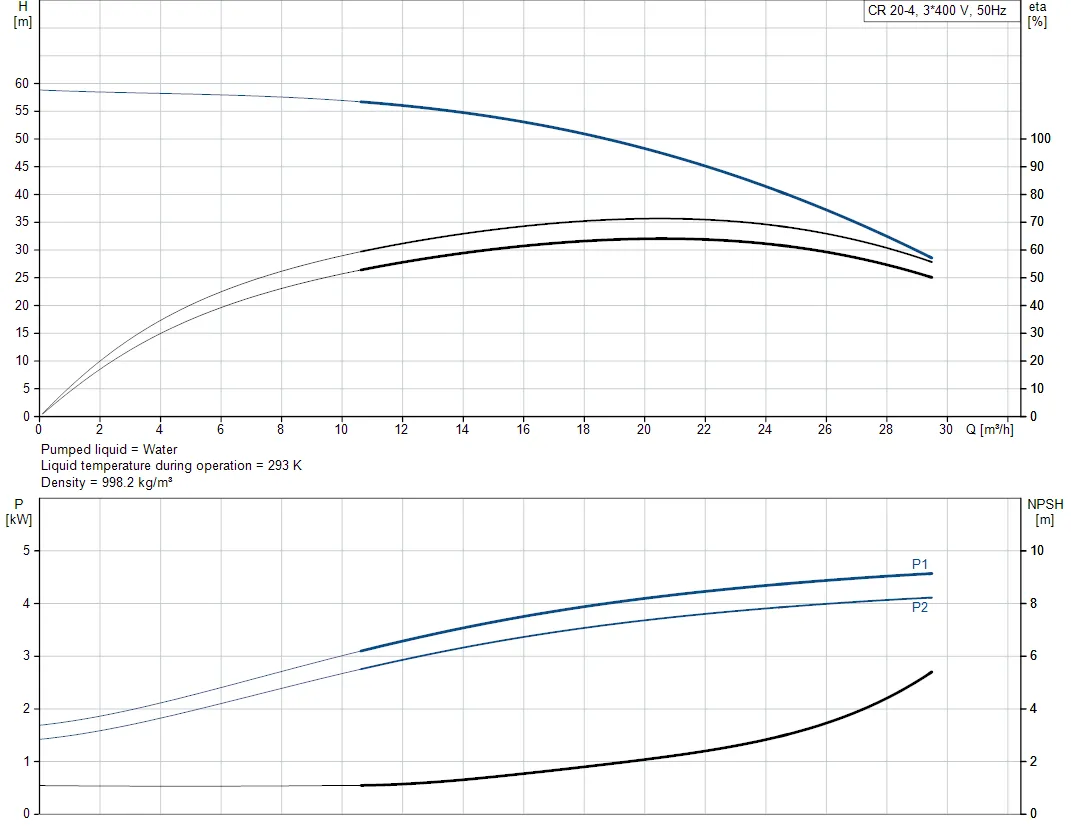

96500527	Grundfos CRI 20-04 5.50kW - Three Phase

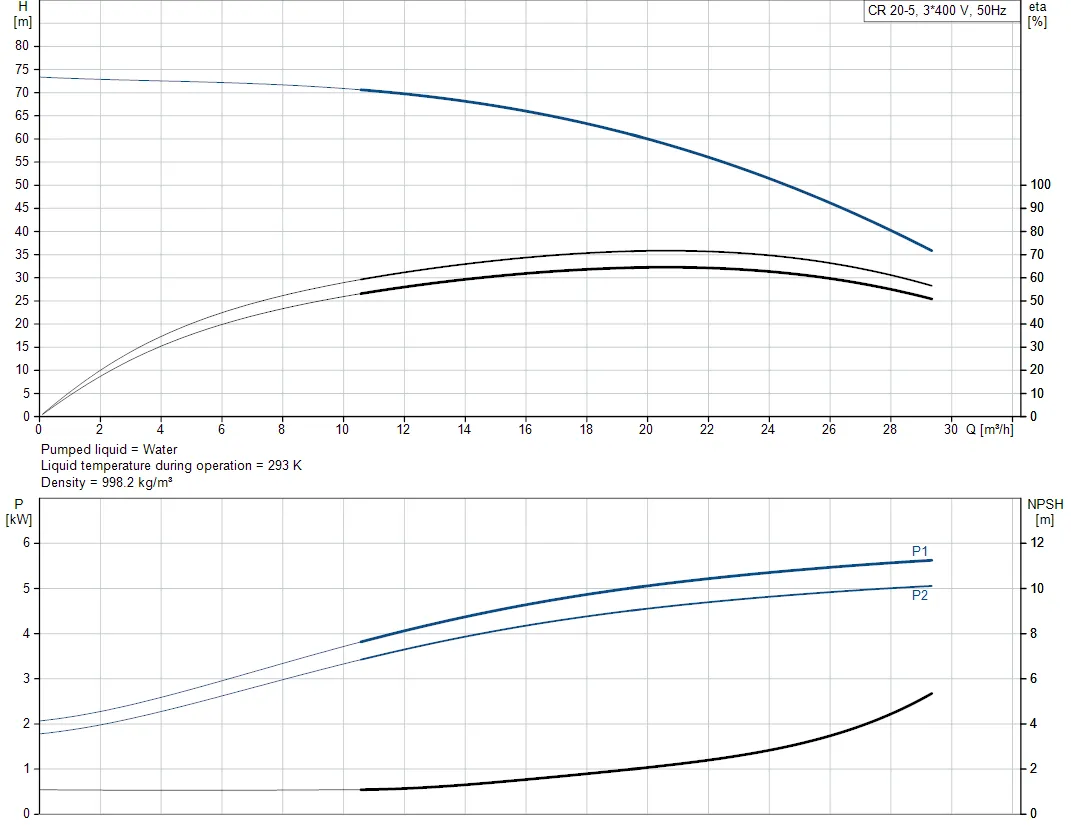

96500528	Grundfos CRI 20-05 5.50kW - Three Phase

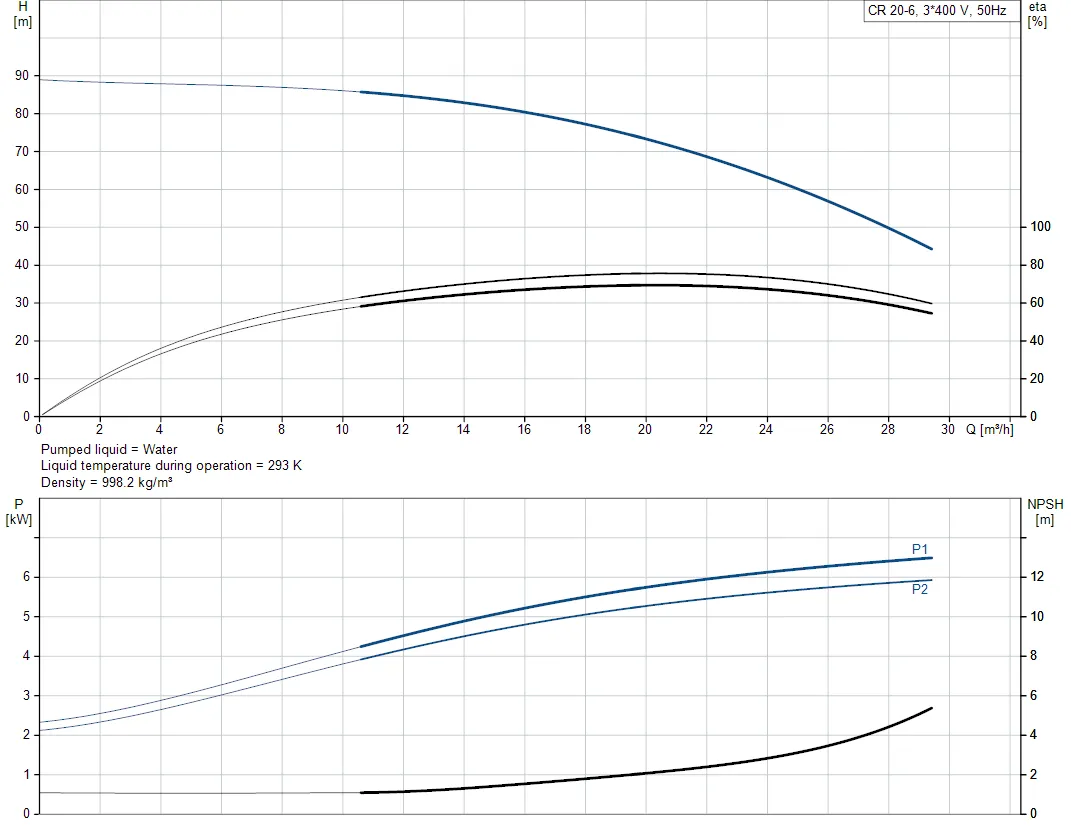

96500529	Grundfos CRI 20-06 7.50kW - Three Phase

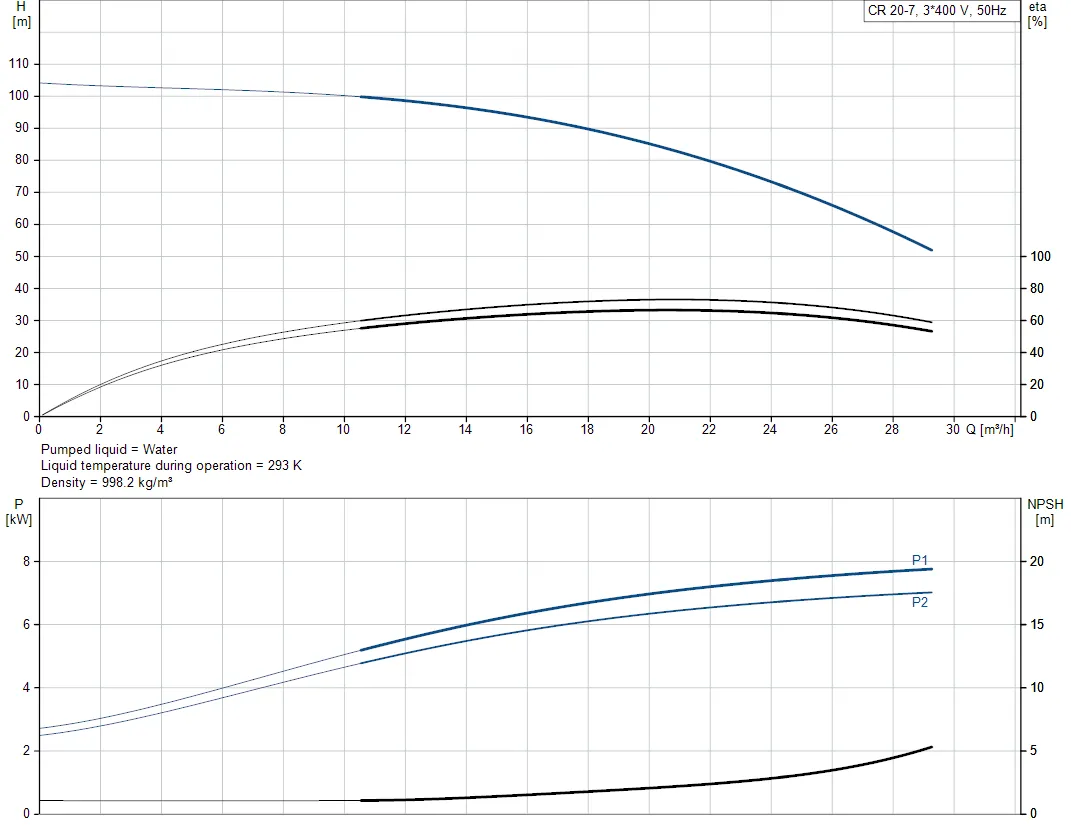

96500530	Grundfos CRI 20-07 7.50kW - Three Phase

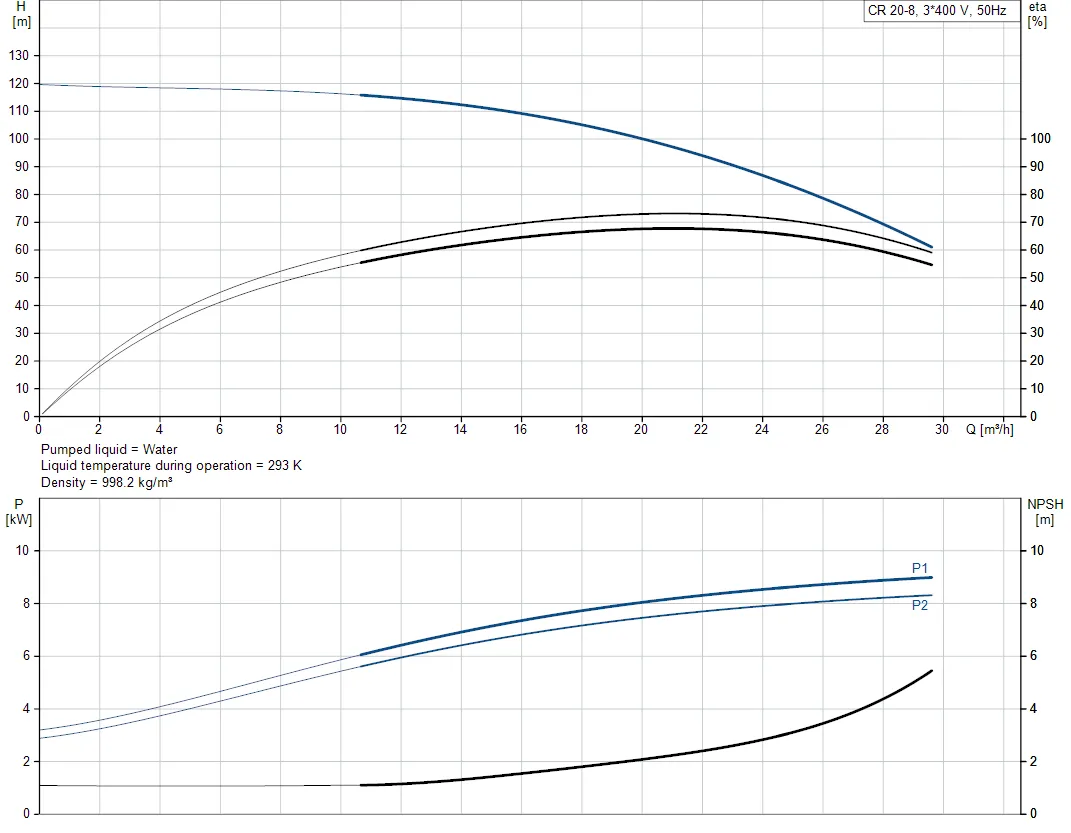

96500531	Grundfos CRI 20-08 11.00kW - Three Phase

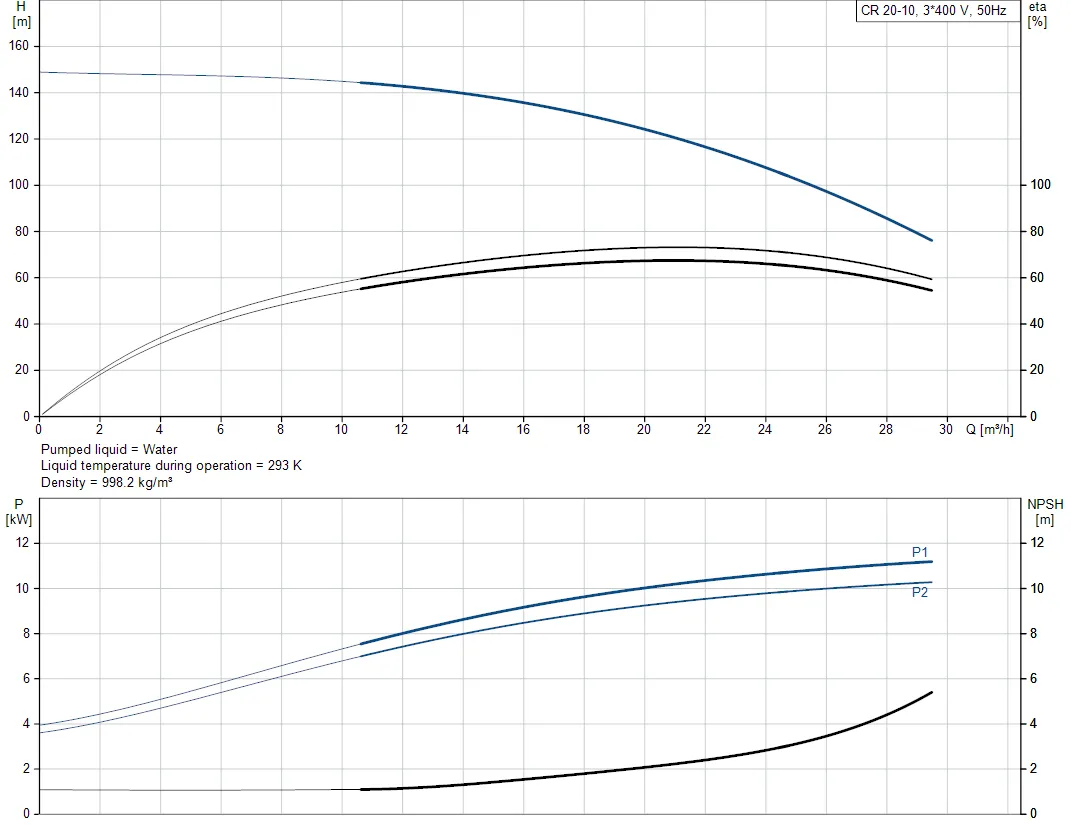

96500532	Grundfos CRI 20-10 11.00kW - Three Phase

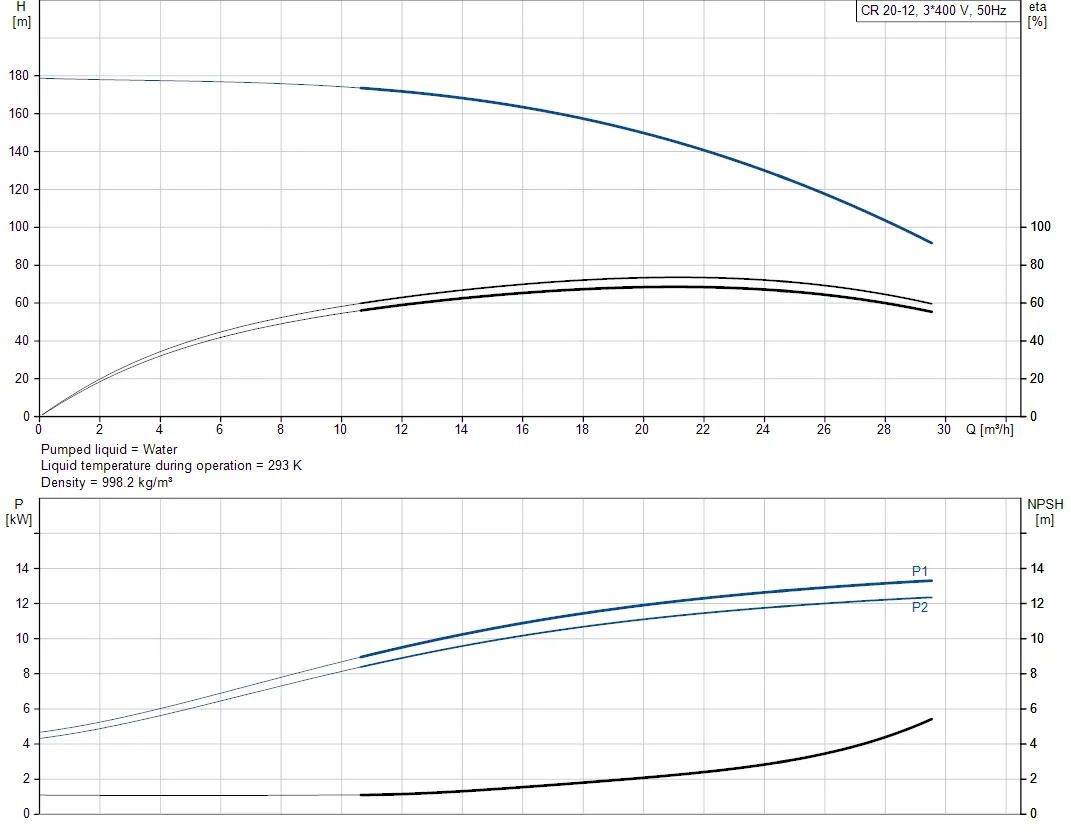

96500533	Grundfos CRI 20-12 15.00kW - Three Phase
96500534	Grundfos CRI 20-14 15.00kW - Three Phase

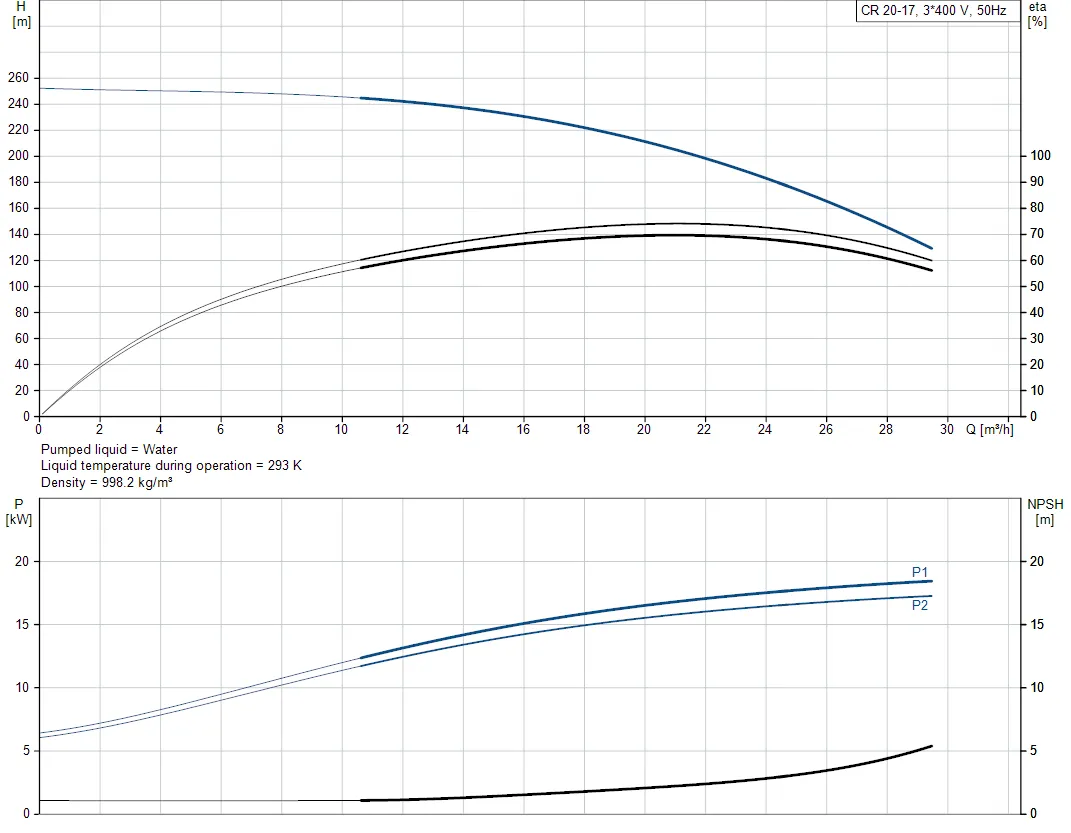

96500535	Grundfos CRI 20-17 18.50kW - Three Phase
