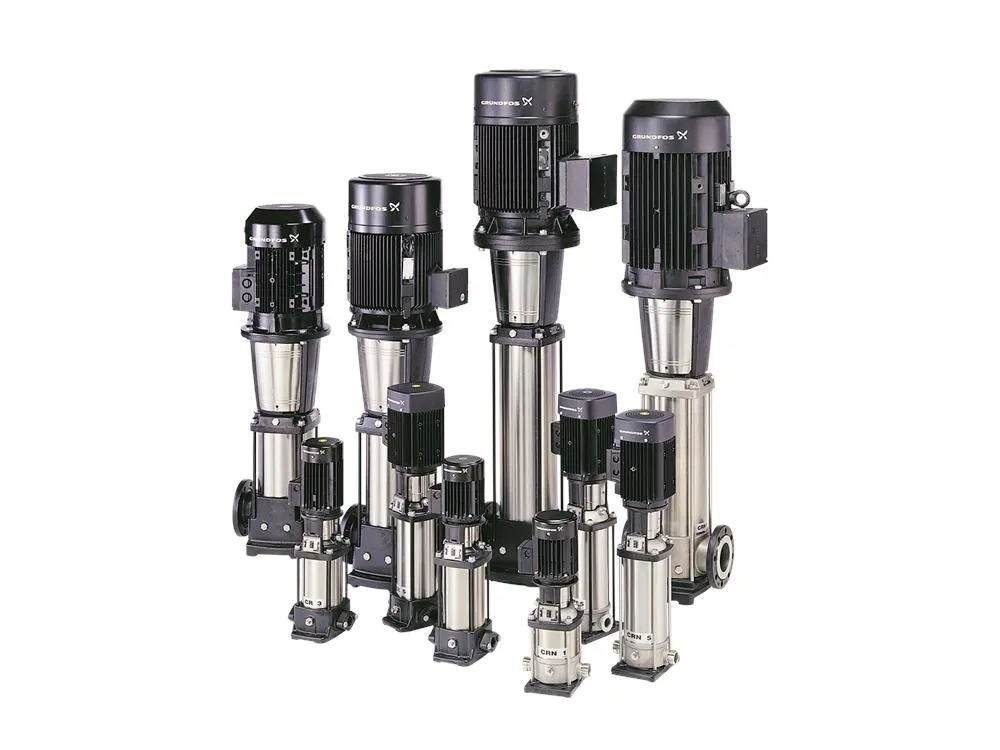

Grundfos CRI 1S 304ss Vertical Multistage Pumps (Max 15 LPM)

The Grundfos CRI pump is an in-line, multi-stage pump available in a wide variety of flow and pressure sizes. Built from AISI 304 grade stainless steel, the CRI is ideally suited for water and other non-corrosive liquids. Use the CRI for liquid transfer, glycol, circulation systems and pressure boosting of cold or hot water and slightly aggressive liquids.

Good Corrosion Resistance - All CRI wetted parts are manufactured in AISI 304 stainless steel for good corrosion resistance in most environments.
High Hydraulic Efficiency - Performance is optimised from fluid mechanics insights provided by extensive simulation-driven design and verification.
Optimal Motor Utilisation - The standard product range is optimised for maximum utilisation of the motor’s power output.
Versatile Solution - For deep-well pumping, specialised pumps are available for small water supply systems where water is pumped from depths down to 90 metres.

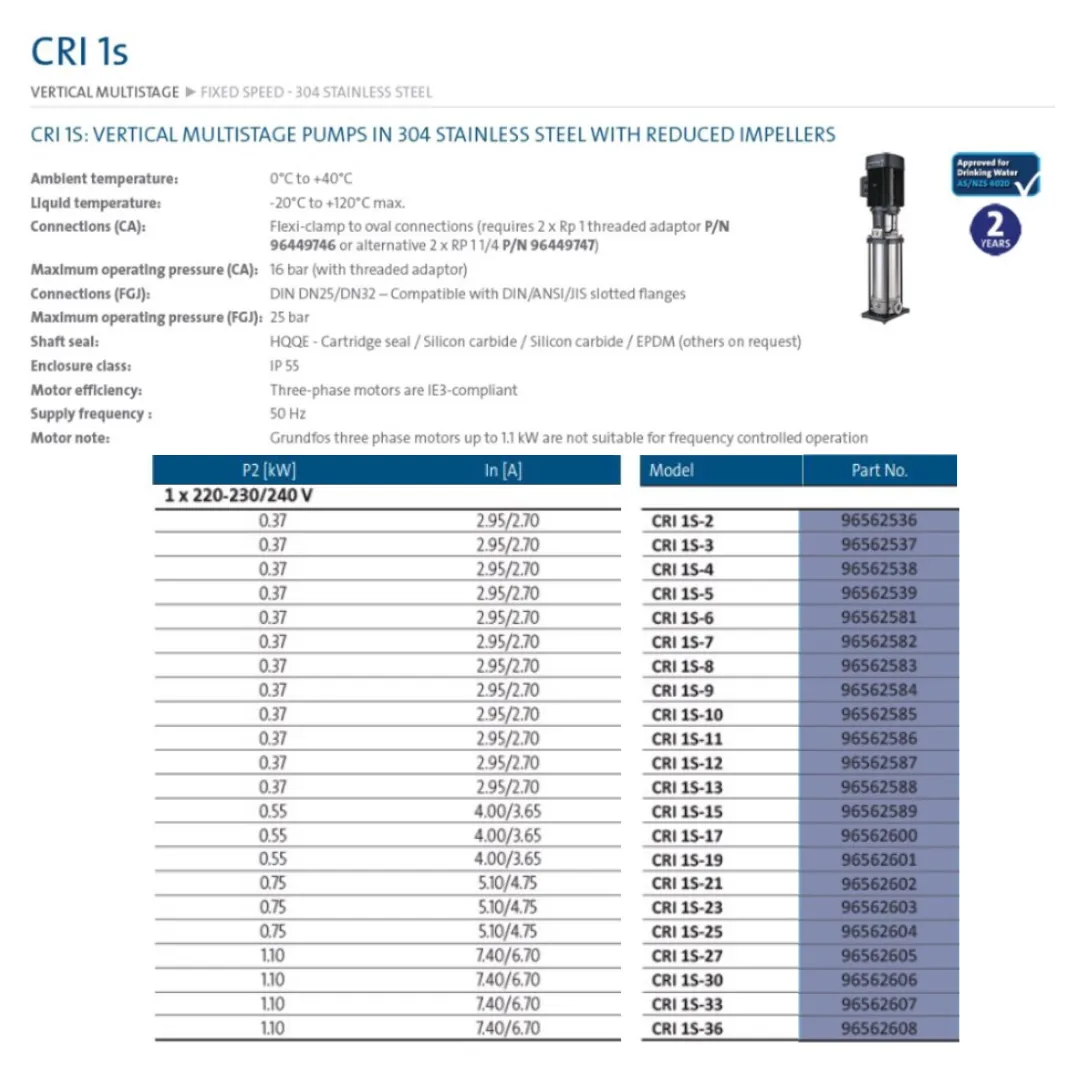

SPECIFICATIONS

Impellers: 304 stainless steel
Intermediate casings: 304 stainless steel
Outer casing: 304 stainless steel
Bottom casing base: 316 stainless steel
Top casing: 304 stainless steel
Shaft: 304 stainless steel
Motor Bracket: Cast iron
Mechanical seal: HQQE
Liner Rings: 304 stainless steel

FEATURES

High efficiency
Connection Size: Flange DIN DN 25/32
Space-saving
Reliability
Service-friendly
Suitable for slightly aggressive liquids
High corrosion resistance
Single-pump solution making high pressures possible.
Vertical multi stage pump with 304 SS wetted construction.
Fitted with IP55 motor
Fitted with EPDM elastomers
Pumps certified to AS/NZS 4020 for use with potable water

OPTIONAL EXTRAS (ADD-ONS)

MODELS AVAILABLE

92899941	Grundfos CRI 1S-2 0.37kW - Single Phase
92899942	Grundfos CRI 1S-3 0.37kW - Single Phase

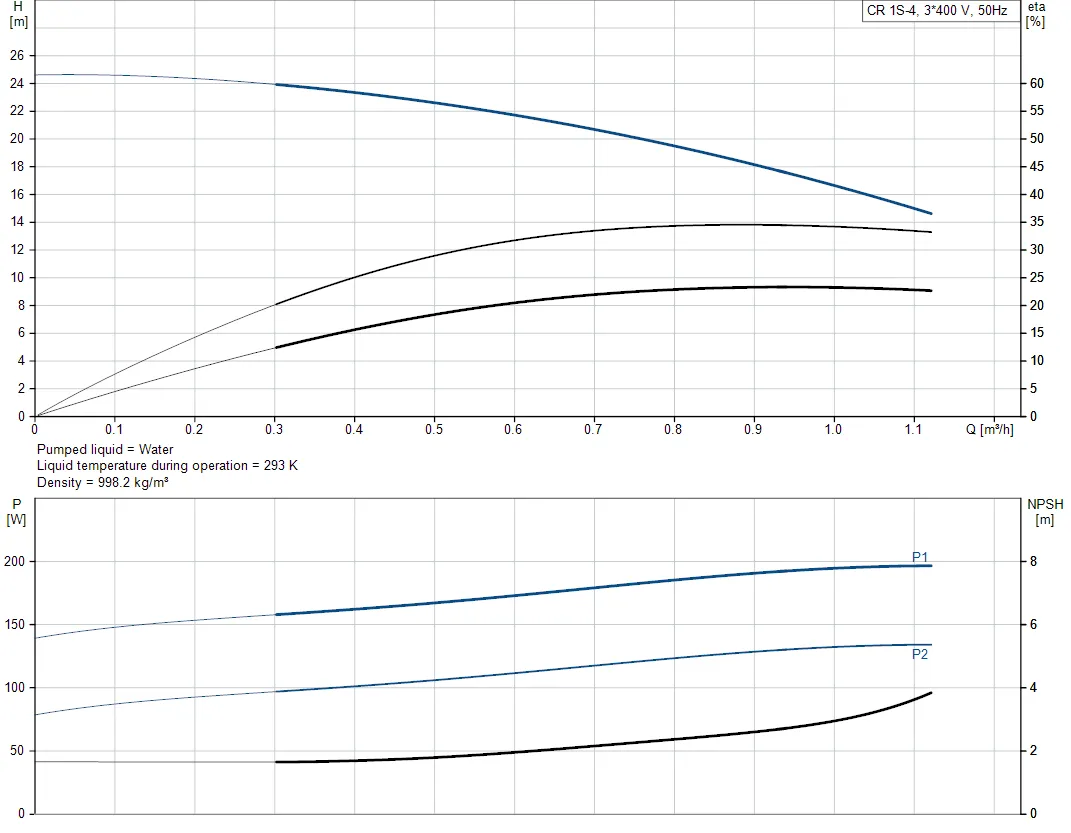

92899943	Grundfos CRI 1S-4 0.37kW - Single Phase

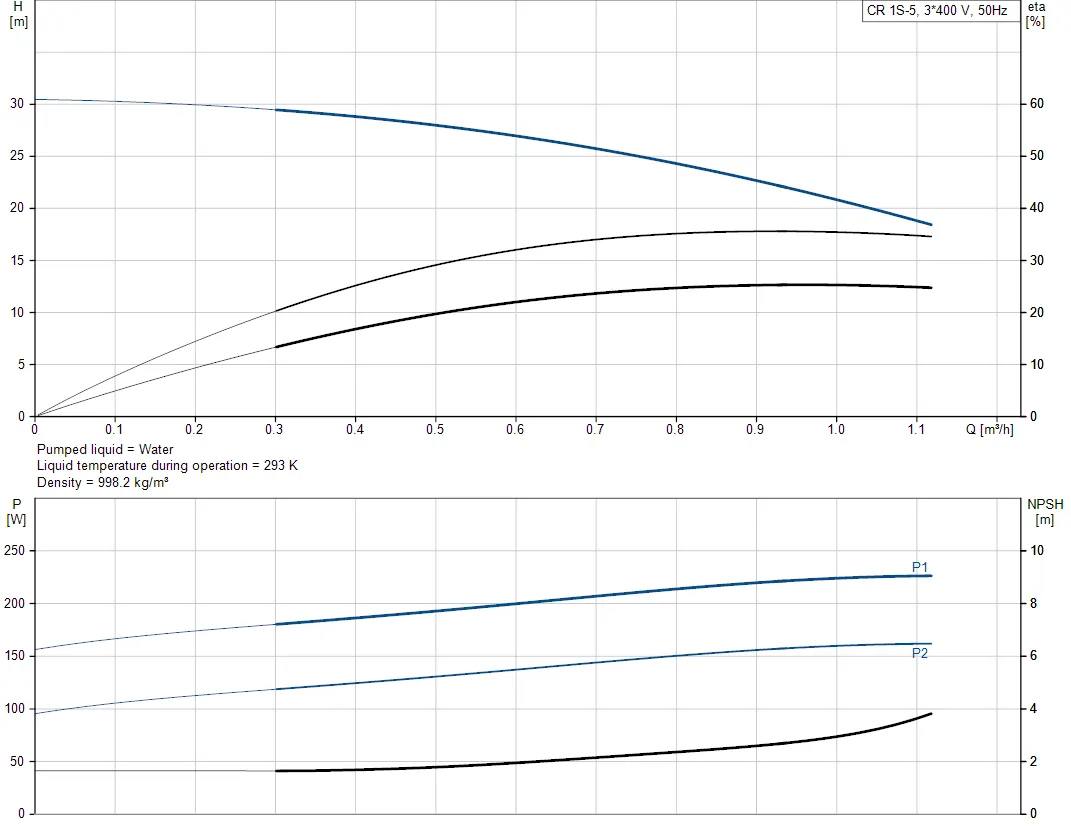

92899944	Grundfos CRI 1S-5 0.37kW - Single Phase
92899945	Grundfos CRI 1S-6 0.37kW - Single Phase

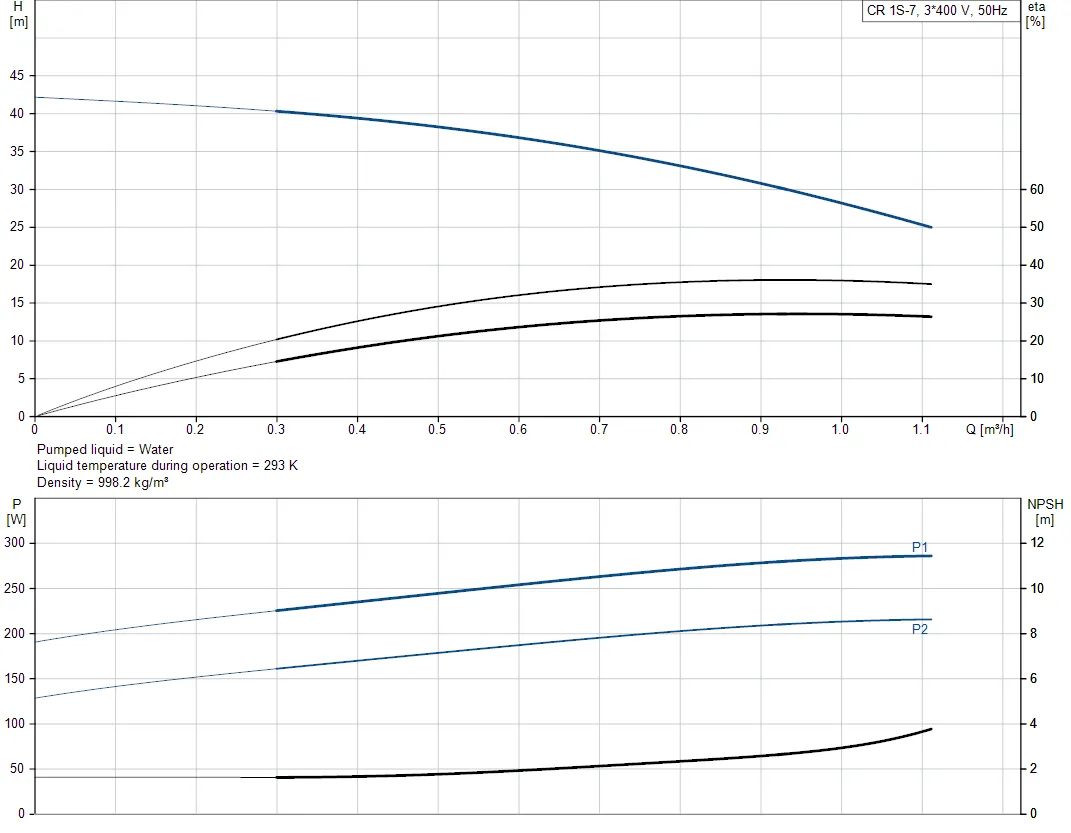

92899946	Grundfos CRI 1S-7 0.37kW - Single Phase
92899947	Grundfos CRI 1S-8 0.37kW - Single Phase
92899948	Grundfos CRI 1S-9 0.37kW - Single Phase
92899949	Grundfos CRI 1S-10 0.37kW - Single Phase
92899950	Grundfos CRI 1S-11 0.37kW - Single Phase
92899951	Grundfos CRI 1S-12 0.37kW - Single Phase

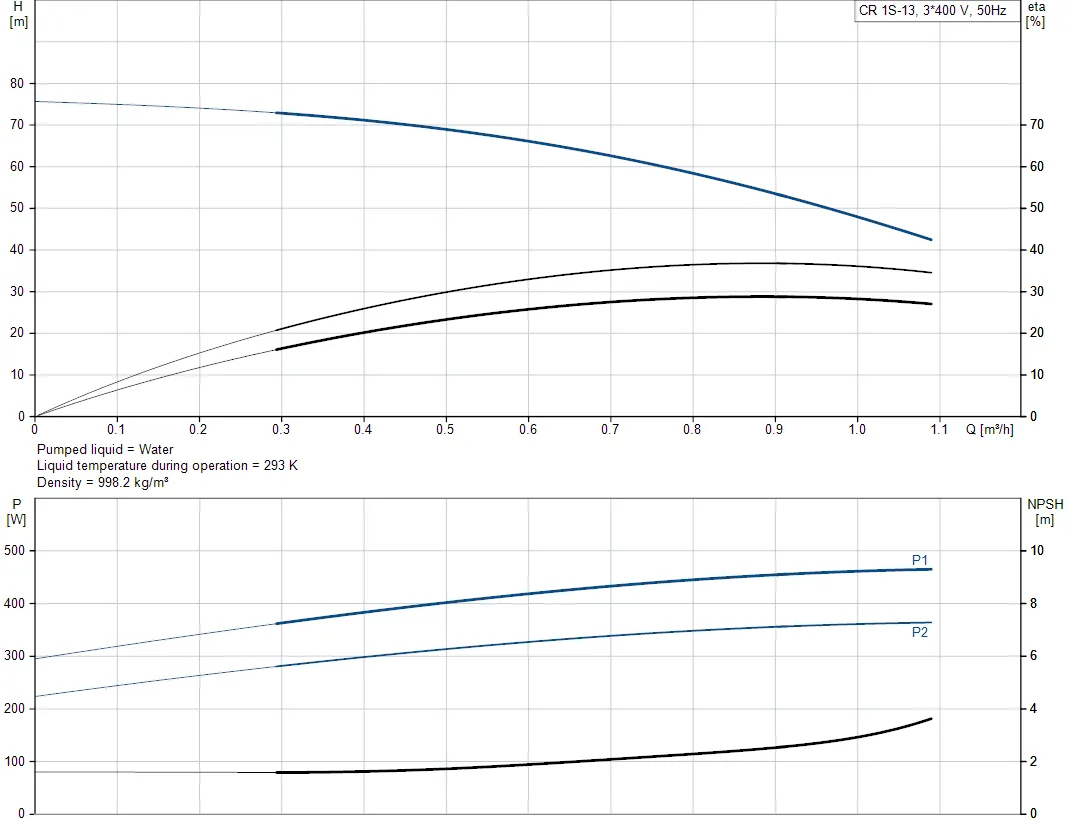

92899952	Grundfos CRI 1S-13 0.37kW - Single Phase
92899954	Grundfos CRI 1S-15 0.55kW - Single Phase
92899955	Grundfos CRI 1S-17 0.55kW - Single Phase
92899956	Grundfos CRI 1S-19 0.55kW - Single Phase
92899958	Grundfos CRI 1S-21 0.75kW - Single Phase
92899959	Grundfos CRI 1S-23 0.75kW - Single Phase
92899960	Grundfos CRI 1S-25 0.75kW - Single Phase
92900168	Grundfos CRI 1S-27 1.10kW - Single Phase
92900169	Grundfos CRI 1S-30 1.10kW - Single Phase
92900180	Grundfos CRI 1S-33 1.10kW - Single Phase

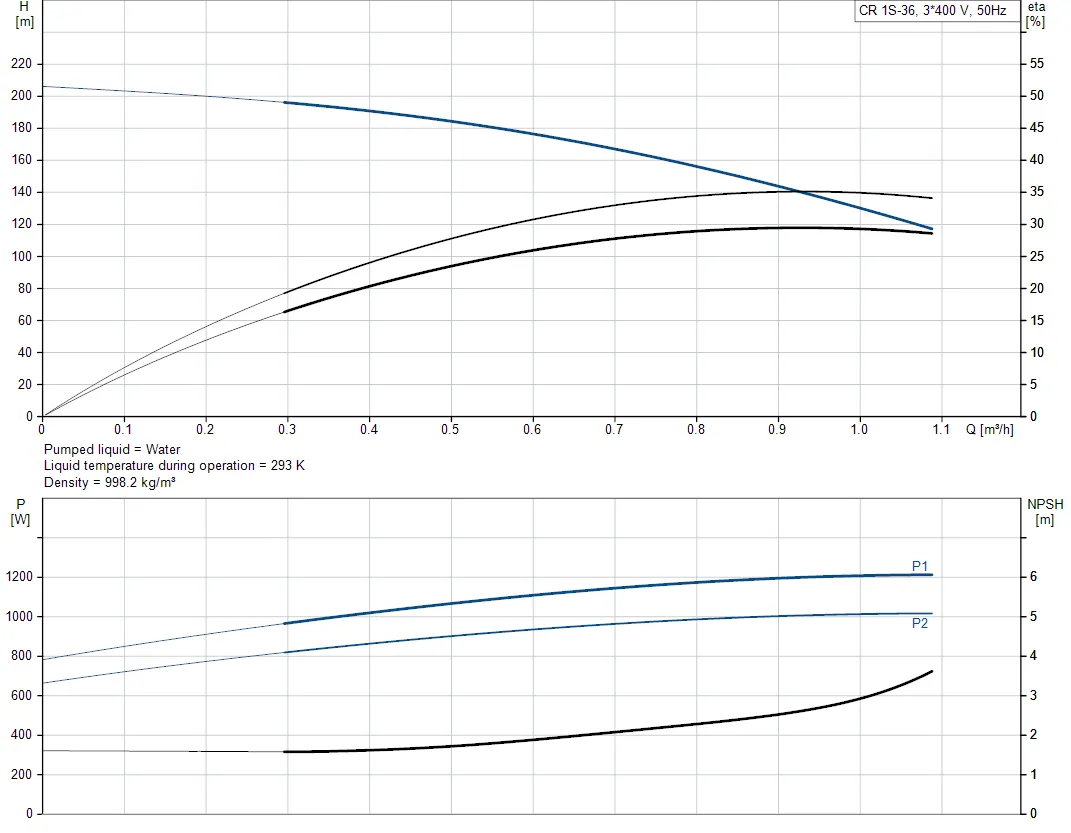

92900181	Grundfos CRI 1S-36 1.10kW - Single Phase

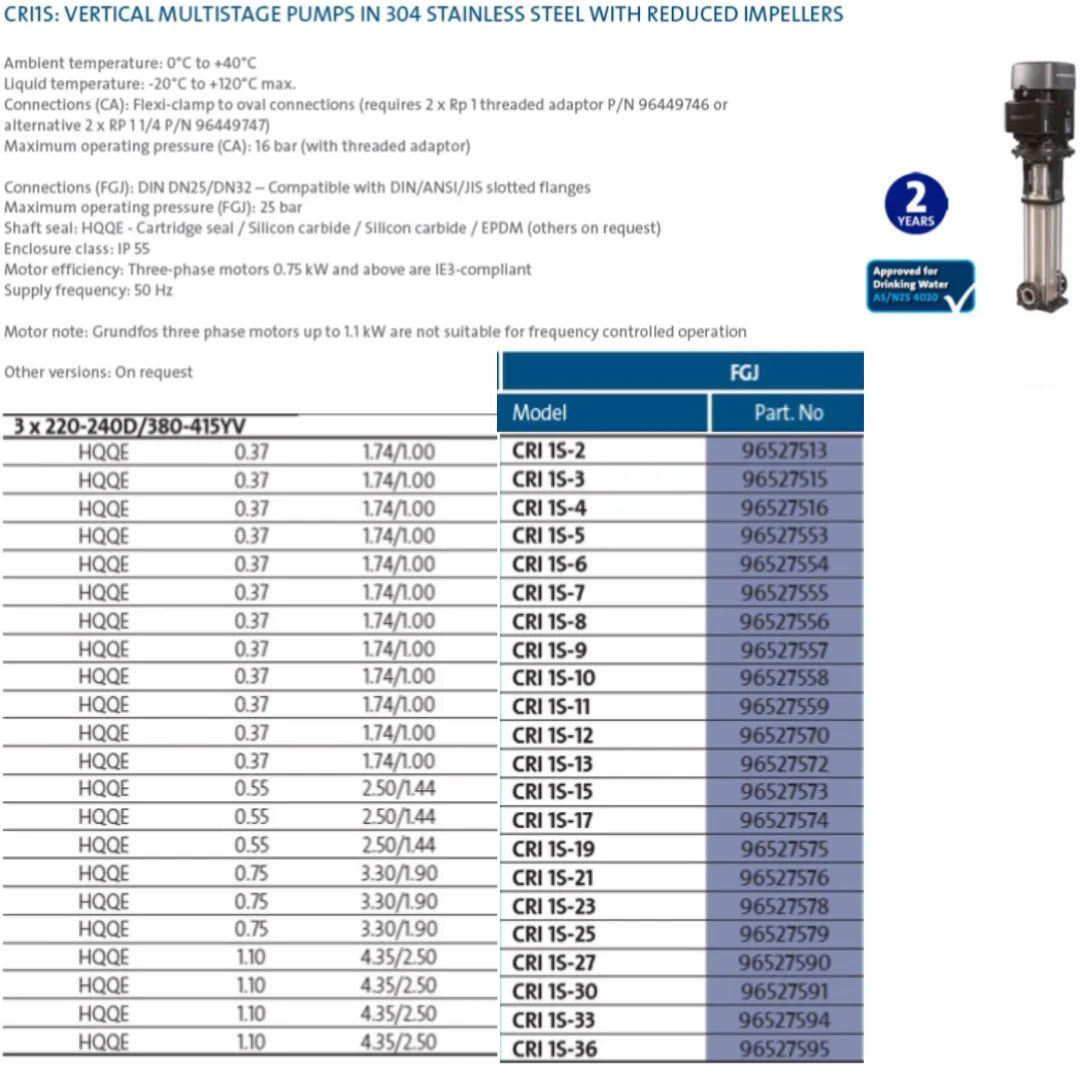

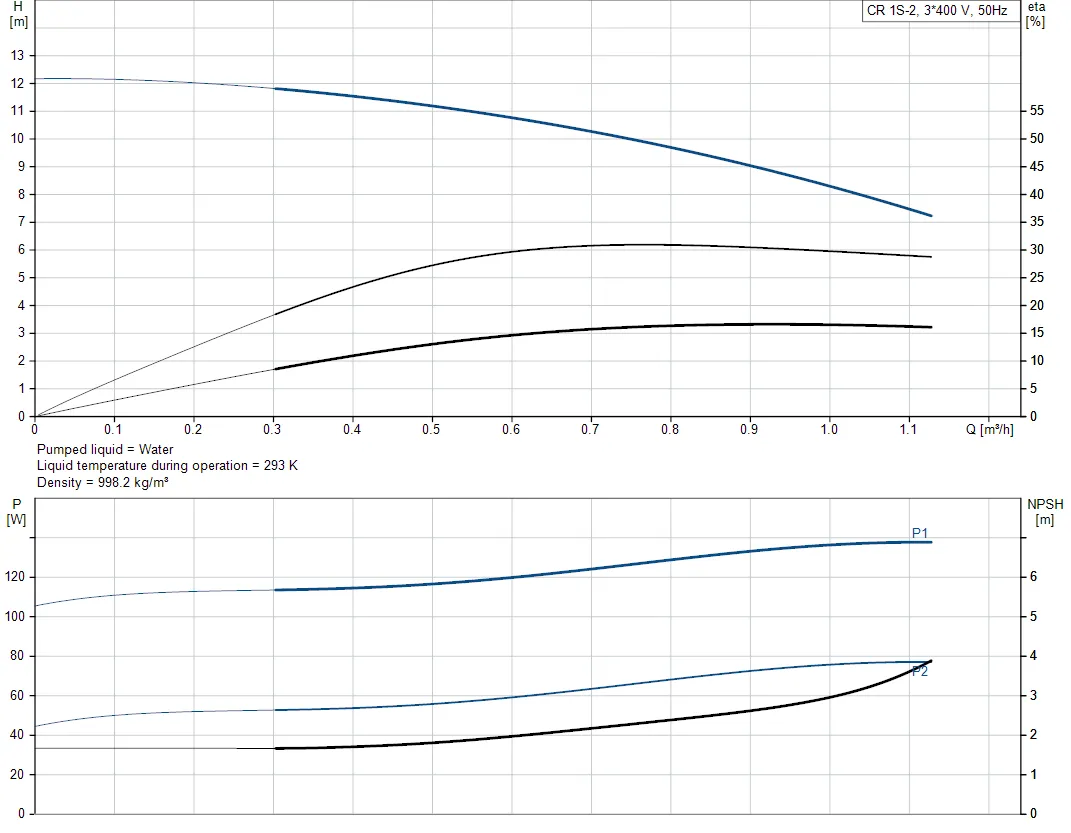

96527513	Grundfos CRI 1S-2 0.37kW - Three Phase
96527515	Grundfos CRI 1S-3 0.37kW - Three Phase
96527516	Grundfos CRI 1S-4 0.37kW - Three Phase
96527553	Grundfos CRI 1S-5 0.37kW - Three Phase

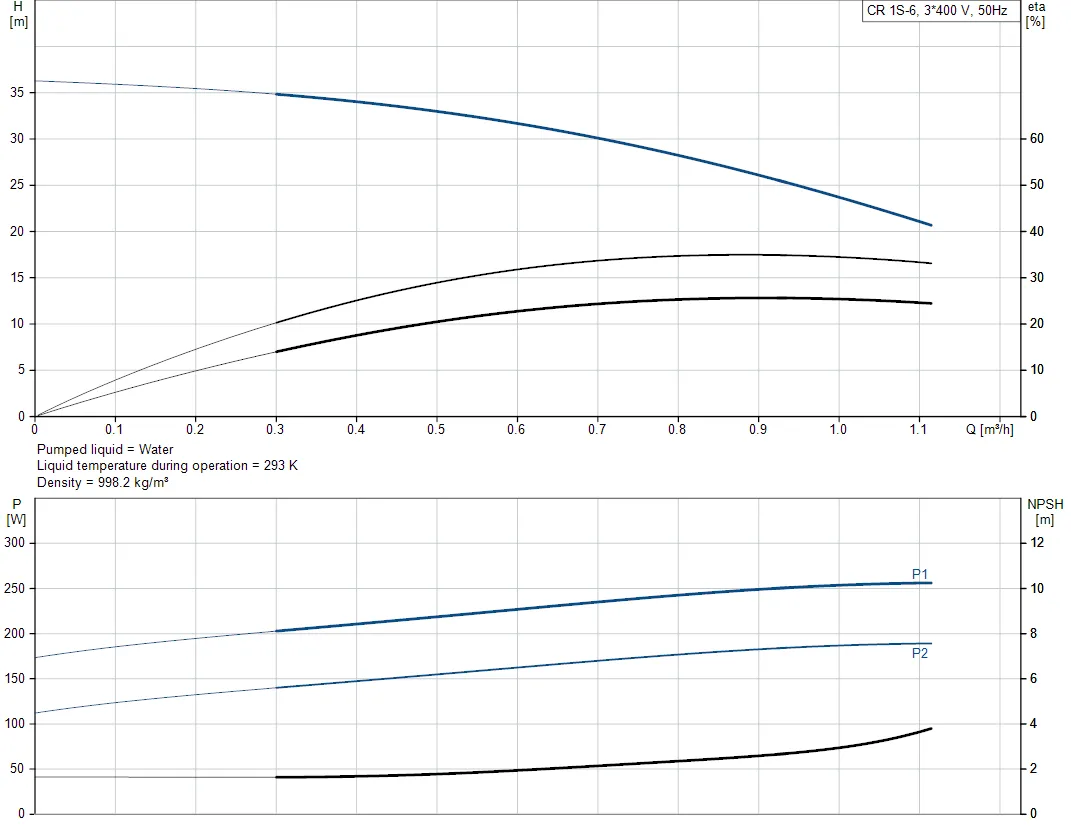

96527554	Grundfos CRI 1S-6 0.37kW - Three Phase
96527555	Grundfos CRI 1S-7 0.37kW - Three Phase
96527556	Grundfos CRI 1S-8 0.37kW - Three Phase

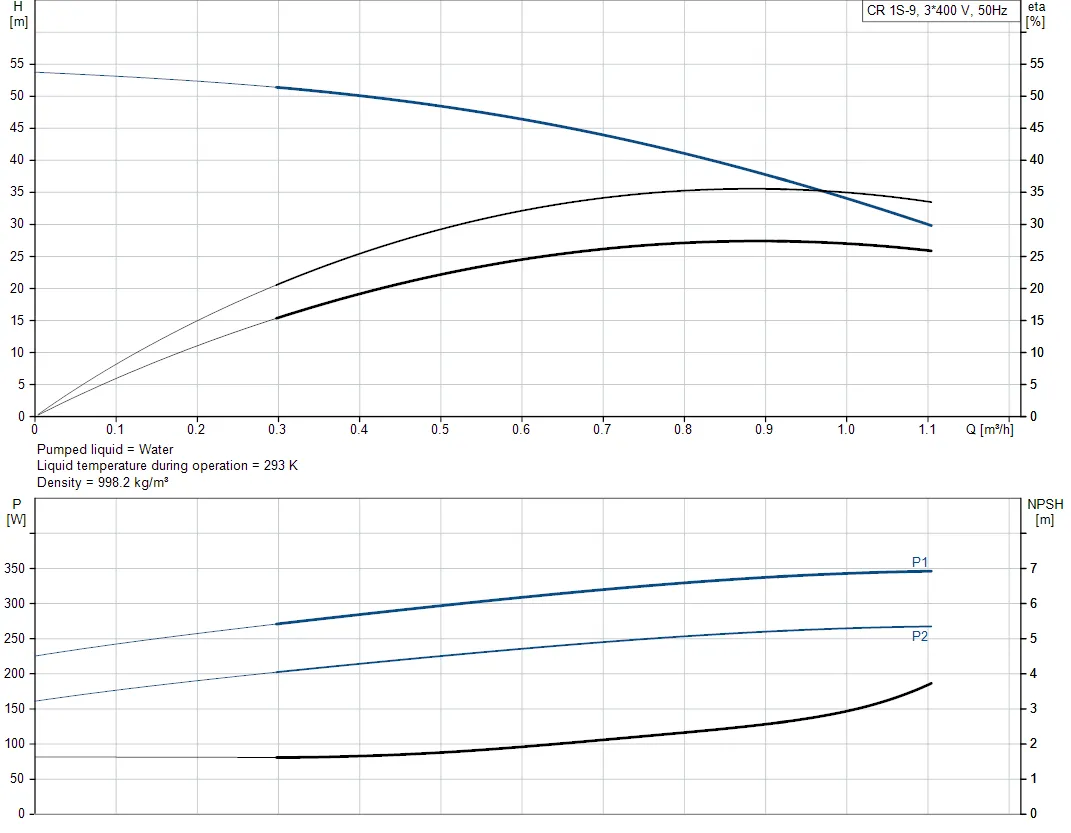

96527557	Grundfos CRI 1S-9 0.37kW - Three Phase
96527558	Grundfos CRI 1S-10 0.37kW - Three Phase

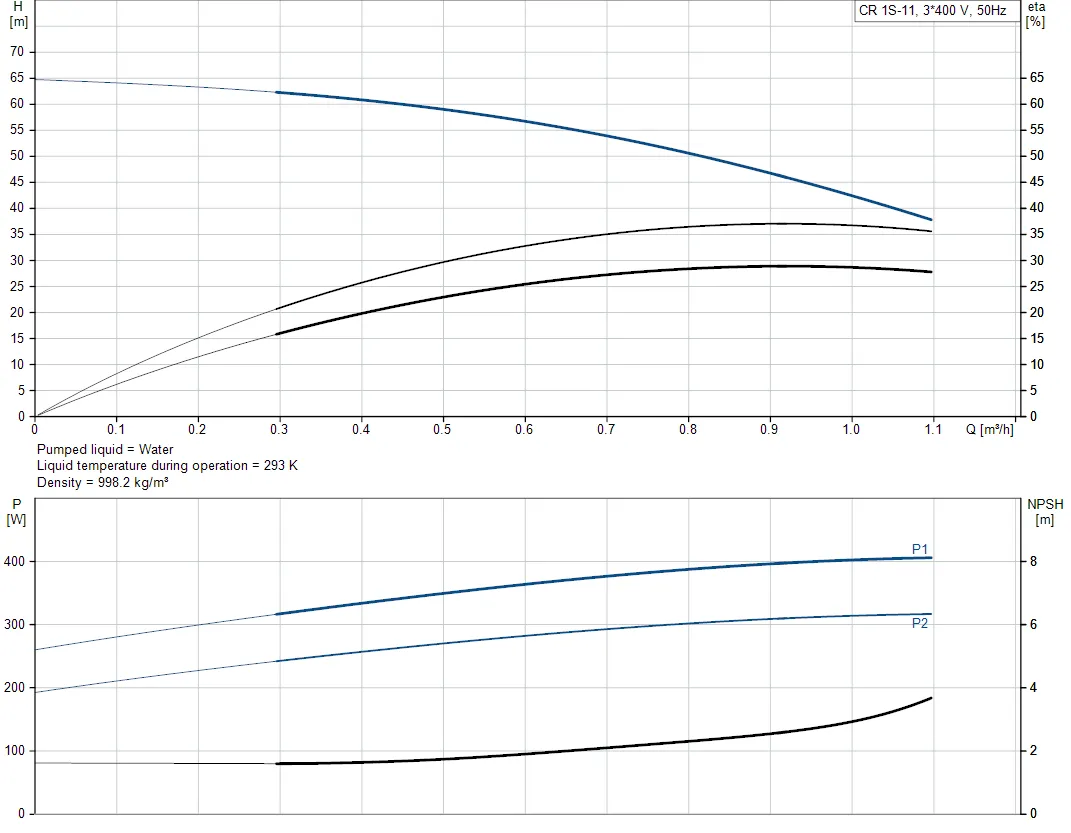

96527559	Grundfos CRI 1S-11 0.37kW - Three Phase

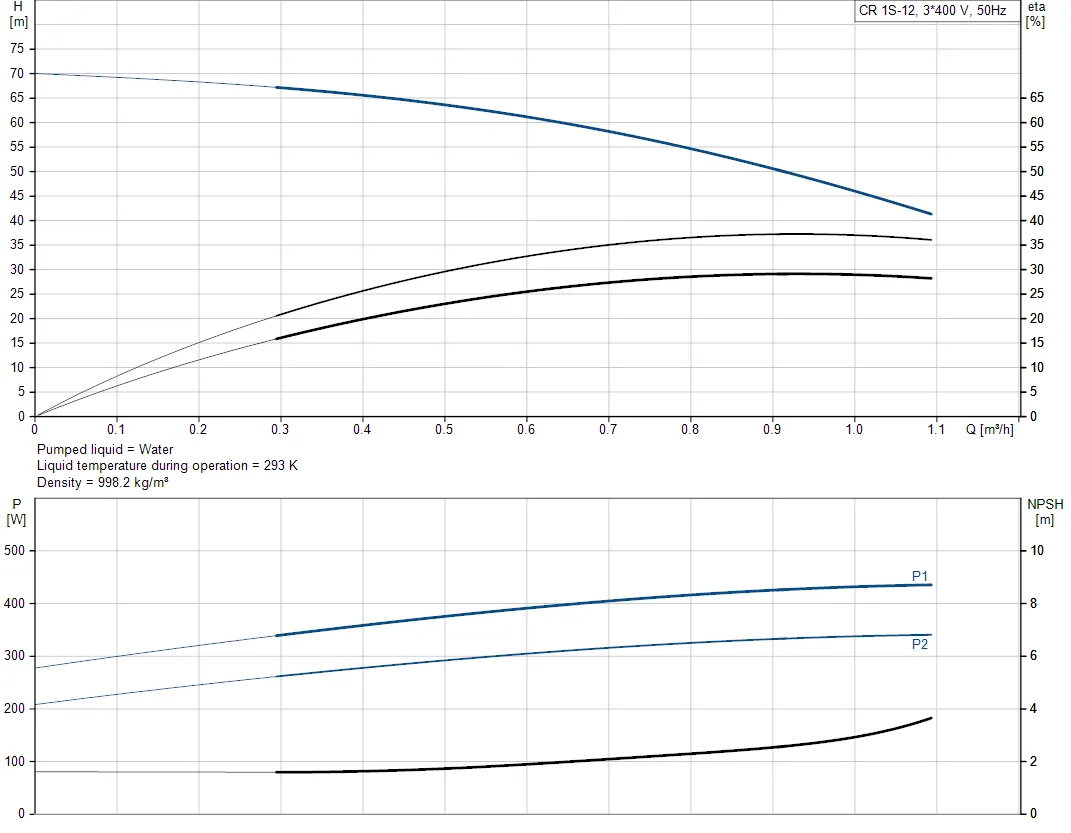

96527570	Grundfos CRI 1S-12 0.37kW - Three Phase
96527572	Grundfos CRI 1S-13 0.37kW - Three Phase

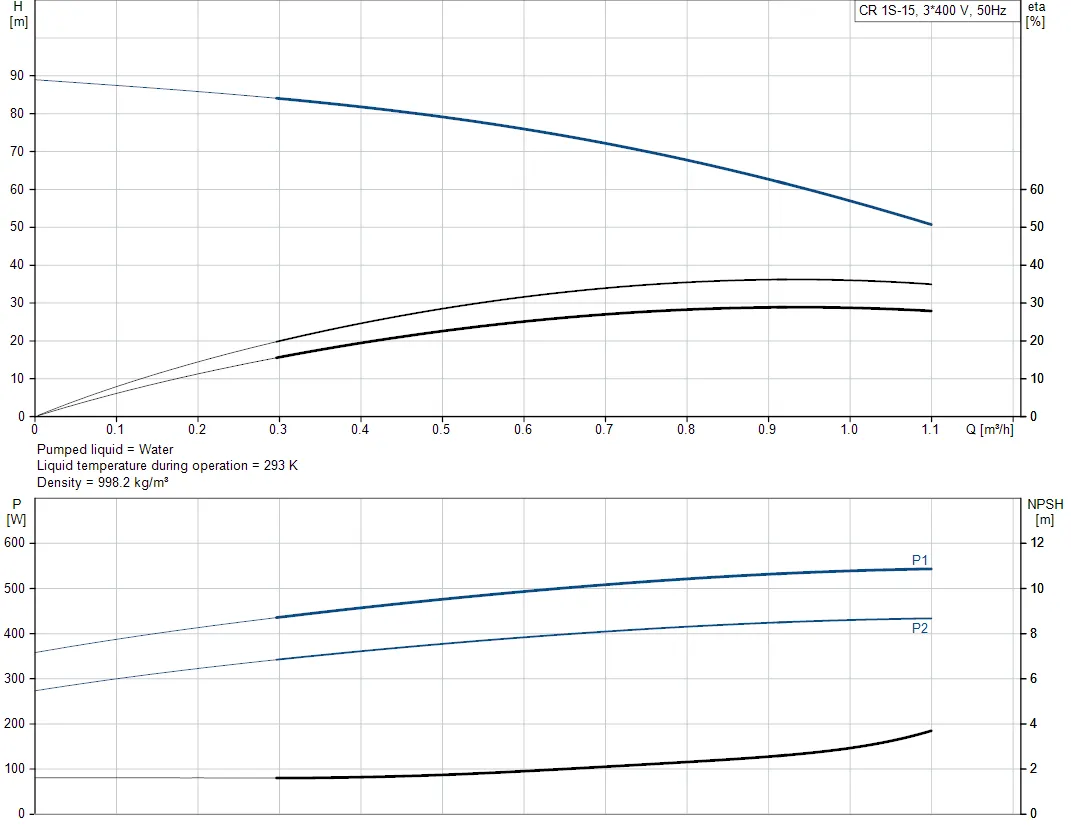

96527573	Grundfos CRI 1S-15 0.55kW - Three Phase

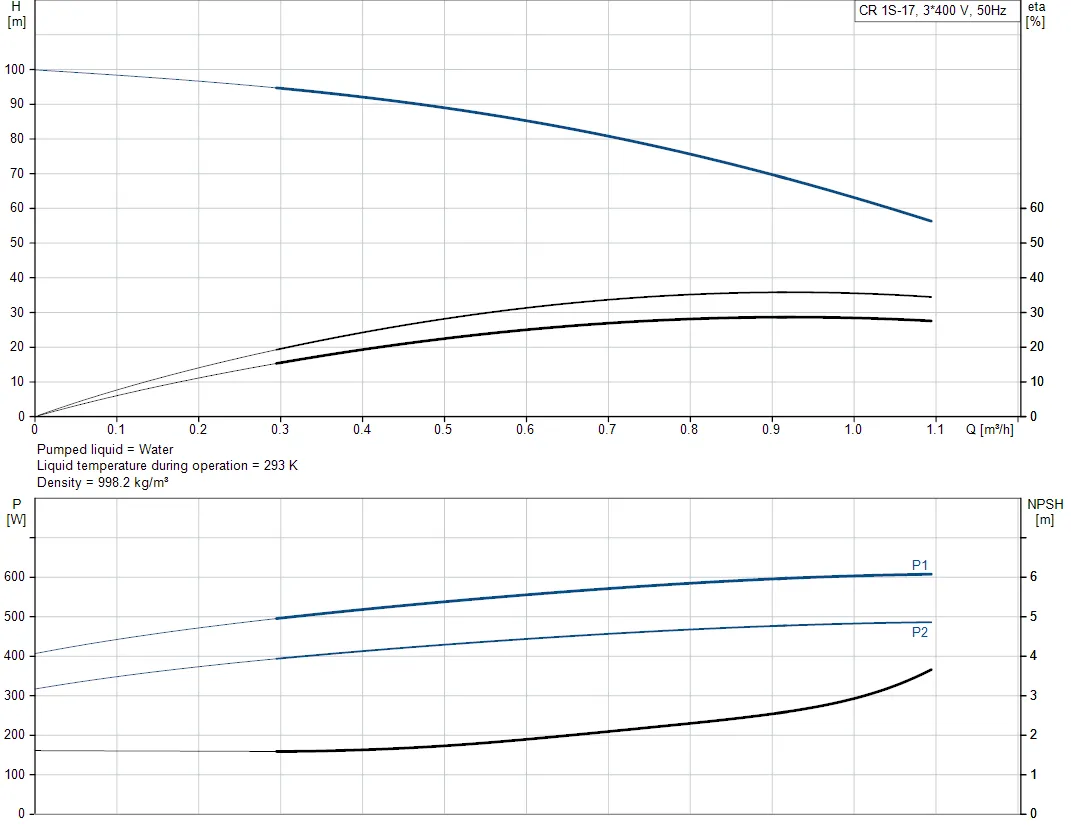

96527574	Grundfos CRI 1S-17 0.55kW - Three Phase

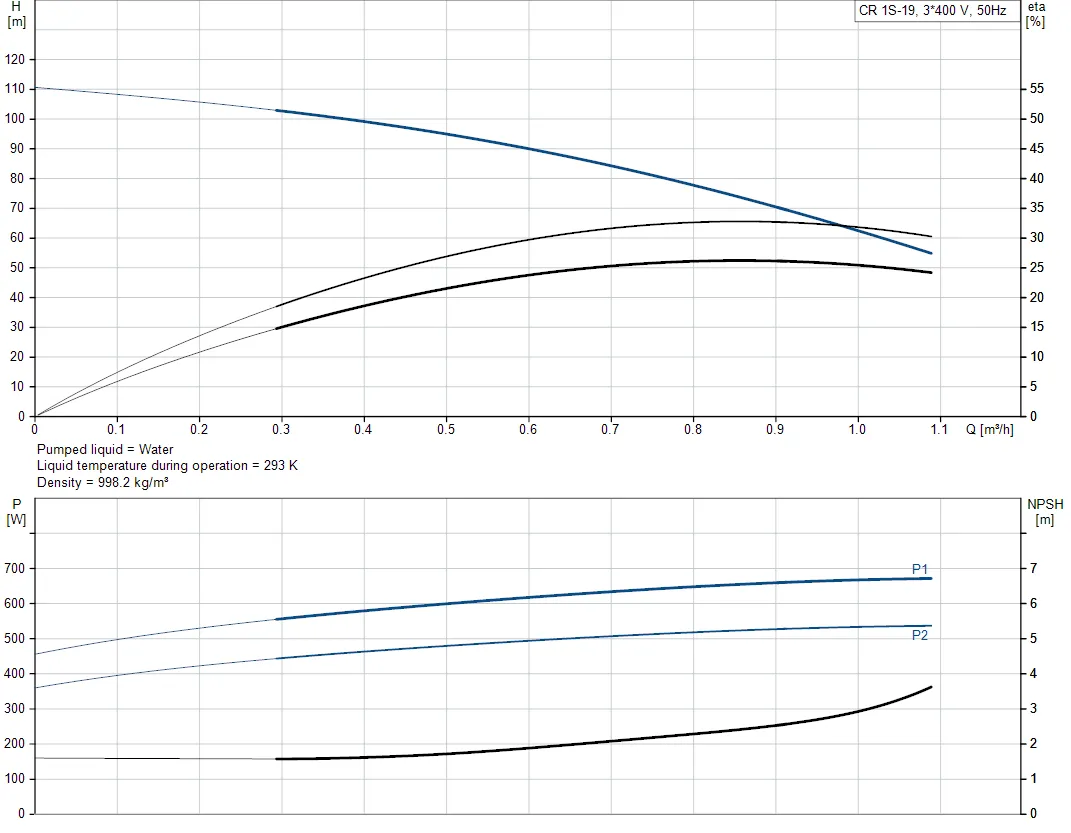

96527575	Grundfos CRI 1S-19 0.55kW - Three Phase

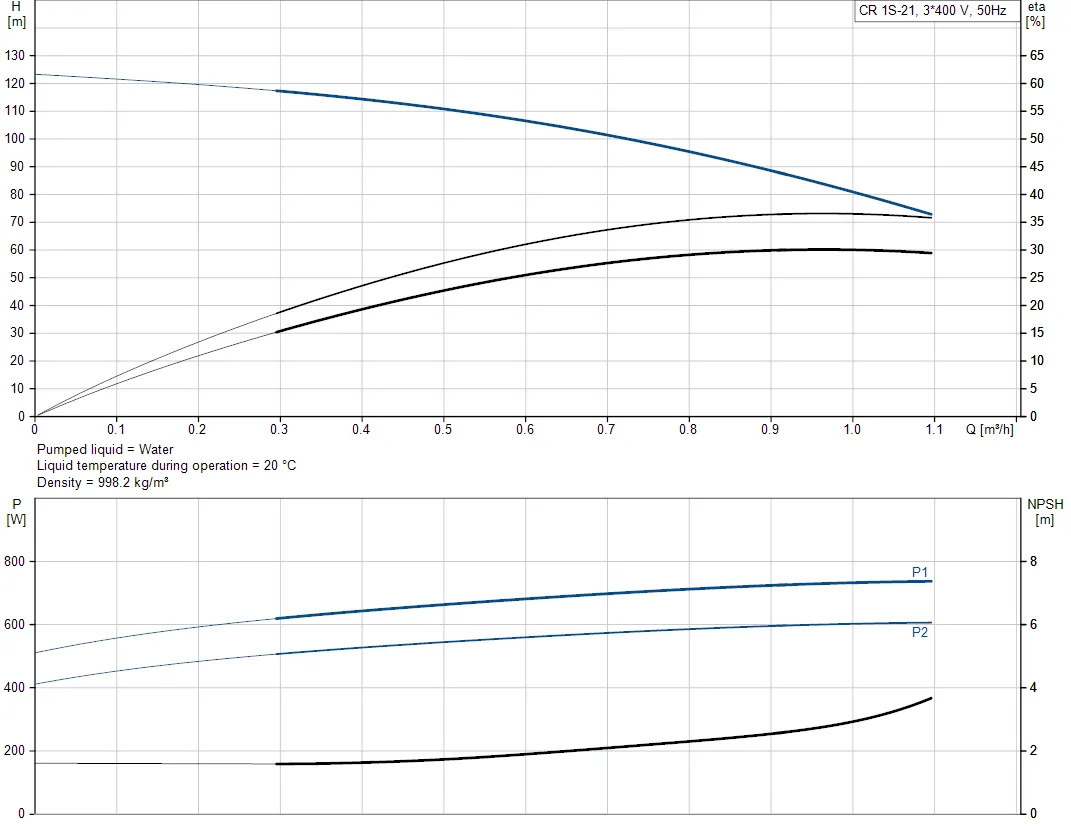

96527576	Grundfos CRI 1S-21 0.75kW - Three Phase

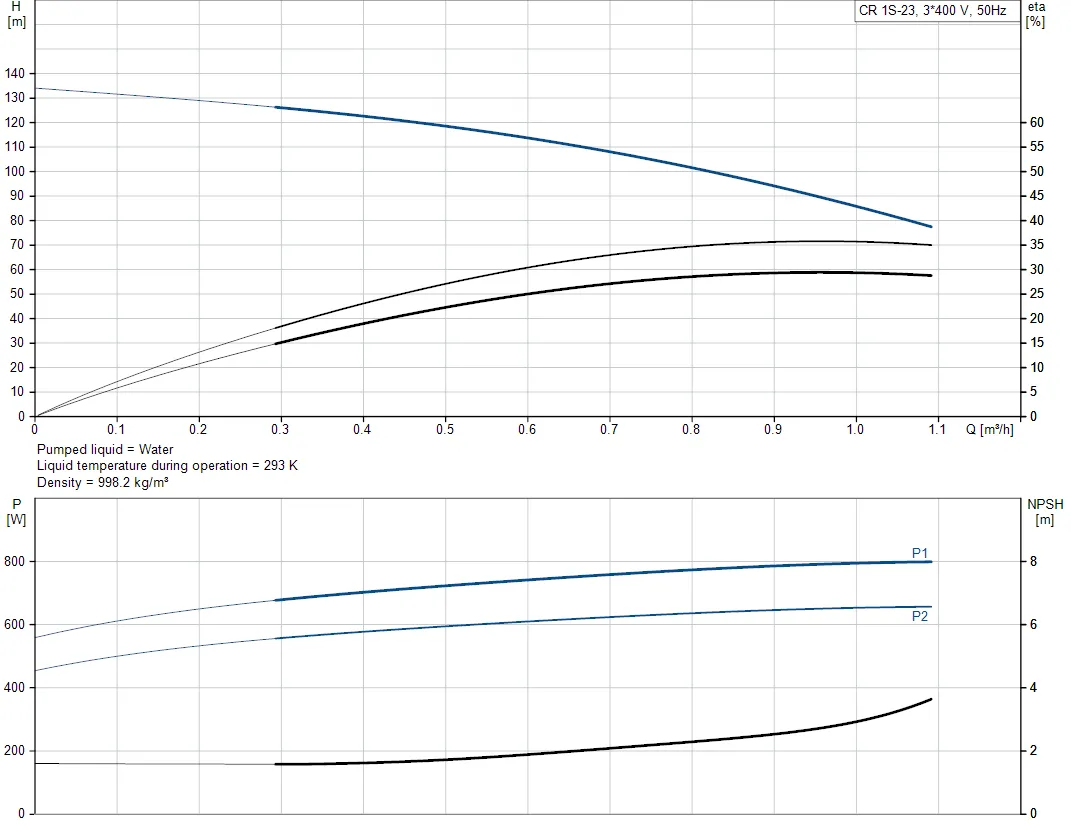

96527578	Grundfos CRI 1S-23 0.75kW - Three Phase

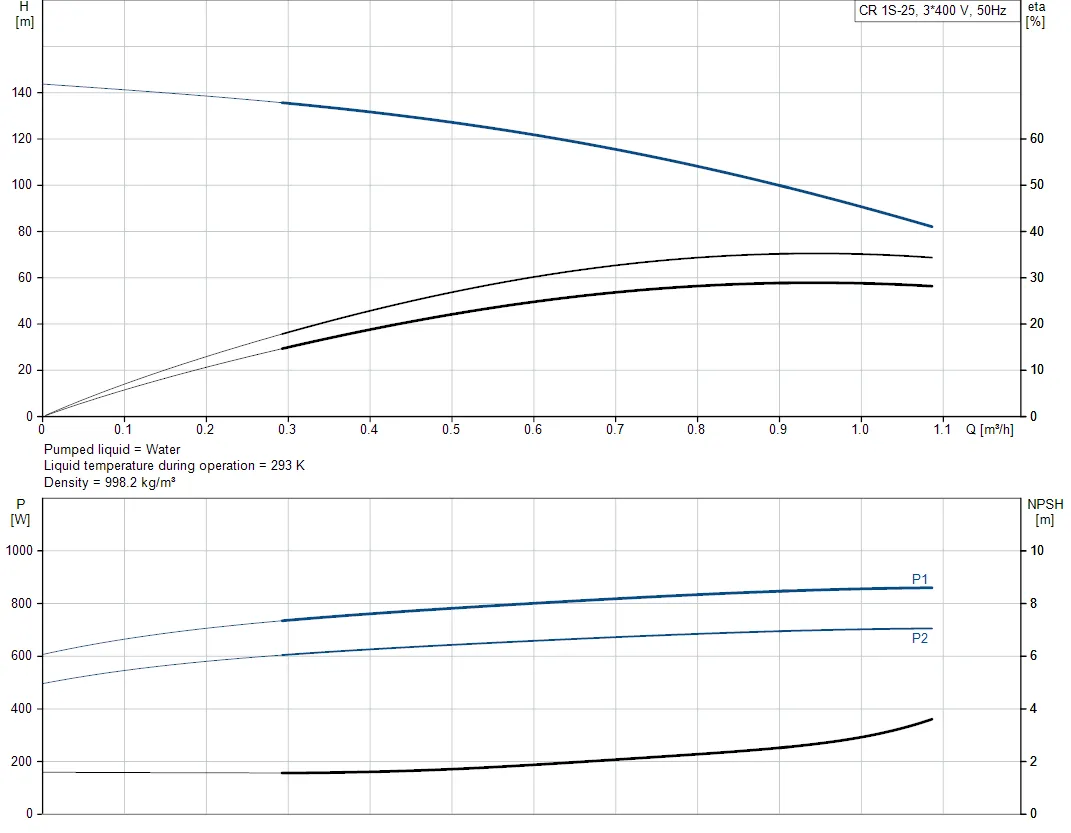

96527579	Grundfos CRI 1S-25 0.75kW - Three Phase

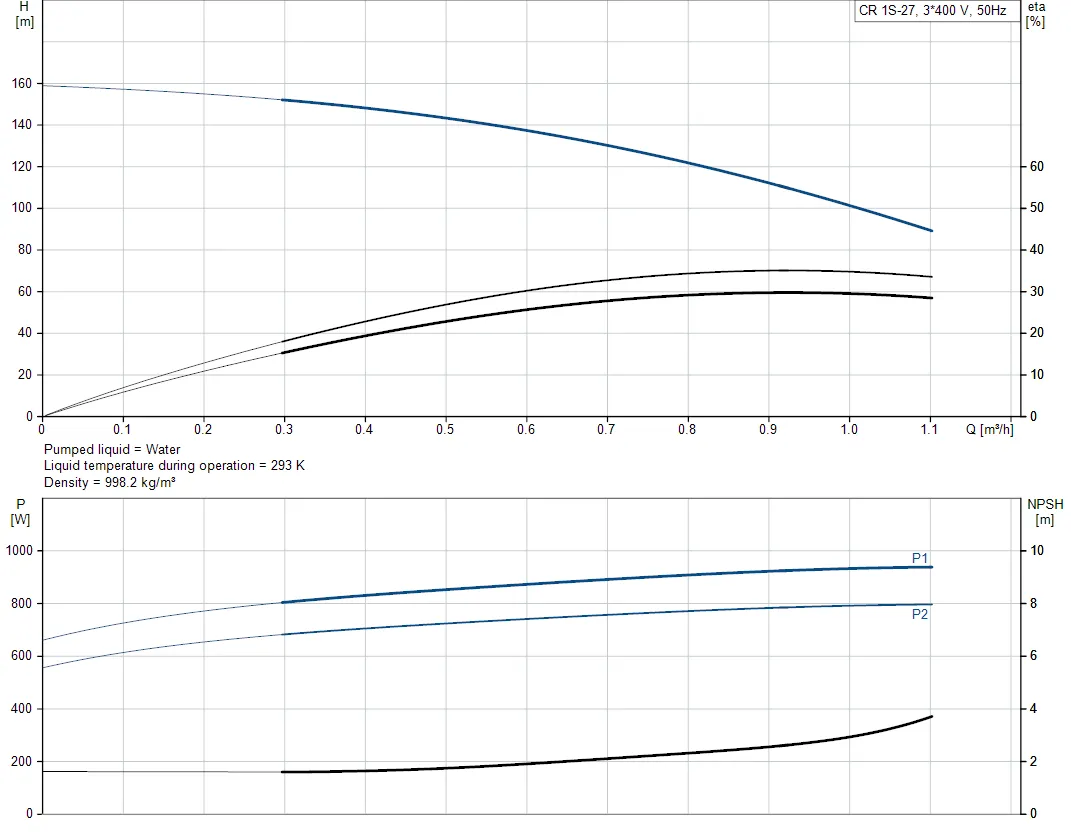

96527590	Grundfos CRI 1S-27 1.10kW - Three Phase
96527591	Grundfos CRI 1S-30 1.10kW - Three Phase
96527594	Grundfos CRI 1S-33 1.10kW - Three Phase
96527595	Grundfos CRI 1S-36 1.10kW - Three Phase
