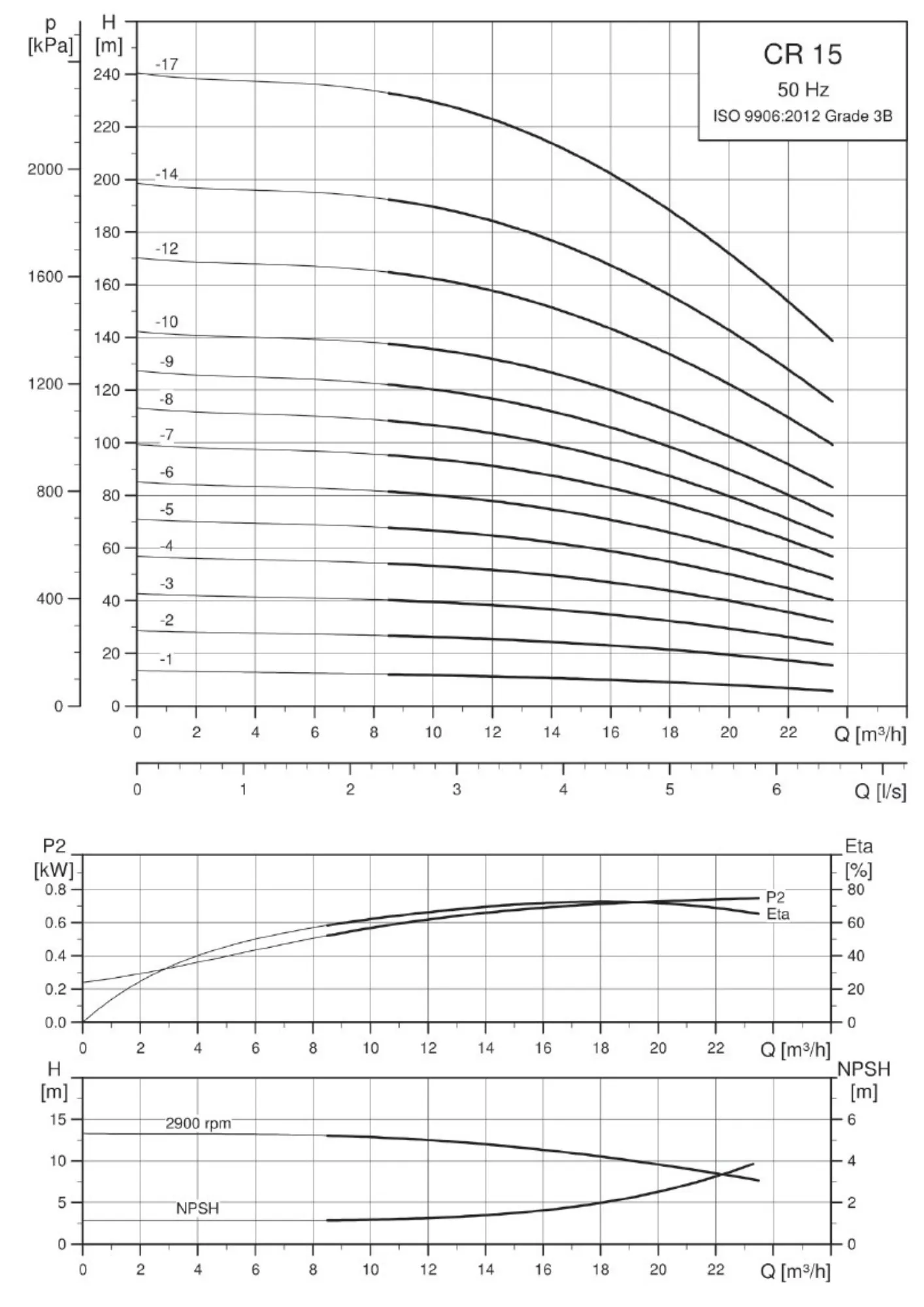

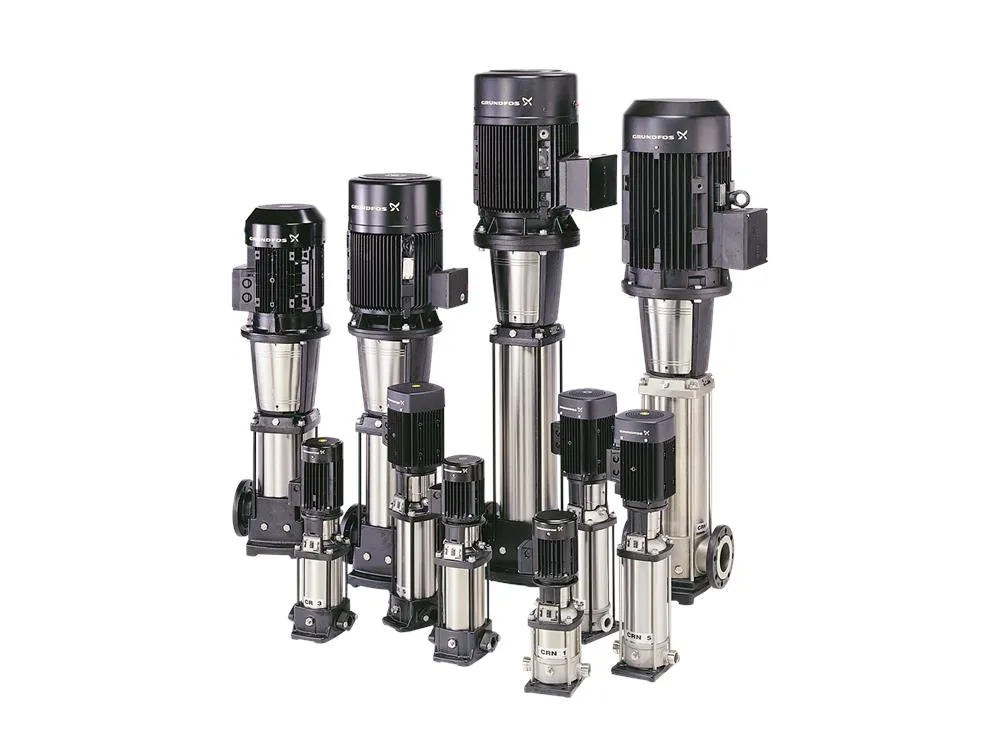

Grundfos CRI 15 304ss Vertical Multistage Pumps (Max 250 LPM)

The Grundfos CRI pump is an in-line, multi-stage pump available in a wide variety of flow and pressure sizes. Built from AISI 304 grade stainless steel, the CRI is ideally suited for water and other non-corrosive liquids. Use the CRI for liquid transfer, glycol, circulation systems and pressure boosting of cold or hot water and slightly aggressive liquids.

Good Corrosion Resistance - All CRI wetted parts are manufactured in AISI 304 stainless steel for good corrosion resistance in most environments.
High Hydraulic Efficiency - Performance is optimised from fluid mechanics insights provided by extensive simulation-driven design and verification.
Optimal Motor Utilisation - The standard product range is optimised for maximum utilisation of the motor’s power output.
Versatile Solution - For deep-well pumping, specialised pumps are available for small water supply systems where water is pumped from depths down to 90 metres.

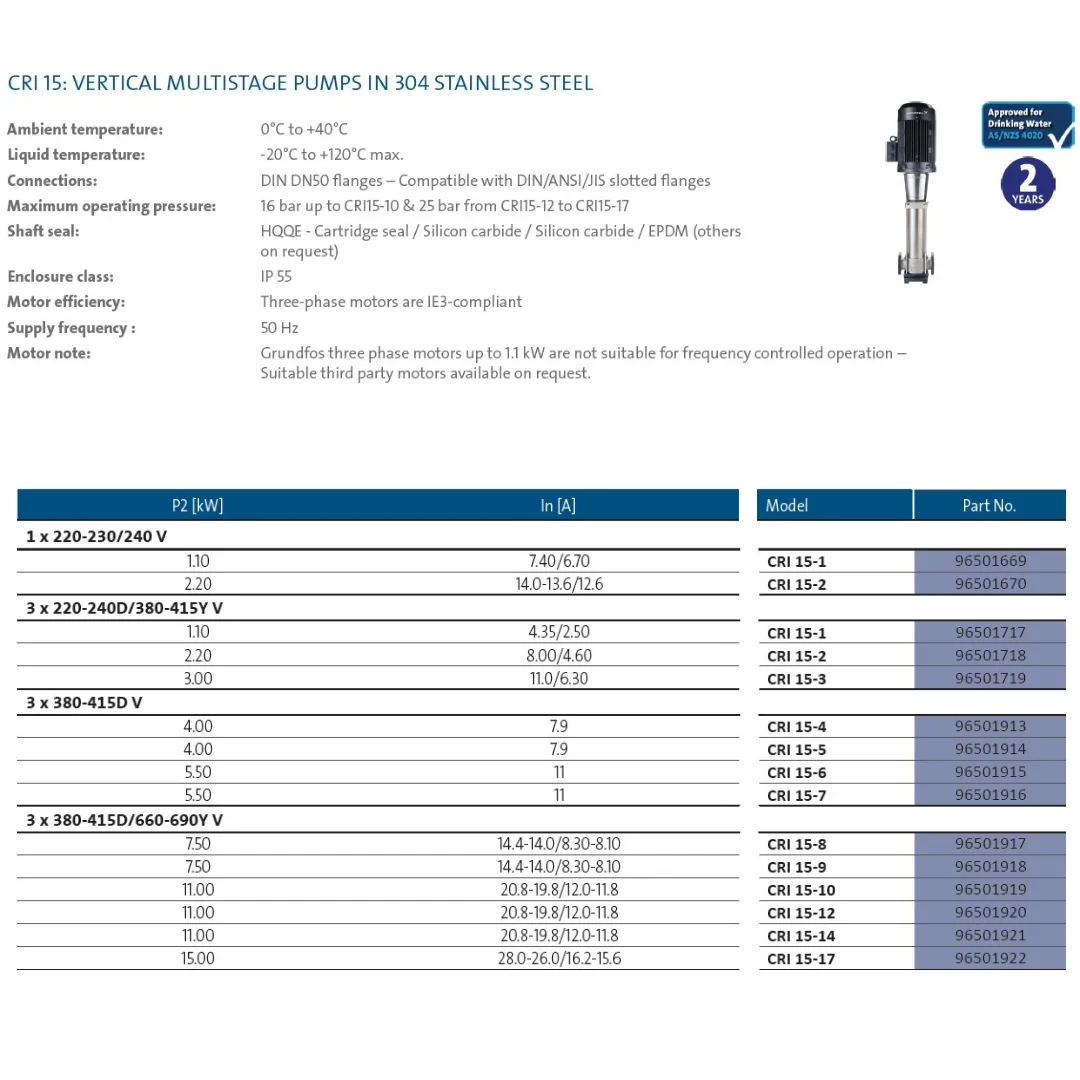

SPECIFICATIONS

Impellers: 304 stainless steel
Intermediate casings: 304 stainless steel
Outer casing: 304 stainless steel
Bottom casing base: 316 stainless steel
Top casing: 304 stainless steel
Shaft: 304 stainless steel
Motor Bracket: Cast iron
Mechanical seal: HQQE
Liner Rings: 304 stainless steel

FEATURES

High efficiency
Connection Size: Flange DIN DN 50
Space-saving
Reliability
Service-friendly
Suitable for slightly aggressive liquids
High corrosion resistance
Single-pump solution making high pressures possible.
Vertical multi stage pump with 304 SS wetted construction.
Fitted with IP55 motor
Fitted with EPDM elastomers
Pumps certified to AS/NZS 4020 for use with potable water

OPTIONAL EXTRAS (ADD-ONS)

MODELS AVAILABLE

PART NUMBER	DESCRIPTION
96501669	Grundfos CRI 15-01 1.10kW - Single Phase
92982760	Grundfos CRI 15-02 2.20kW - Single Phase

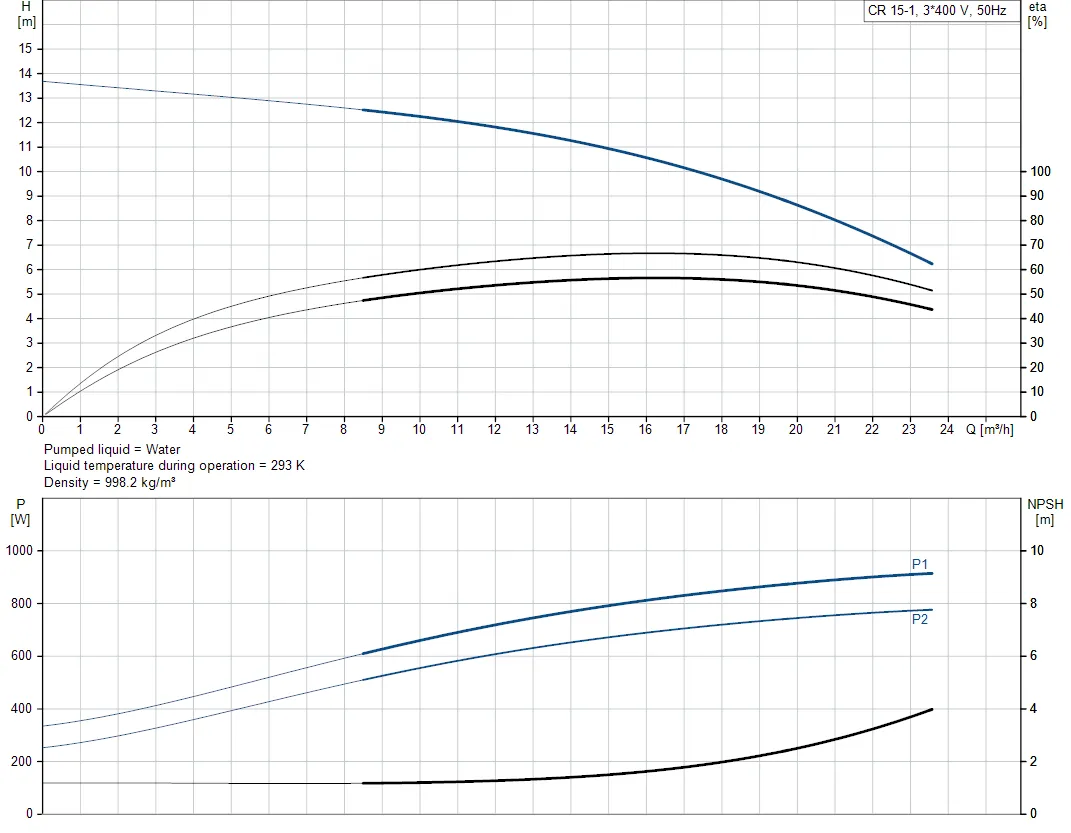

96501717	Grundfos CRI 15-01 1.10kW - Three Phase

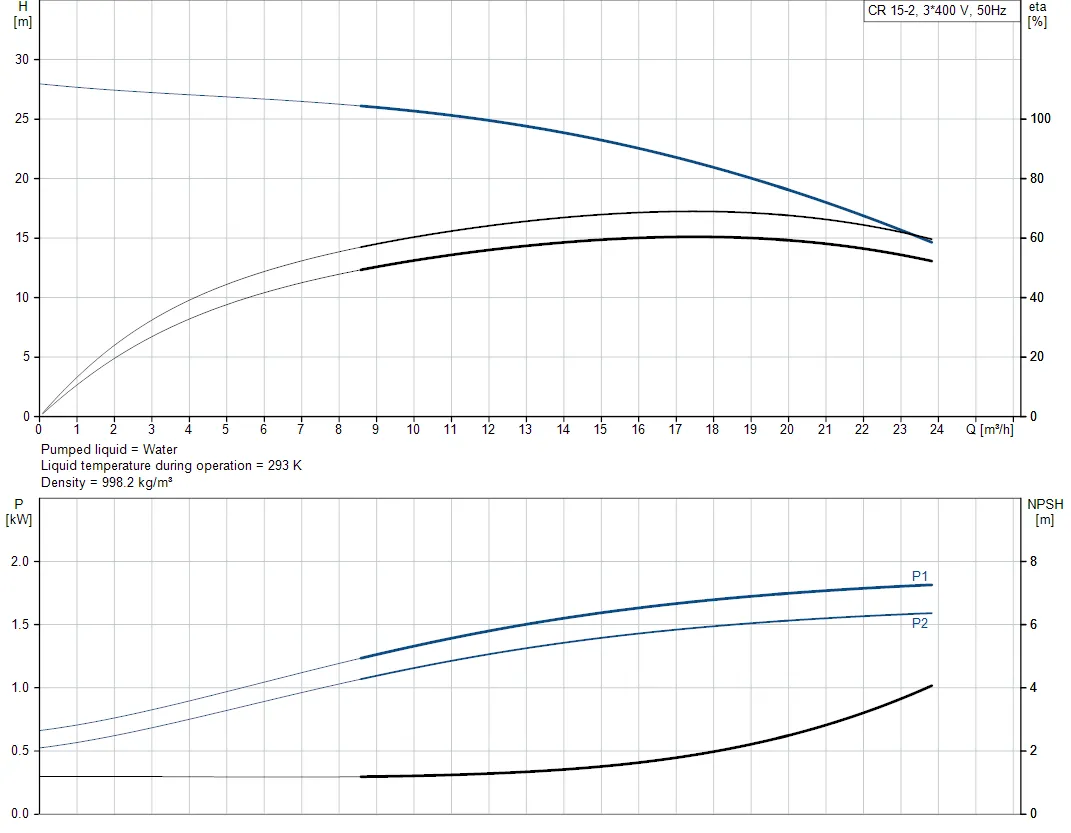

96501718	Grundfos CRI 15-02 2.20kW - Three Phase

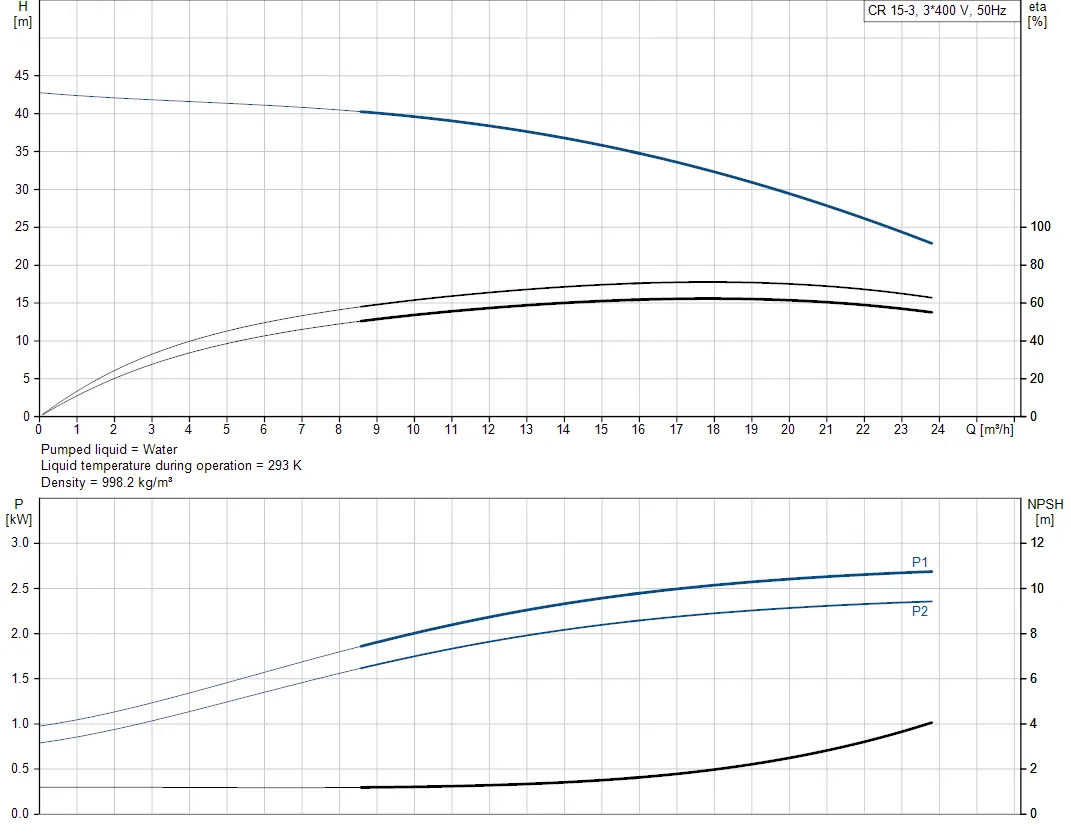

96501719	Grundfos CRI 15-03 3.00kW - Three Phase

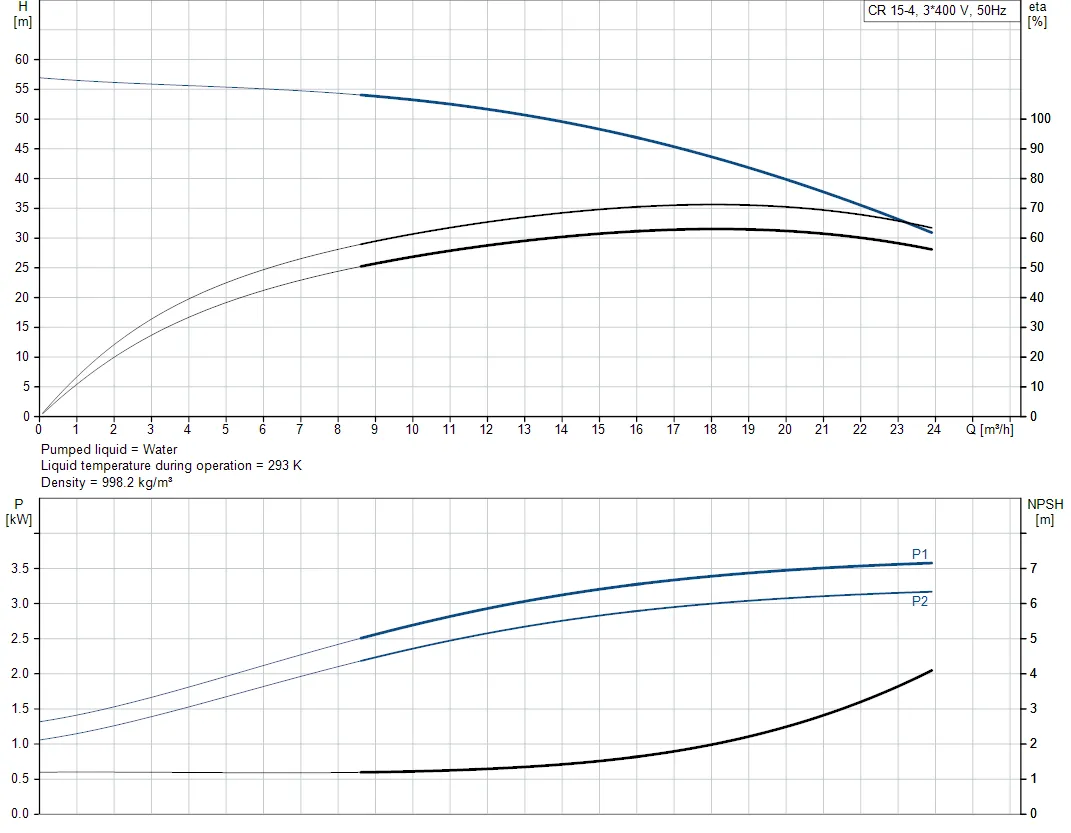

96501913	Grundfos CRI 15-04 4.00kW - Three Phase

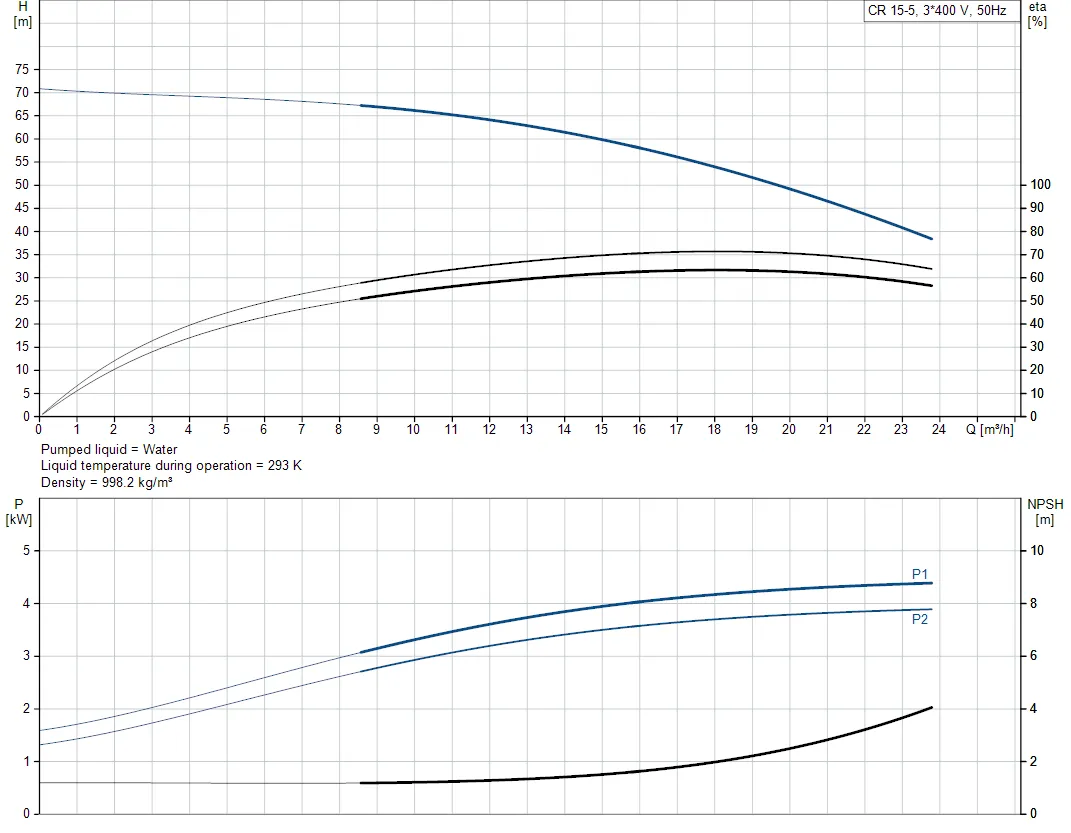

96501914	Grundfos CRI 15-05 4.00kW - Three Phase

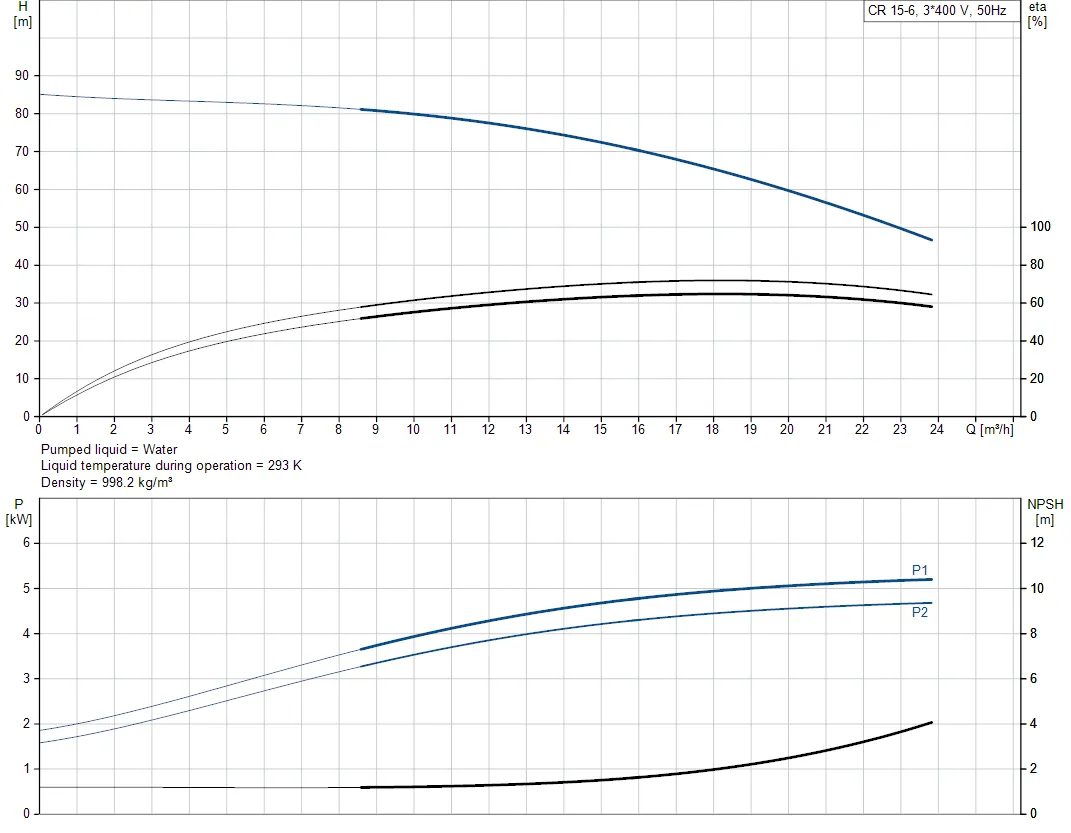

96501915	Grundfos CRI 15-06 5.50kW - Three Phase

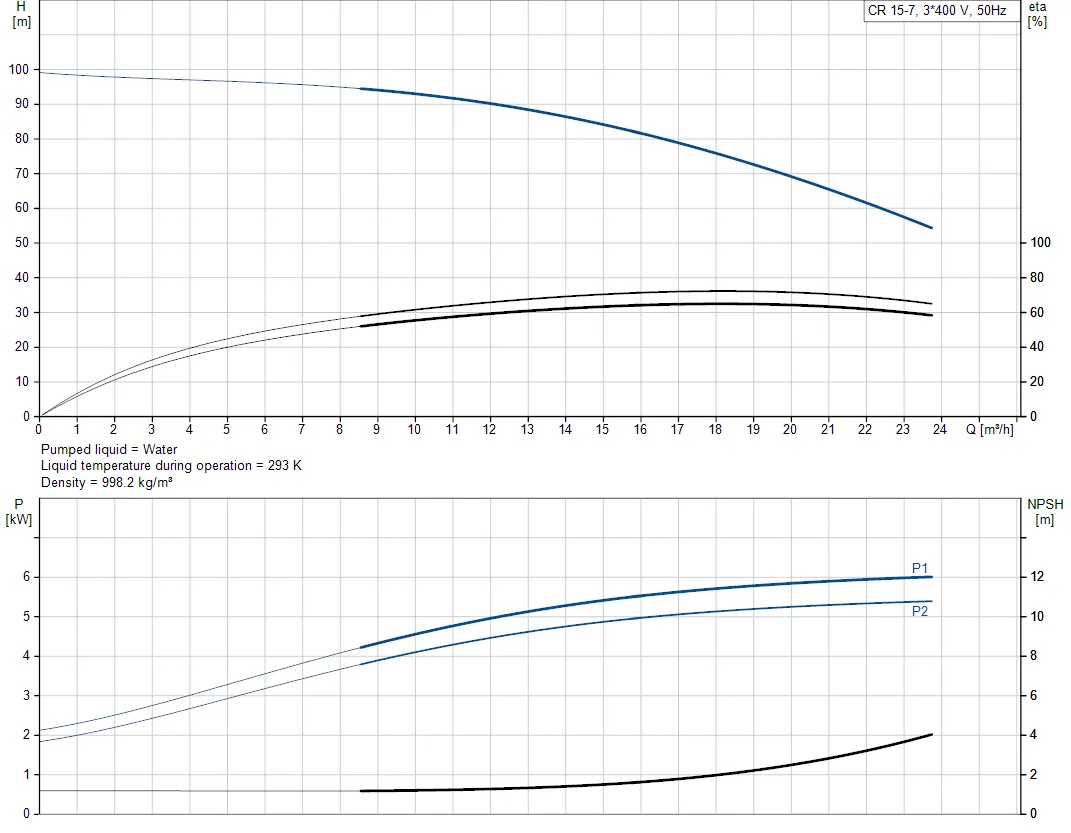

96501916	Grundfos CRI 15-07 5.50kW - Three Phase

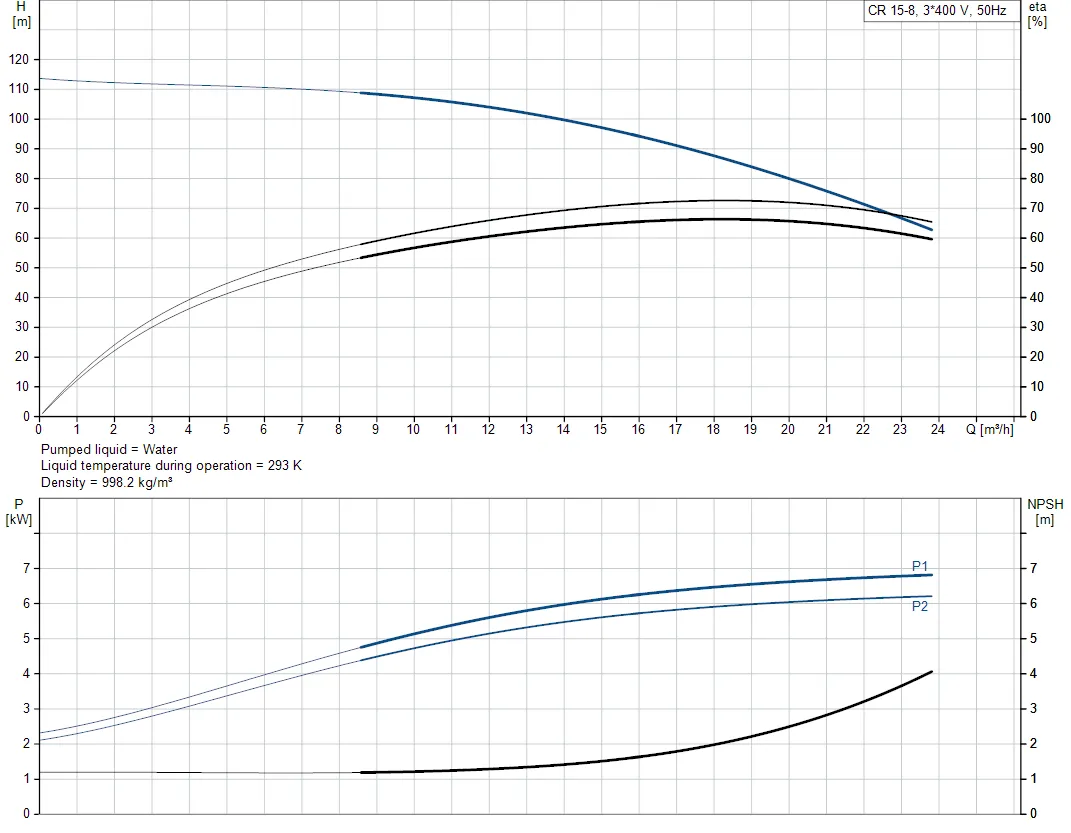

96501917	Grundfos CRI 15-08 7.50kW - Three Phase

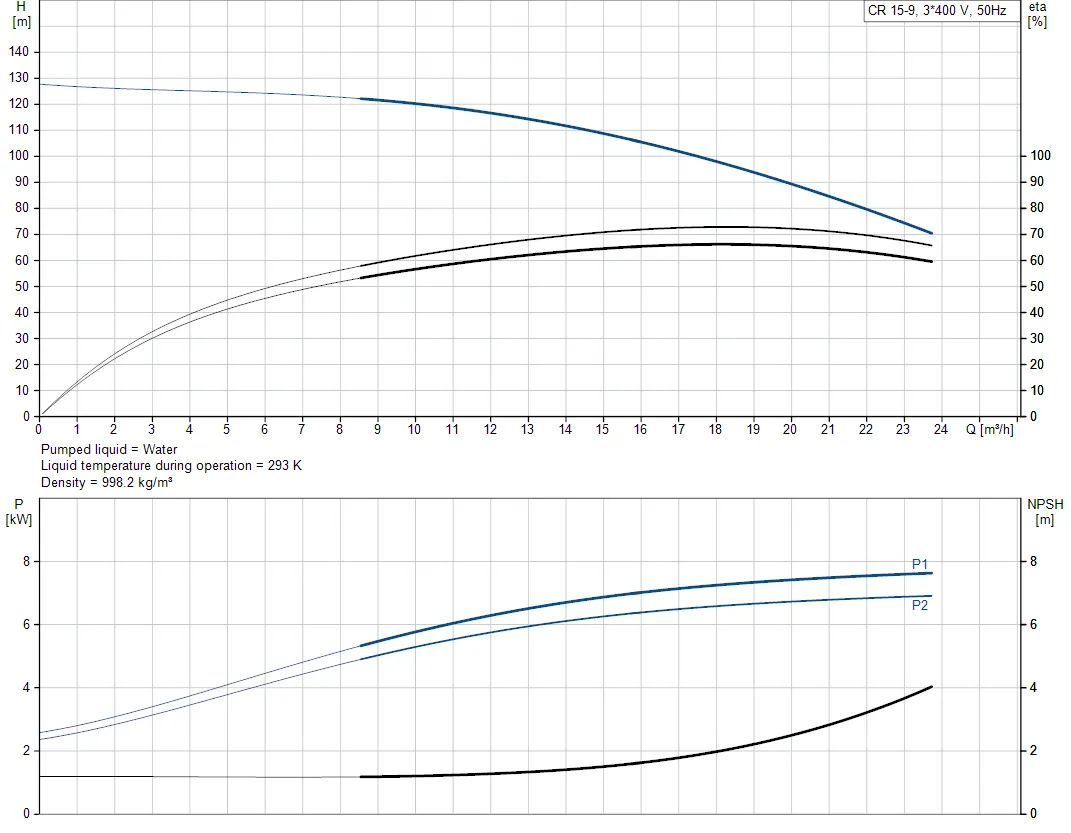

96501918	Grundfos CRI 15-09 7.50kW - Three Phase

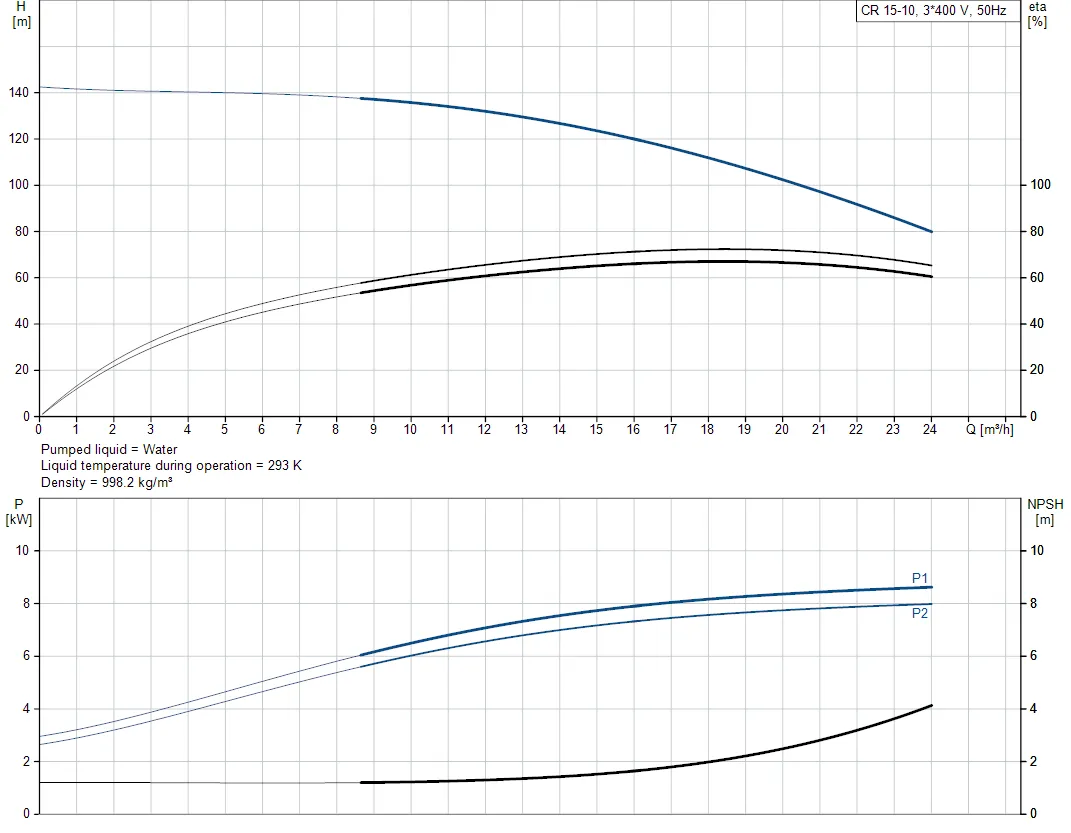

96501919	Grundfos CRI 15-10 11.00kW - Three Phase

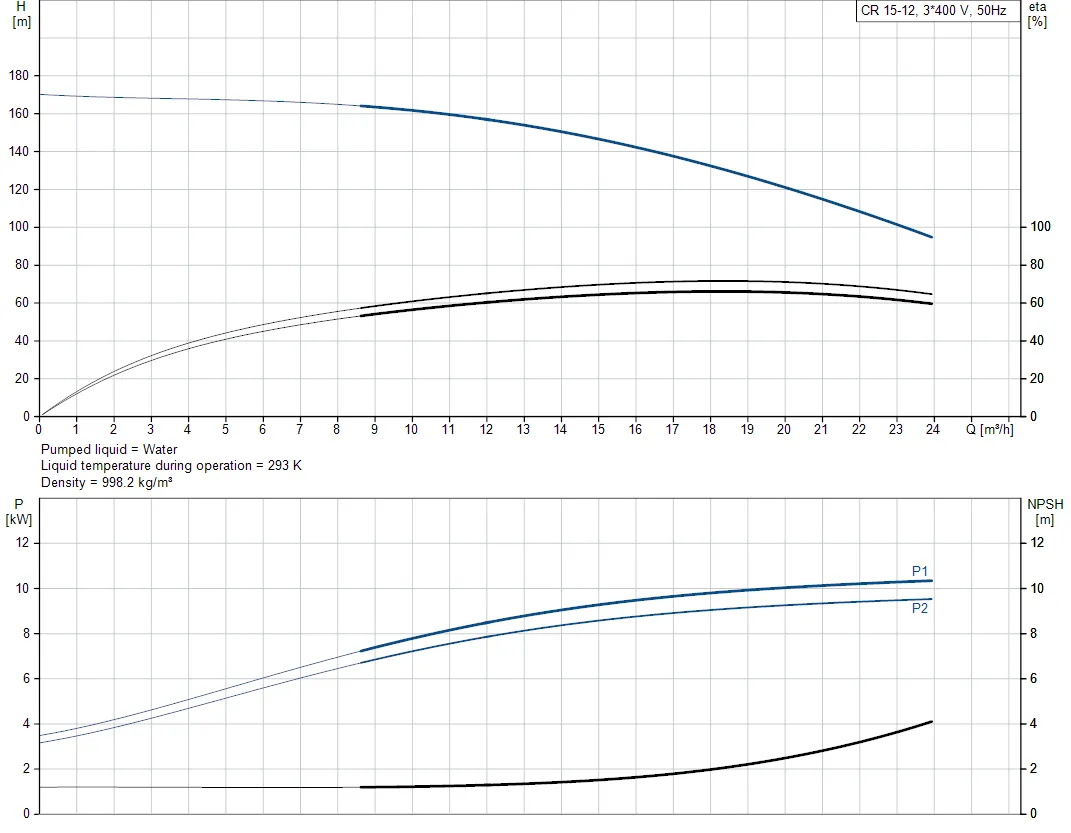

96501920	Grundfos CRI 15-12 11.00kW - Three Phase

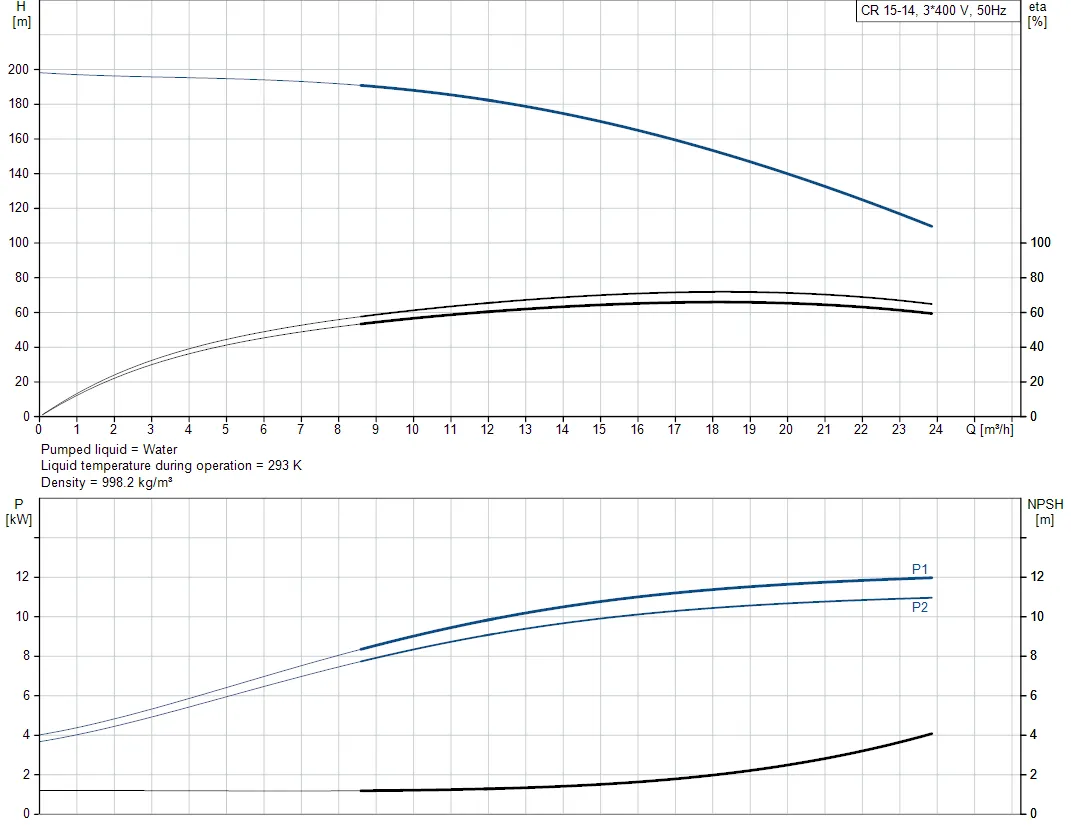

96501921	Grundfos CRI 15-14 11.00kW - Three Phase
96501922	Grundfos CRI 15-17 15.00kW - Three Phase
