Product Details
＋
Lamina Standoffs

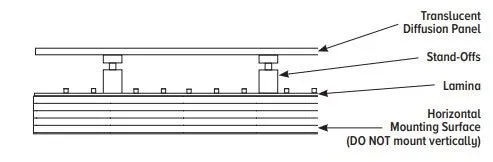

Invisible Stand-Off support option allows even illumination with translucent panels easily raises diffusion translucent panels 0.91” - 2.0” above Lamina. For horizontal surface.
Spec Sheet
Info
| Catalog No. |
Description |
Height Range | Max Load |
| GM-SOC-1 |
13mm Clear Acrylic w/clear 3M tape |
23mm (0.91”) to 33mm (1.30”) |
6 lbs. |
| GM-SOC-2 | 19mm Clear Acrylic w/clear 3M tape | 36mm (1.42”) to 51mm (2.00)” |
10 lbs. |
Accessories
| Catalog No. | Dimensions | Wattage | Lumens | Color Temp. |
|---|---|---|---|---|
| S12X12-SO-27 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 2700K |
| S12X12-SO-30 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3000K |
| S12X12-SO-35 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 3500K |
| S12X12-SO-40 | 12″ x 12″ | 5W / sq. foot | 500 / sq. foot | 4000K |
| S12X12-HO-27 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 2700K |
| S12X12-HO-30 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3000K |
| S12X12-HO-35 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 3500K |
| S12X12-HO-40 | 12″ x 12″ | 10W / sq. foot | 1000 / sq. foot | 4000K |
