Baileigh Industrial 1008060 Description

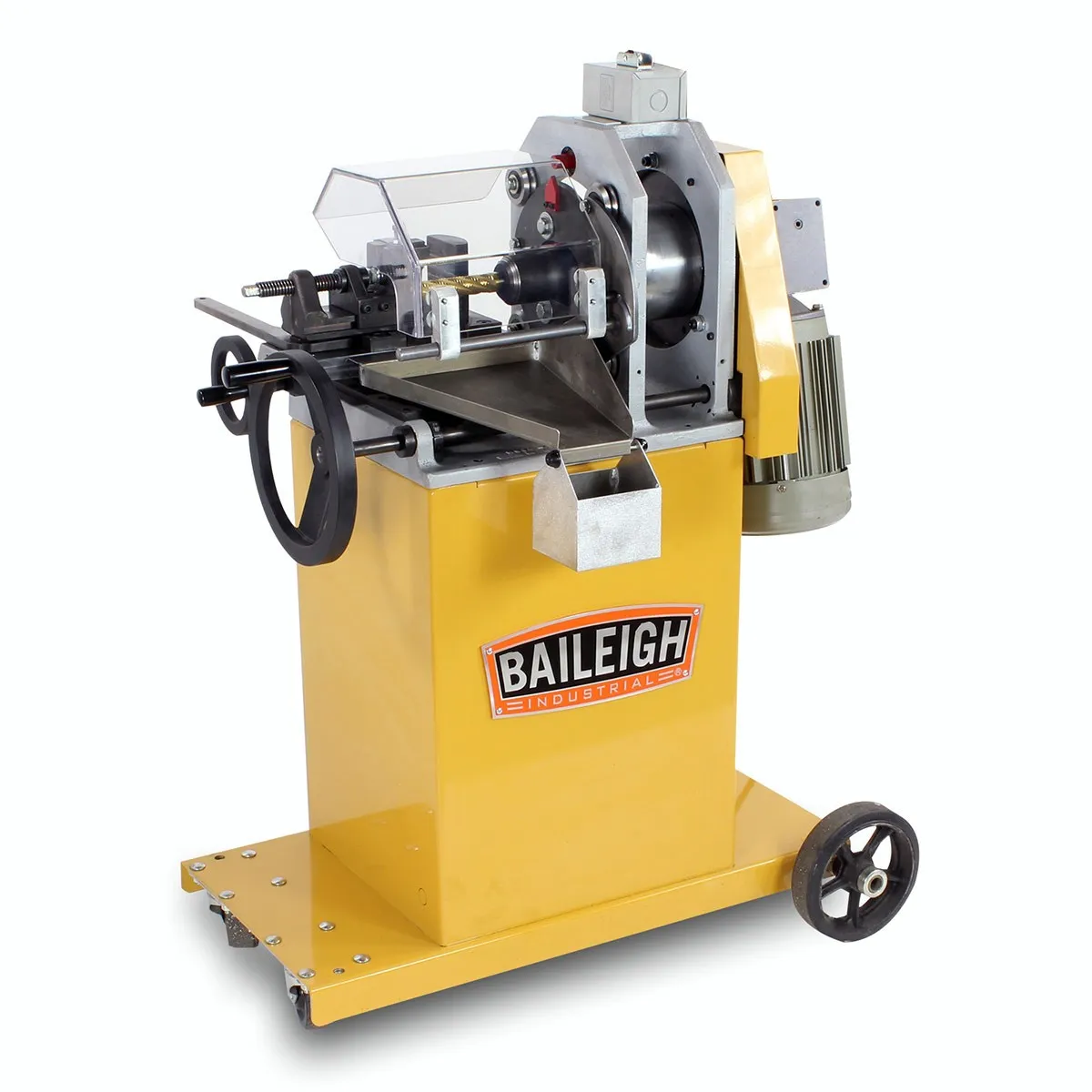

The TN-800 Tube and Pipe Notcher does what no other tubing notcher on the market can do: notch tube from 1” to 3” OD without any change in tooling, hole saws, or mandrels. Recommended for: Structural work, racing and off-road chassis, steam pipe, and many more applications. Baileigh’s patented design (Patent No: 6,435,783) can save you thousands of dollars every year in tooling costs. No competing end mill notcher can cope from 1” to 3” OD tube or pipe without a switch. Decimal angle-finder enables you to work your way up to the right notch angle to produce a tighter fit and a better weld without wasting material on trial and error. Made in the USA and built to last, the TN-800 draws strength from its rugged cast iron construction, something you won’t find on many competing models.
Baileigh Industrial 1008060 Includes
- (1) Tube & Pipe Notcher
Baileigh Industrial 1008060 Features

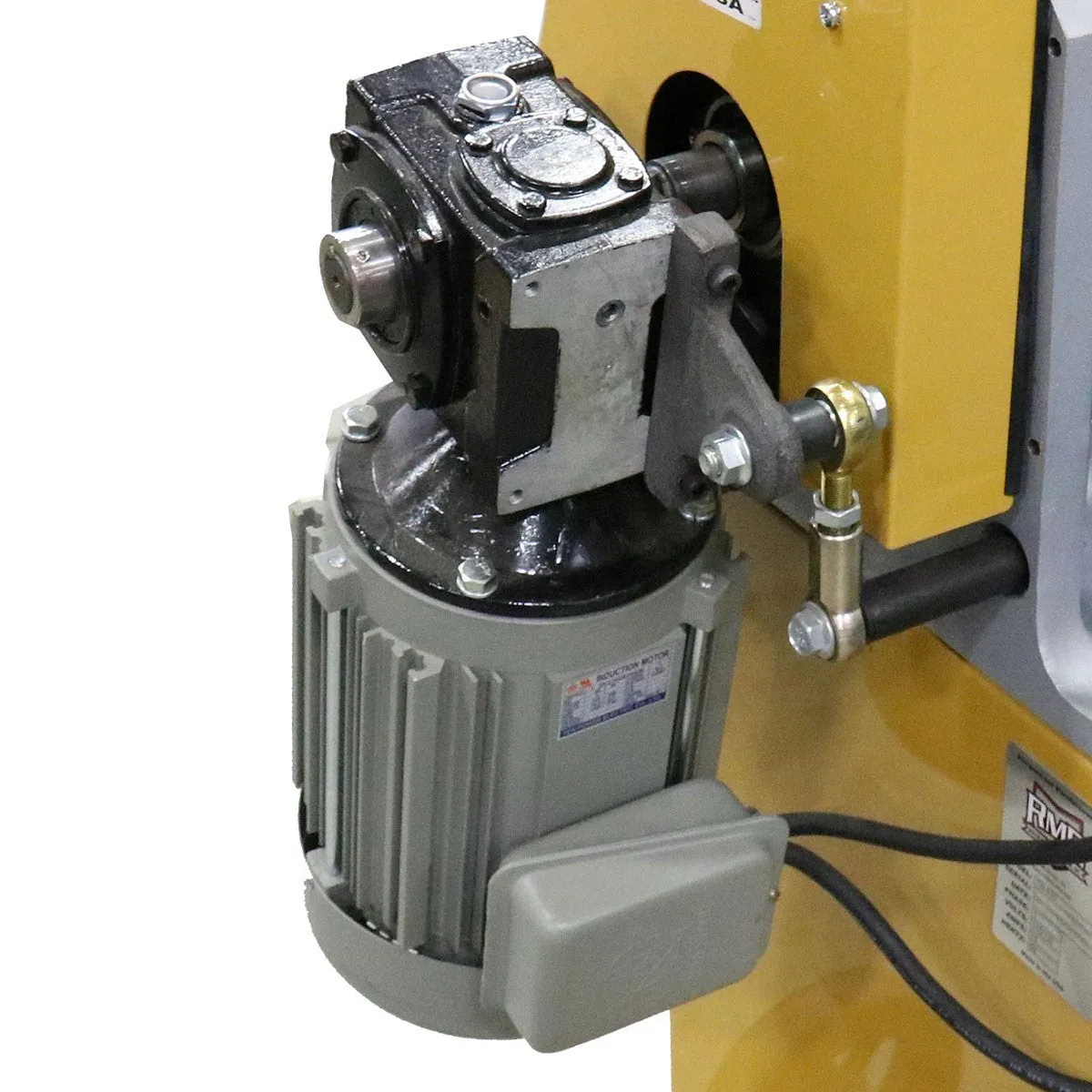

- 1 hp motor runs on 110-volt power. You can operate it almost anywhere, including in the field.
- Notches up to 60°.
- Carefully-chosen milling speed of 350 rpm balances cutting power with long machine life and low wear and tear.

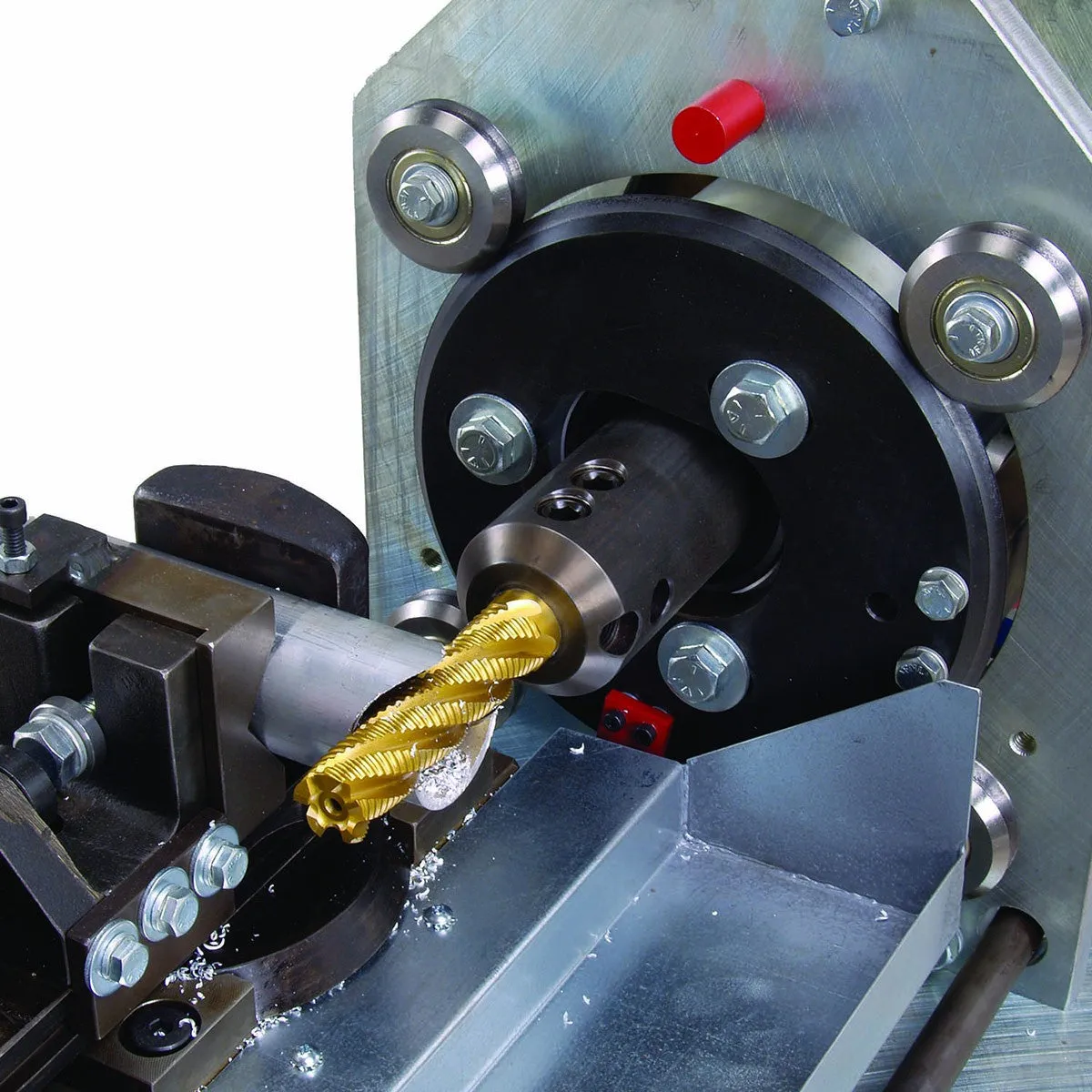

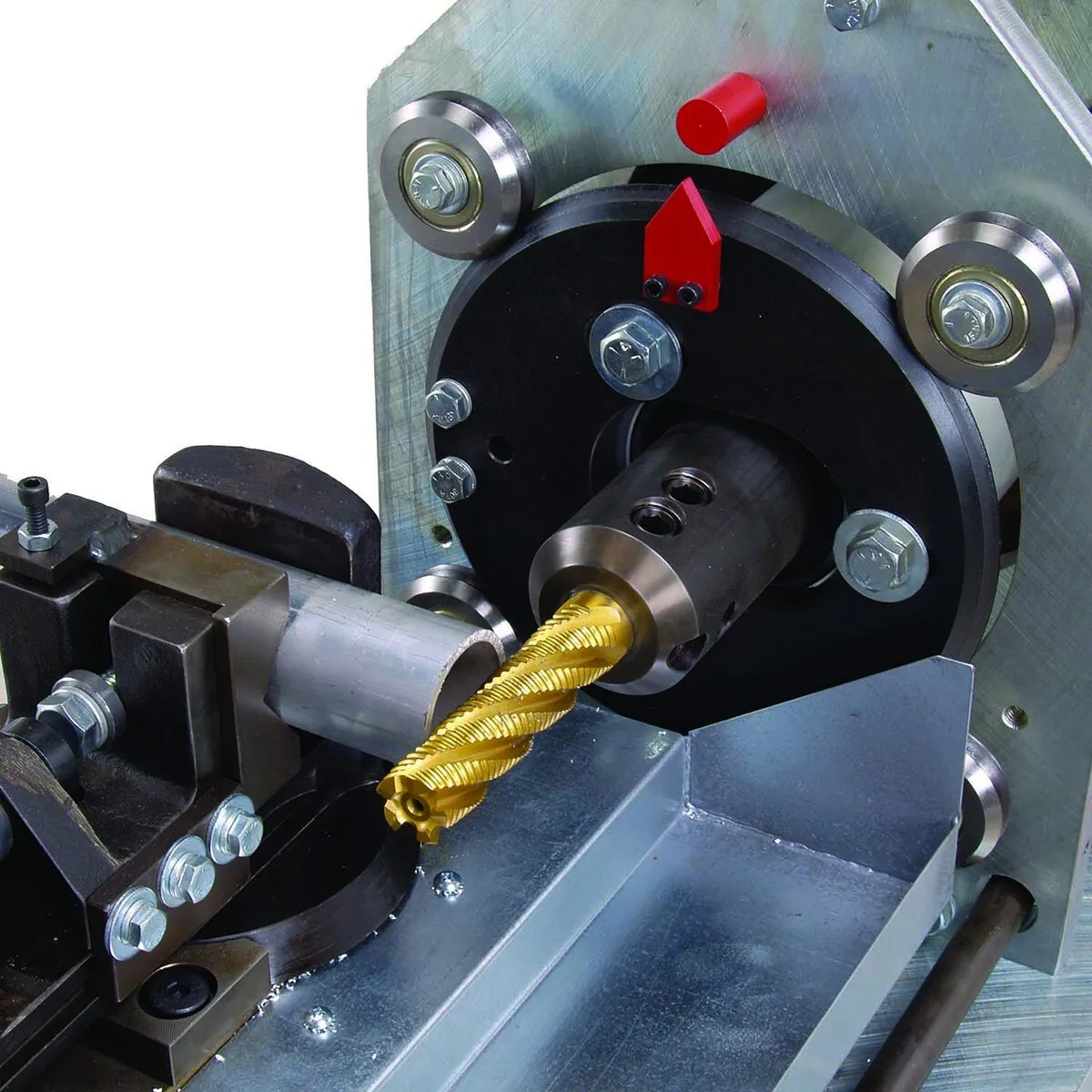

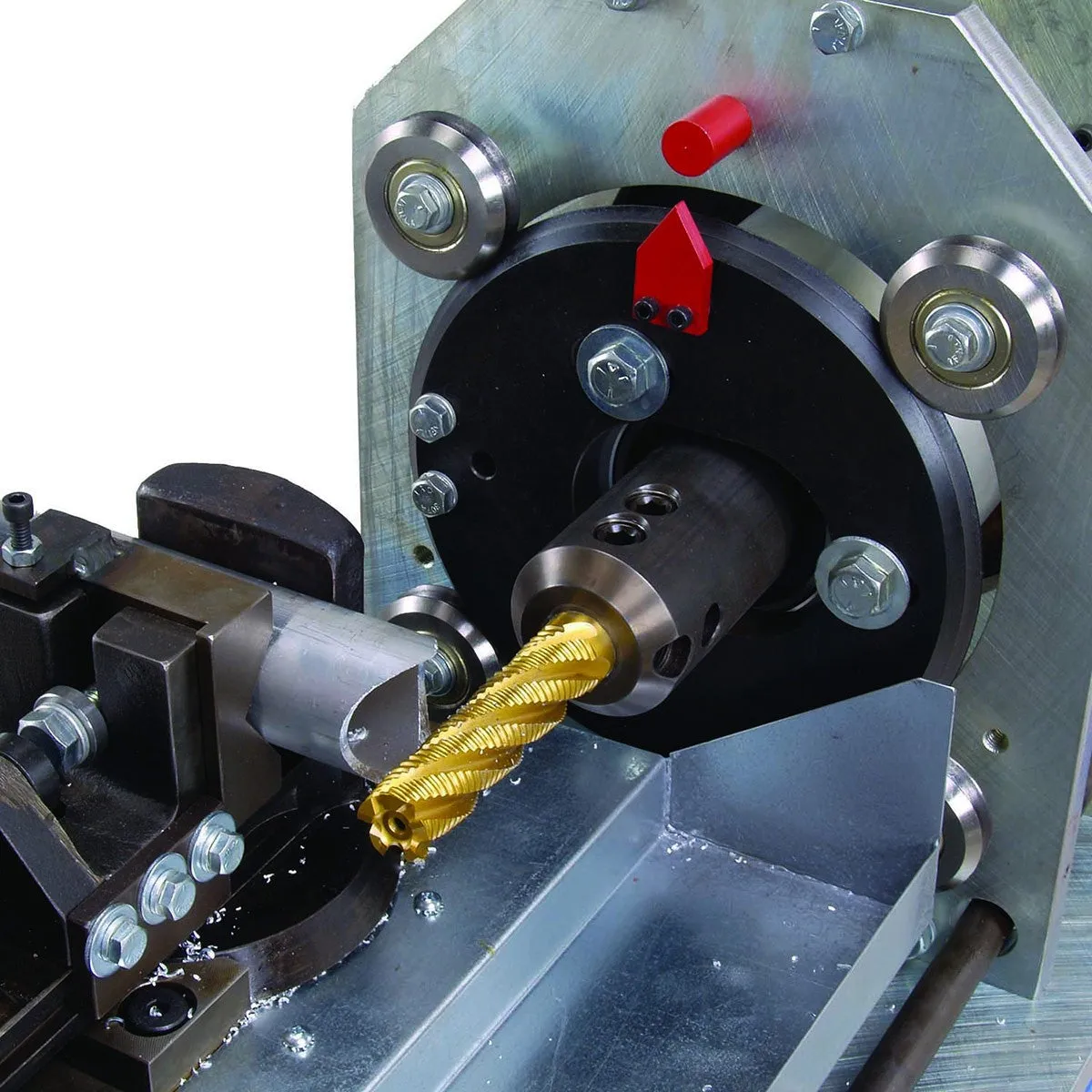

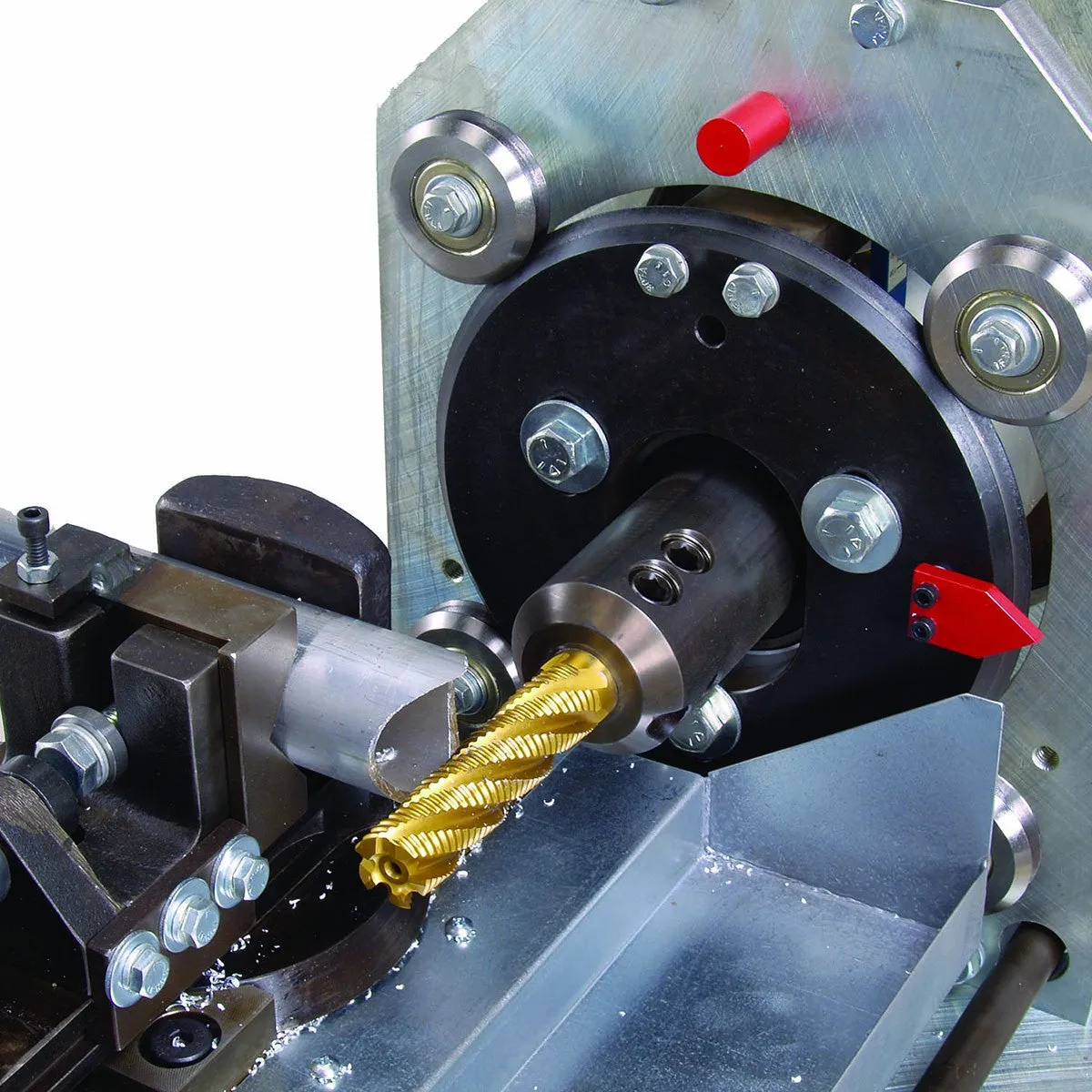

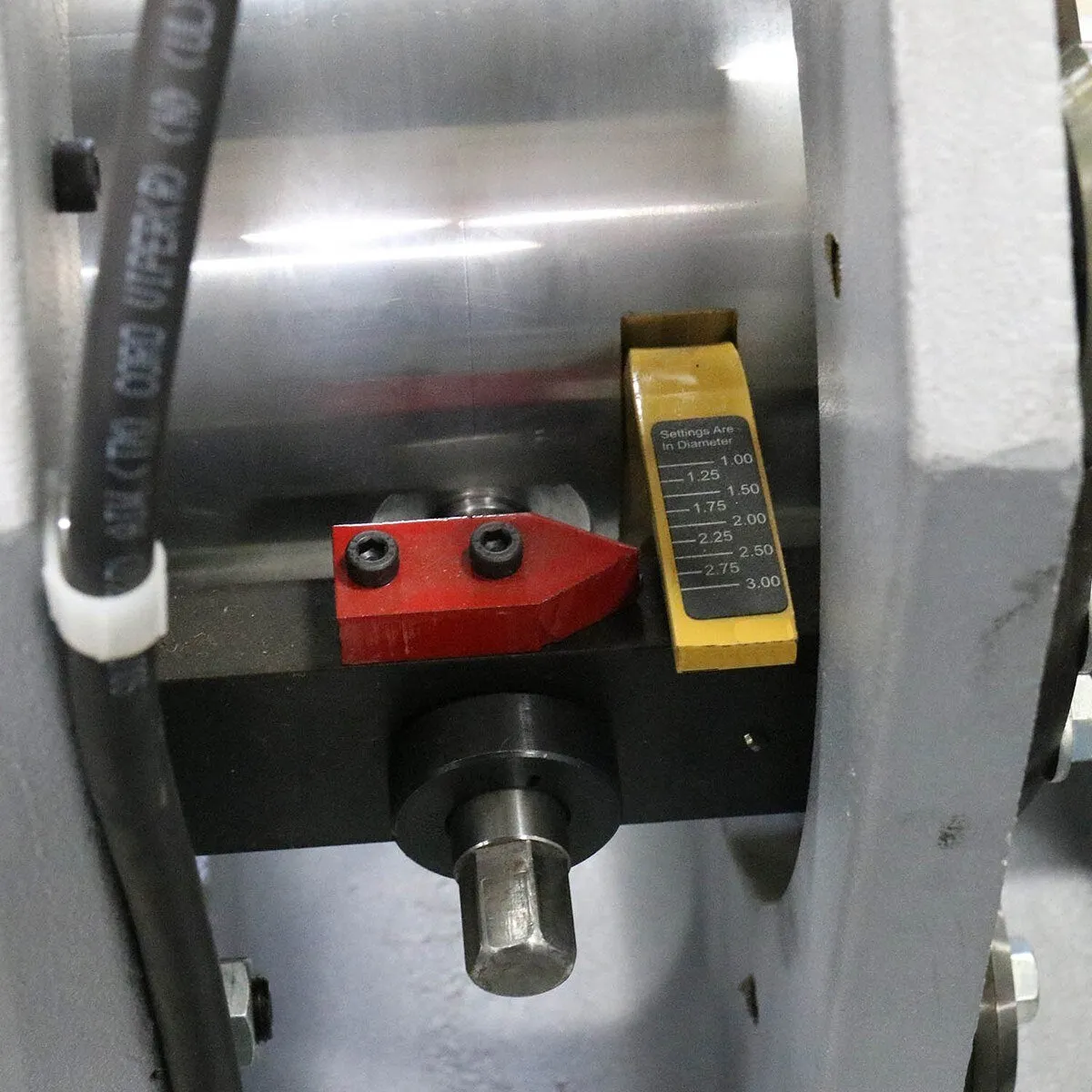

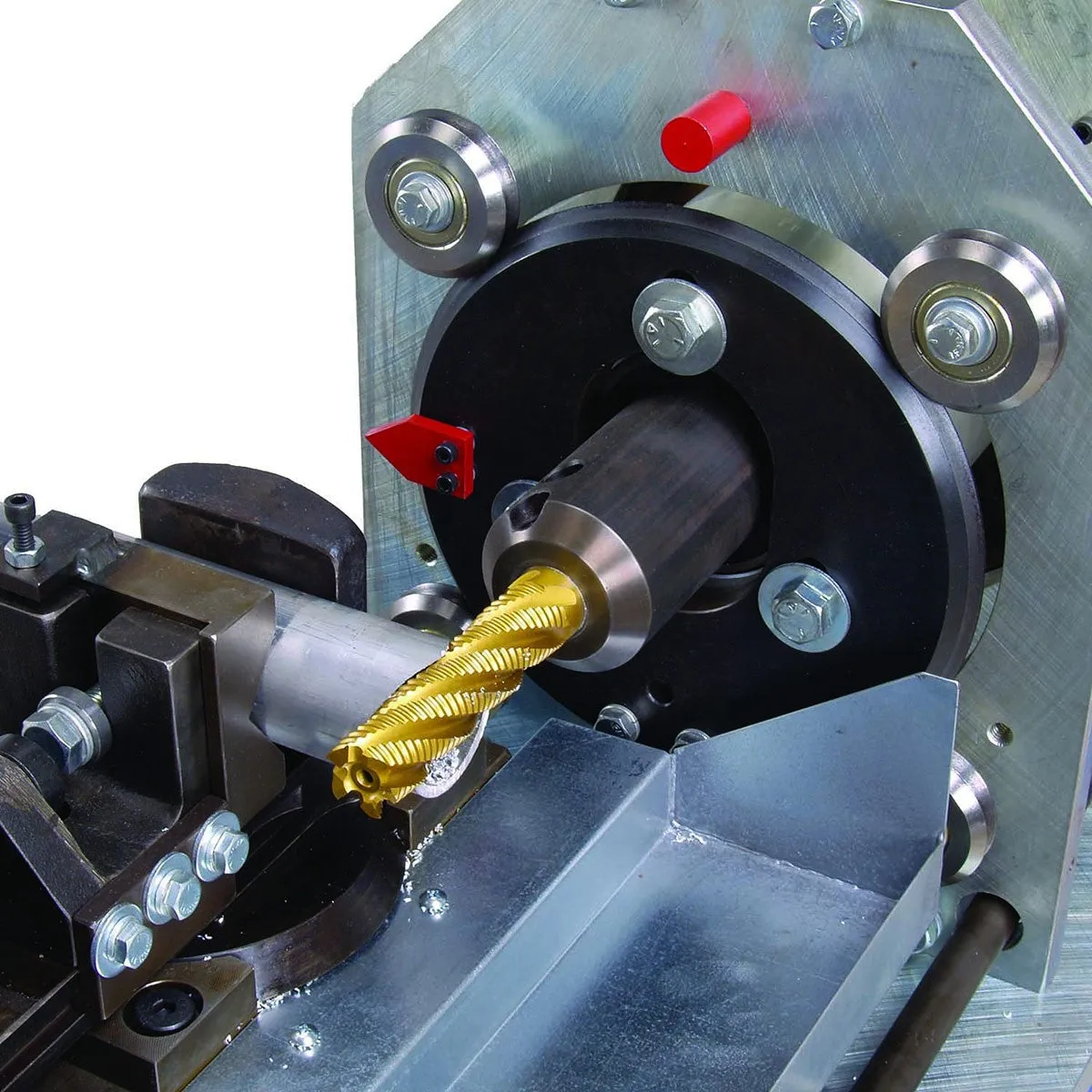

- Our tooling-free design lets you simply dial in the OD that you want to notch—and the tube notcher will change its eccentric path and produce a perfect notch.

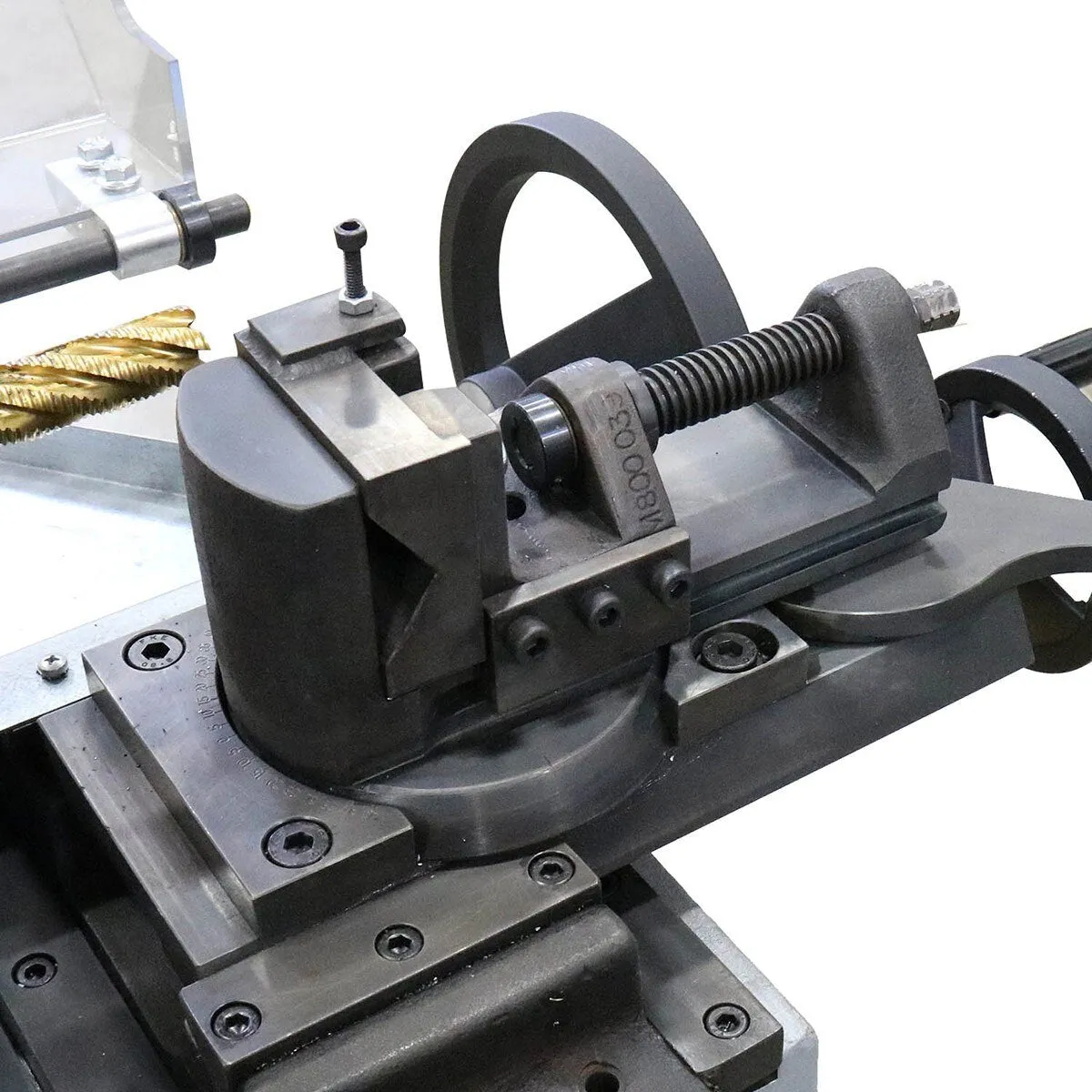

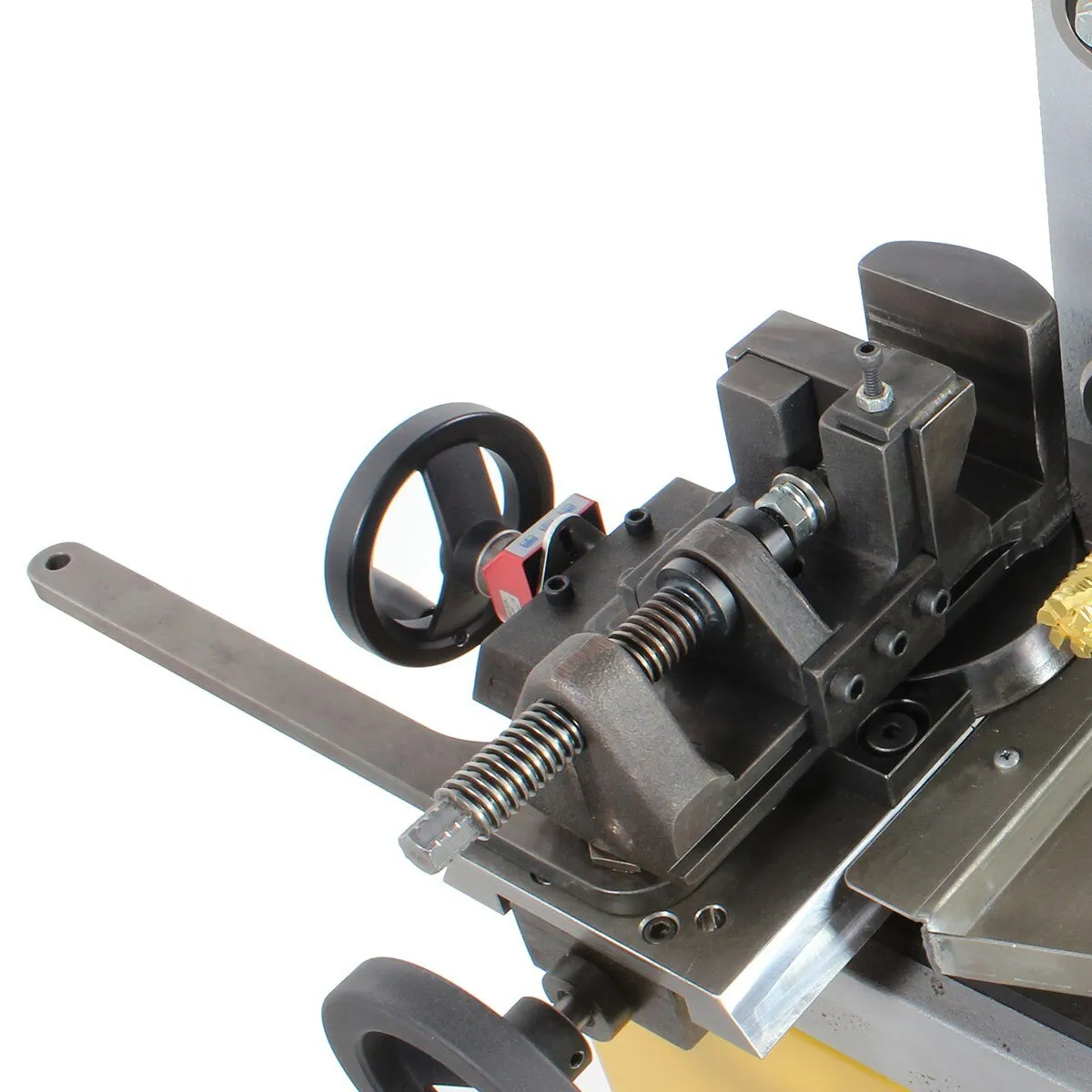

- Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position.

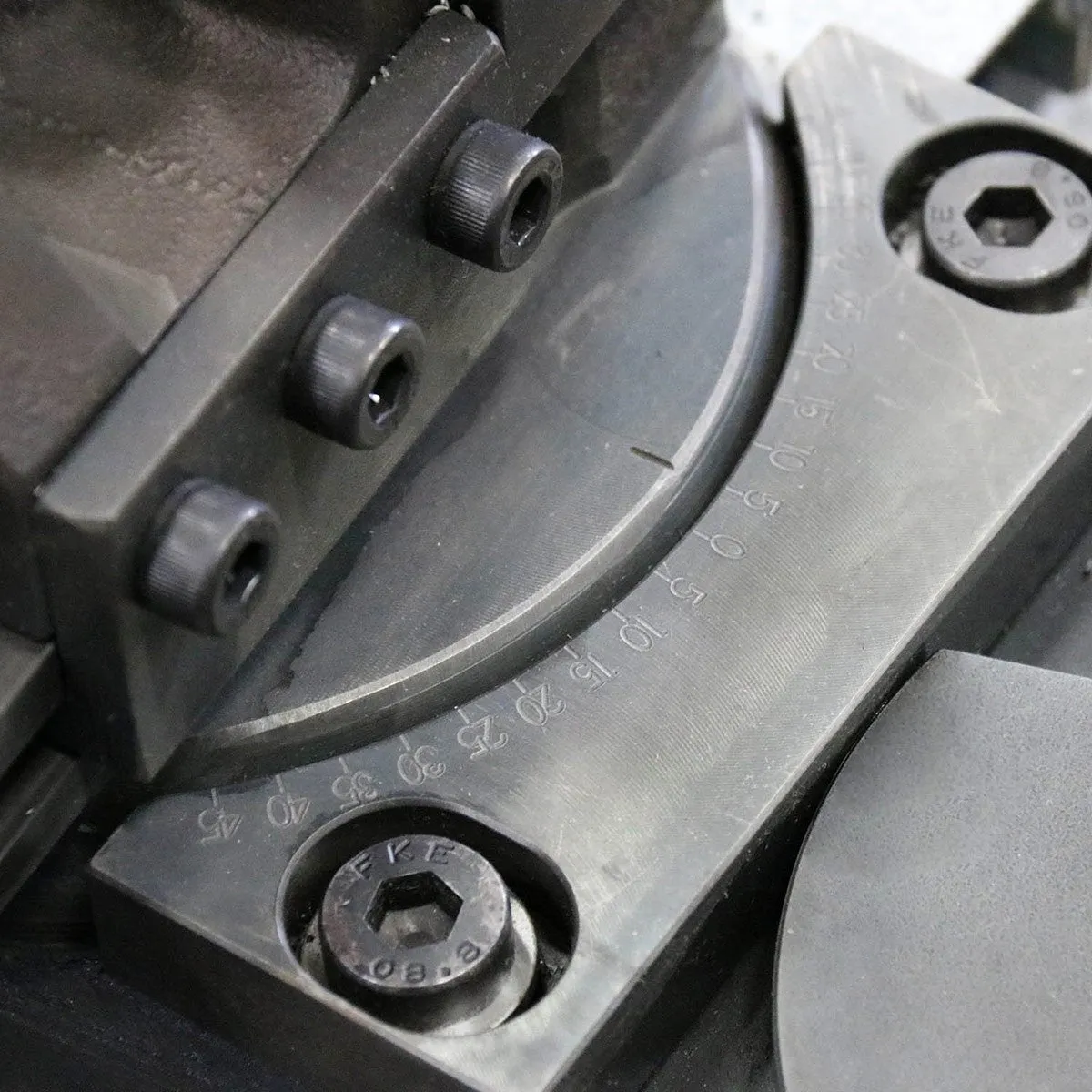

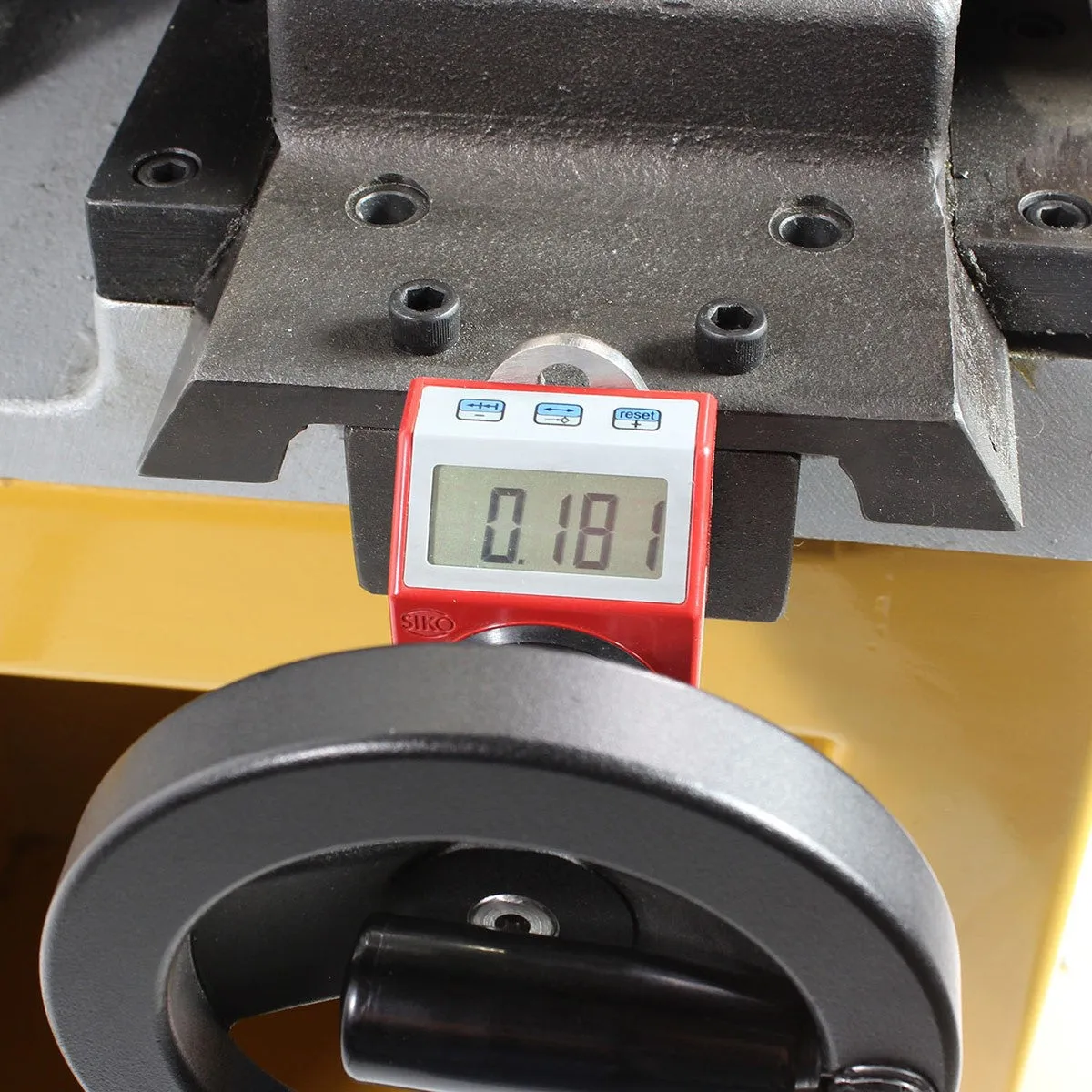

- Degree or angle-finder makes it simple to check the angle and ensure repeatability.
- If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch.
- Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results.
- Includes portable cart with wheels, so that when you’re not using the TN-800 you can roll it out of the way.
- Baileigh covers this end mill tube and pipe notcher with a 1-year parts warranty
Baileigh Industrial 1008060 Specifications
| Motor | 1 HP |
| Mill Speed | 350 RPM |
| Notching Capacity (OD) | .5" (Optional) - 3" |
| Angle Adjustment | 0 – 60° |

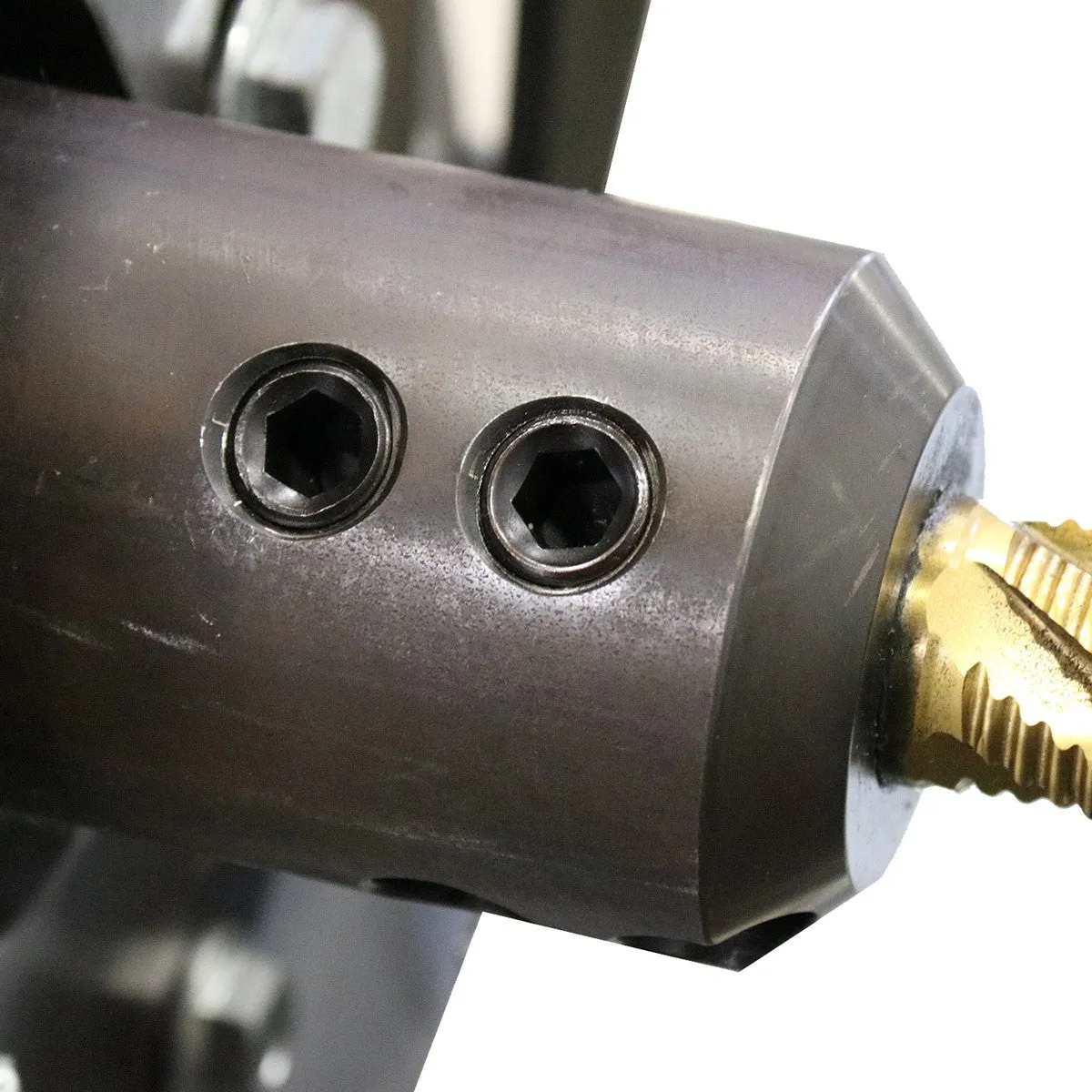

| End Mill Size | 1" Standard / 1/2" Optional |
| Power | 110V |
| Shipping Dimensions | 60" x 44" x 77" |
| Country of Origin | United States |
