Name: 5 Gang Switch Panel | with AC / Usb Outlets
SKU: 781760

Product Details ＋

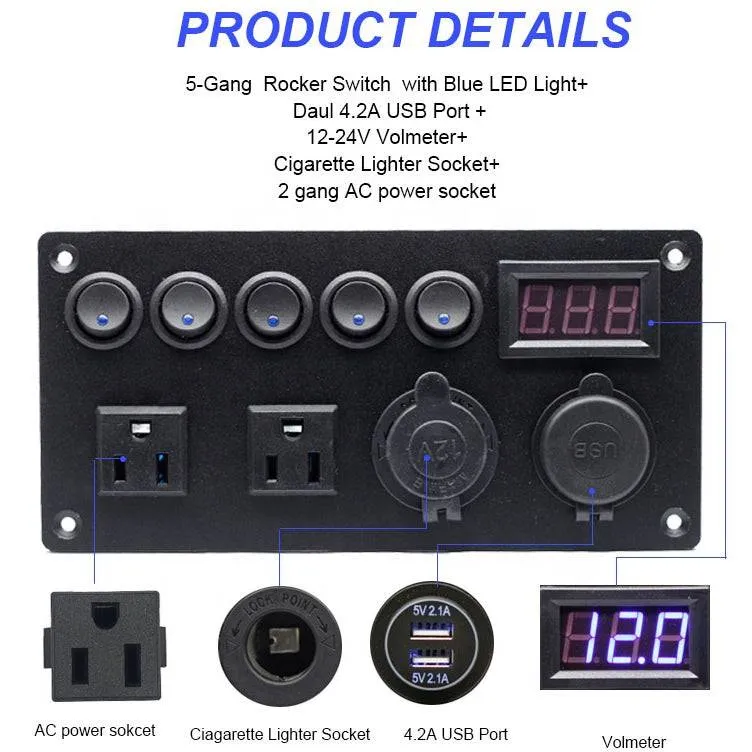

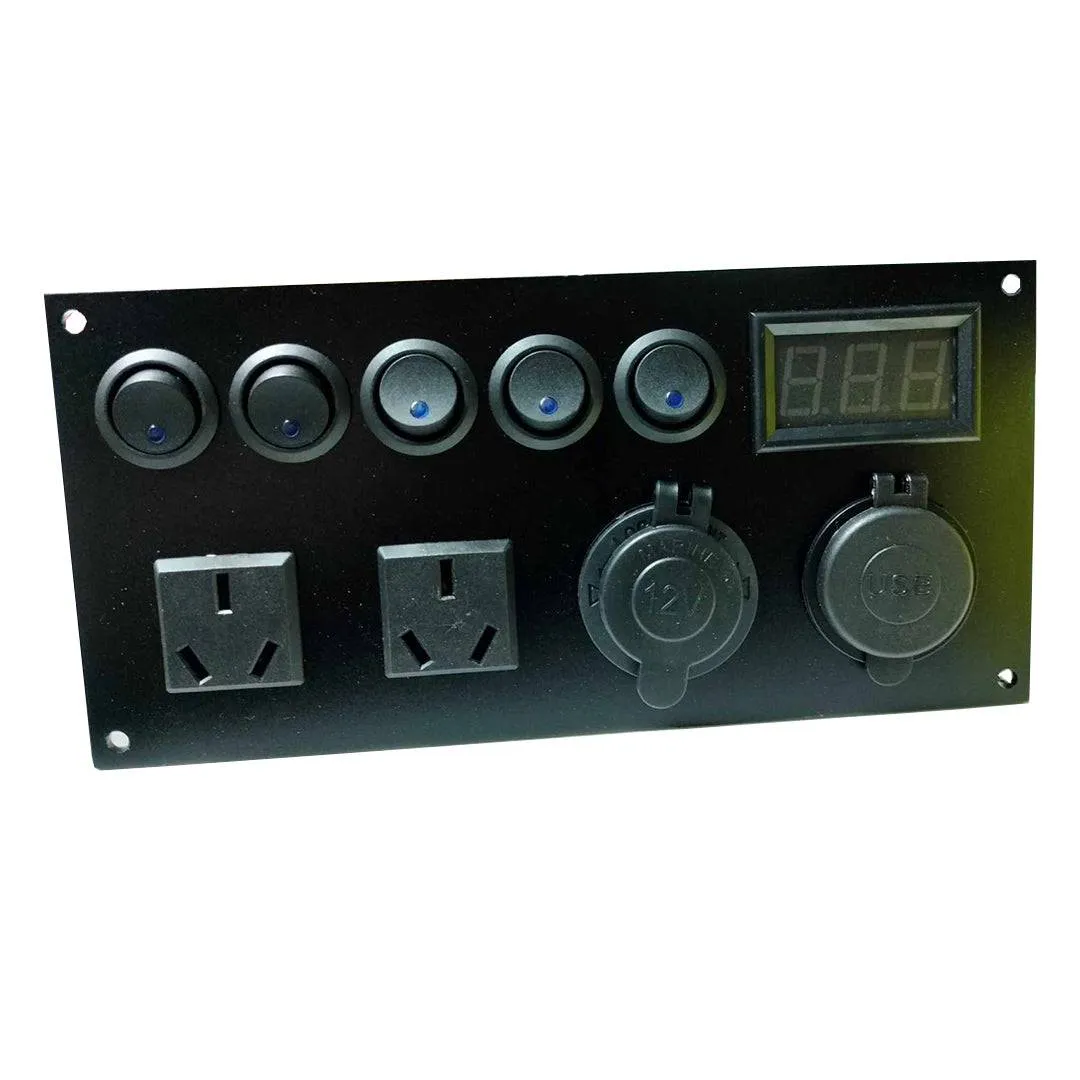

5 Gang Toggle Switch Panel Multi-Functions with AC Outlets

Product Name	5 gang rocker switch panel
Product model	RA-SPA092
Material	ABS
Input Voltage	DC 12-24V
Output Voltage and current	12V 20A/24V 10A
Switch Function	ON-OFF Support custom
Size	as shown
Usage	4X4, Cars, off-road vehicles, RVs, yachts, Caravan, Camper Trailers

Specifications

Color: Black
Material: ABS, Aluminium Plate
Working Voltage: 12V-24V
USB Port Output: DC 5V / 4.2A
Cigarette socket: DC 12V
Voltmeter display range: 0 - 24V
Outlets: AC 125V 15A (Provided with Australian Plug)
Switch Overload Protection: DC 12V - 24V 15A
Operating Temperature: -25 degree to 80 degree

USB socket safety protection:

Overload, over-current and short circuit protection to ensure charging safety, meanwhile, built-in converse connection protection that ensures the circuit won't be burnt out if wrong wiring. 5 Gang LED toggle switches comes with 15A fuse, provide overload, over-current and short circuit protection.
